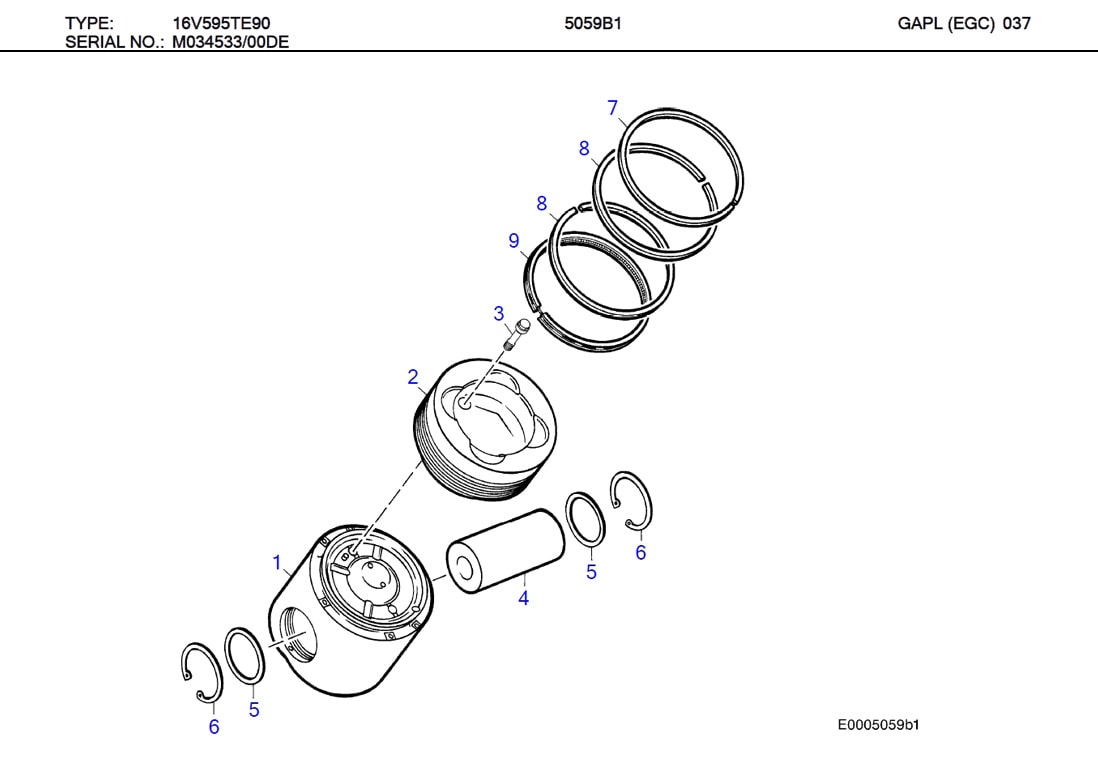

MTU 0090378218 Technical Engineering Exploded View

MTU 0090378218 Technical Engineering Exploded View

MTU 0090378218 Technical Engineering Exploded View

C/N Description Part-Number Qty
000 PUMP TIMING PISTON 5760301817 001
01 PISTON SKIRT 5760300515 001
02 PISTON CROWN 5760372225 001
03 STRESS BOLT 5769900619 002
04 PISTON PIN 5760370020 001
05 COVER DISC 5760370076 002

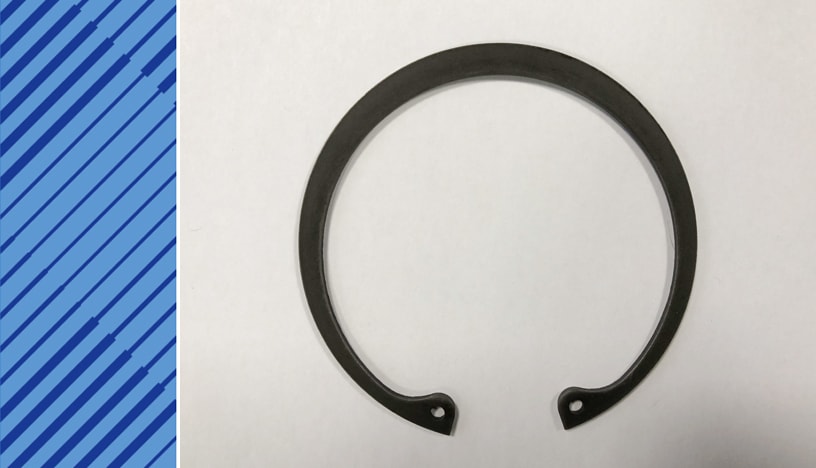

06 SNAP RING 200472082000 002
07 RECTANGULAR-SECTION RING 0080372819 001
08 COMPRESSION RING 0070372419 002
09 OIL CONTROL RING 0090378218 001

MTU 595 Diesel Engine Models & Specifications

MTU 595 TE90 Family

MTU 595 Diesel Engine Models & Specifications

Make Power KW U/MIN Bore/stroke mm (in)
16V 595 TE70 3600 1750 190/210 (7.5/8.3)
16V 595 TE70L 3925 1750 190/210 (7.5/8.3)
12V 595 TE90 3240 1800 190/210 (7.5/8.3)
16V 595 TE90 4320 1800 190/210 (7.5/8.3)
16V 595 TE60 3040 1600 190/210 (7.5/8.3)
16V 595 TE70 3600 1700 190/210 (7.5/8.3)
16V 595 TE70L 3925 1750 190/210 (7.5/8.3)
16V 595 TE80 3925 1750 190/210 (7.5/8.3)
12V 595 TE90 3240 1800 190/210 (7.5/8.3)
16V 595 TE90 4320 1800 190/210 (7.5/8.3)
16V 595 TE50 2640 1500 190/210 (7.5/8.3)
12V 595 TC10 2250 1650 190/210 (7.5/8.3)
16V 595 TC10 3000 1650 190/210 (7.5/8.3)
