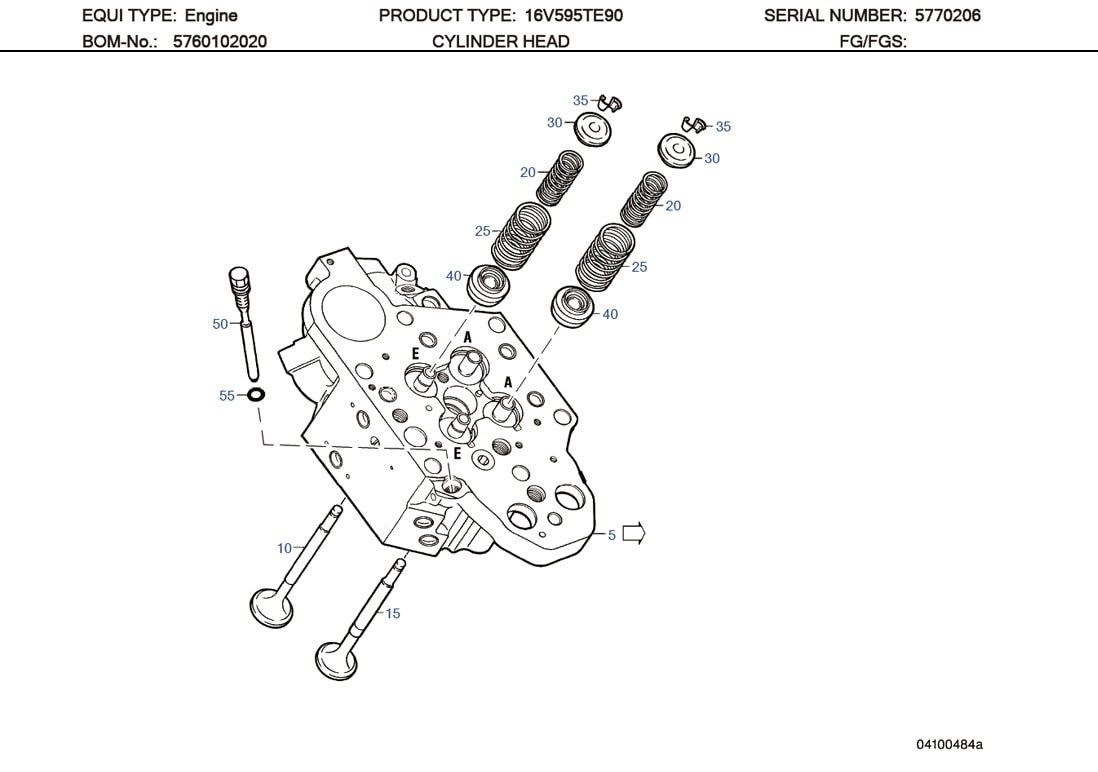

MTU 5700530025 Technical Engineering Exploded View

MTU 5700530025 Technical Engineering Exploded View

MTU 5700530025 Technical Engineering Exploded View

C/N Description Part-Number Qty
5 CYLINDER HEAD 5760101920 016
10 VALVE 5700530001 002
15 VALVE 5700530005 002
20 VALVE SPRING INNER 5760530022 004
25 VALVE SPRING OUTER 5760530020 004

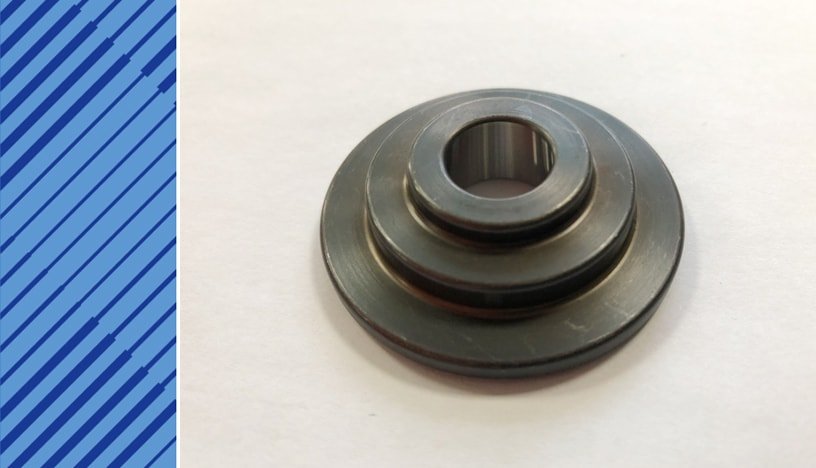

30 SPRING RETAINER 5700530025 004
35 VALVE COLLET 0000530826 008
40 ROTOCAP 0000533735 004
50 SCREW 5760160171 001
55 O-RING 700429017000 001

MTU 595 Diesel Engine Models & Specifications

MTU 595 TE90 Family

MTU 595 Diesel Engine Models & Specifications

Make Power KW U/MIN Bore/stroke mm (in)
16V 595 TE70 3600 1750 190/210 (7.5/8.3)
16V 595 TE70L 3925 1750 190/210 (7.5/8.3)
12V 595 TE90 3240 1800 190/210 (7.5/8.3)
16V 595 TE90 4320 1800 190/210 (7.5/8.3)
16V 595 TE60 3040 1600 190/210 (7.5/8.3)
16V 595 TE70 3600 1700 190/210 (7.5/8.3)
16V 595 TE70L 3925 1750 190/210 (7.5/8.3)
16V 595 TE80 3925 1750 190/210 (7.5/8.3)
12V 595 TE90 3240 1800 190/210 (7.5/8.3)
16V 595 TE90 4320 1800 190/210 (7.5/8.3)
16V 595 TE50 2640 1500 190/210 (7.5/8.3)
12V 595 TC10 2250 1650 190/210 (7.5/8.3)
16V 595 TC10 3000 1650 190/210 (7.5/8.3)
