| PART NUMBER | 5730110180 |
| ENGINE TYPE | MTU 595 ENGINE |
| DESCRIPTION | GASKET |
| DIMENSIONS | N/A |
| UNIT WEIGHT | 0.024 KG |
| HS CODE | 39269097 |
| NATO-VERS.-NR. | 5330124049783 |

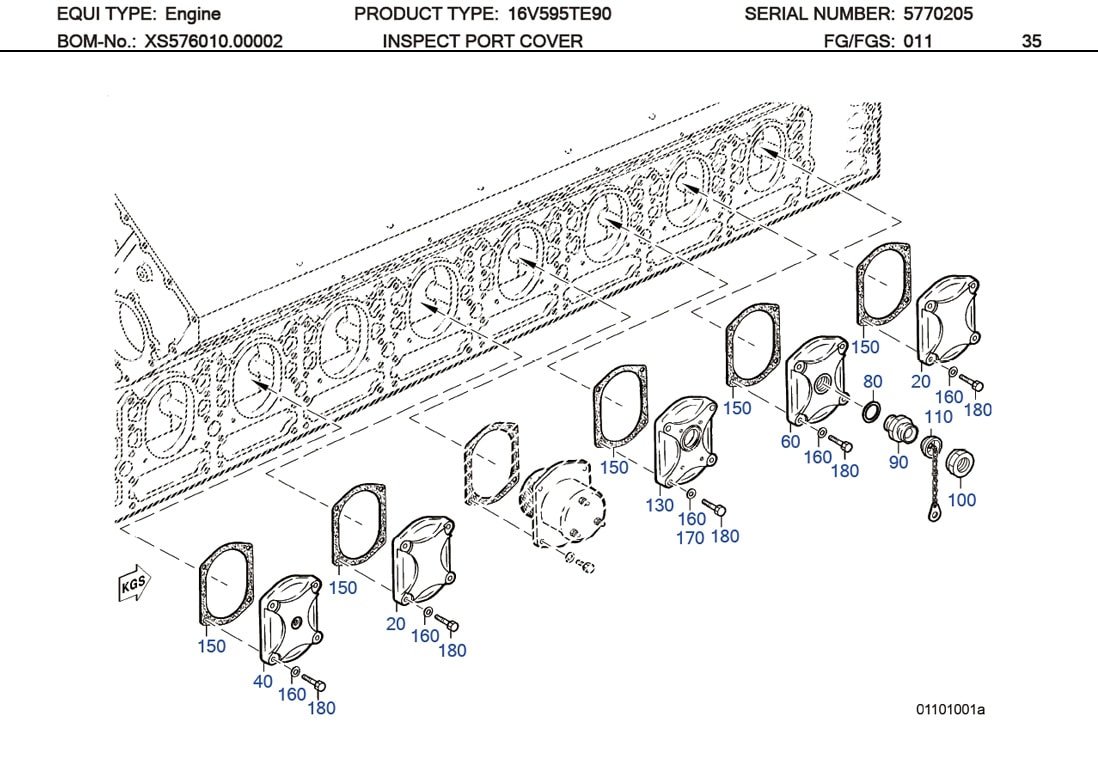

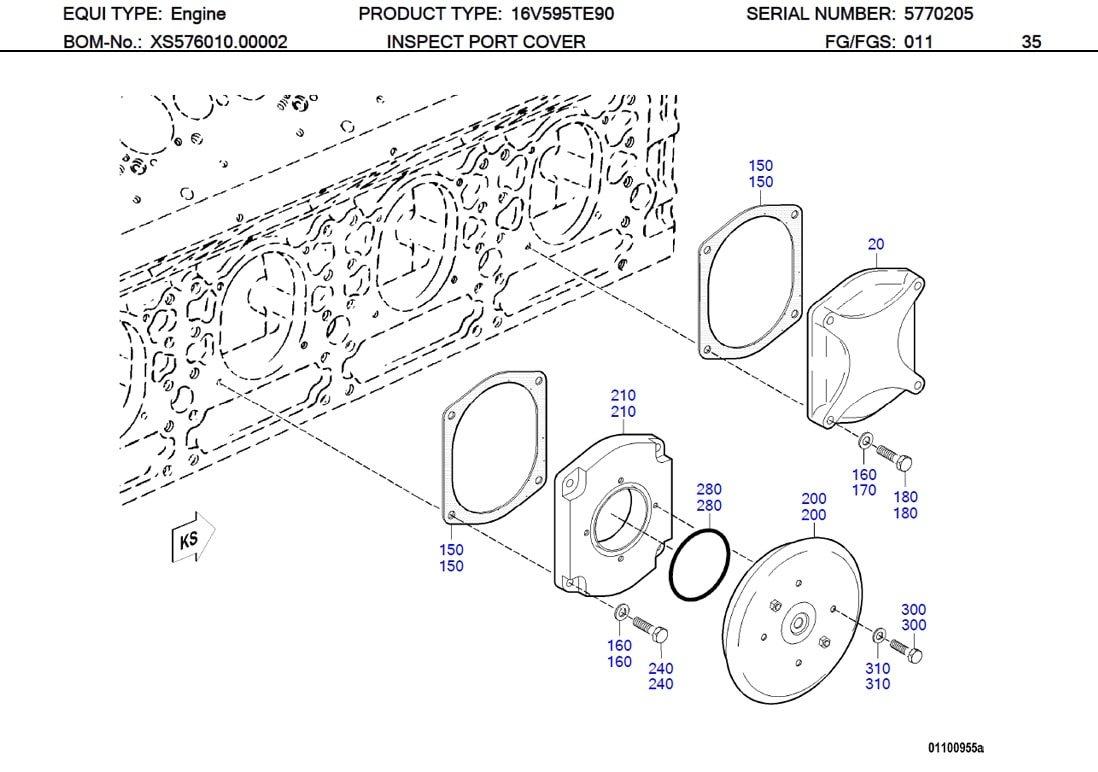

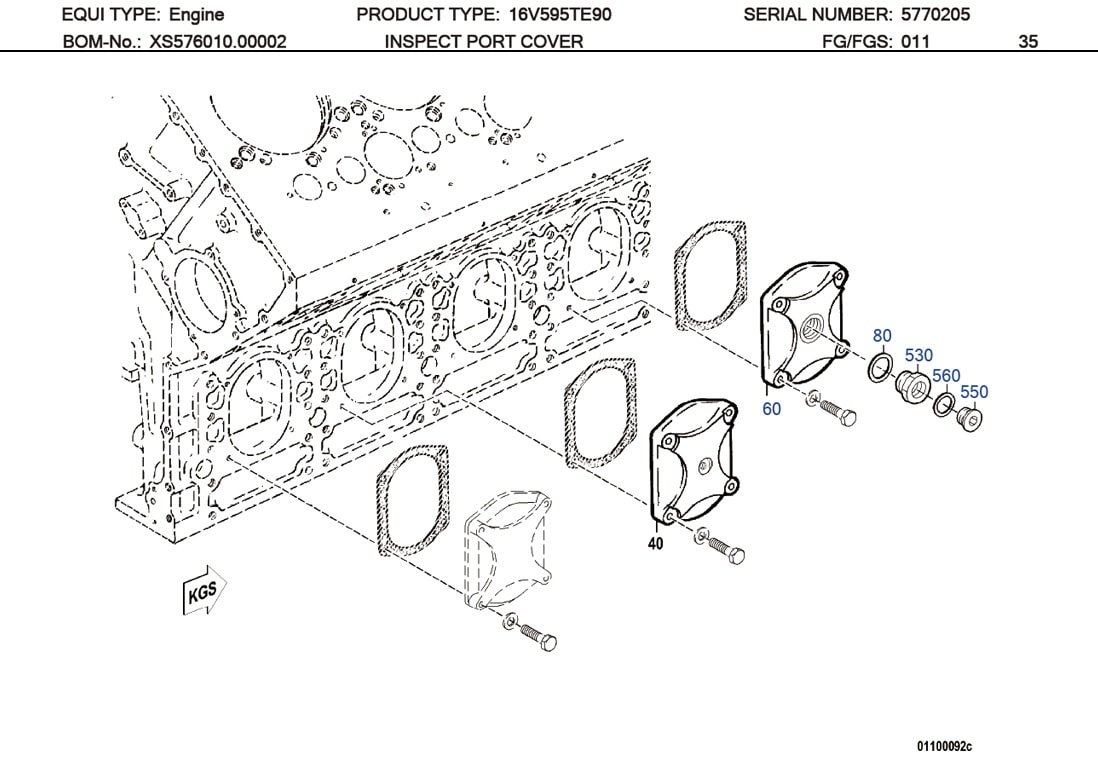

| C/N | Description | Part-Number | Qty |
|---|---|---|---|
| 20 | INSPECT PORT COVER | 5700110432 | 002 |
| 40 | INSPECT PORT COVER | 5700100215 | 001 |
| 60 | INSPECT PORT COVER | 5760110732 | 001 |
| 80 | COPPER SEALING RING | 007603038101 | 001 |
| 90 | UNION | 735070032000 | 001 |
| 100 | NUT | 915001032003 | 001 |
| 110 | CHAIN | 5760100074 | 001 |
| 130 | INSPECT PORT COVER | 5700100015 | 001 |
| 150 | GASKET | 5730110180 | 005 |
| 160 | SPACER | 735151010100 | 019 |
| 170 | WASHER | 000125010524 | 001 |
| 180 | BOLT HEX | 000933010133 | 020 |
| 200 | SAFETY VALVE LR ACCEPTANCE | X58401100013/31 | 001 |
| 210 | INSPECT PORT COVER | X57601100002 | 001 |
| 240 | BOLT HEX | 000933010058 | 004 |
| 280 | O-RING | 700429095004 | 001 |
| 300 | BOLT HEX | 000931008173 | 004 |
| 310 | WASHER | 000125008427 | 004 |
| 530 | THREADED BUSHING | 349777/1 | 001 |
| 550 | PLUG | 000908022001 | 001 |
| 560 | COPPER SEALING RING | 007603022102 | 001 |
| Make | Power KW | U/MIN | Bore/stroke mm (in) |
|---|---|---|---|
| 16V 595 TE70 | 3600 | 1750 | 190/210 (7.5/8.3) |
| 16V 595 TE70L | 3925 | 1750 | 190/210 (7.5/8.3) |
| 12V 595 TE90 | 3240 | 1800 | 190/210 (7.5/8.3) |
| 16V 595 TE90 | 4320 | 1800 | 190/210 (7.5/8.3) |
| 16V 595 TE60 | 3040 | 1600 | 190/210 (7.5/8.3) |
| 16V 595 TE70 | 3600 | 1700 | 190/210 (7.5/8.3) |
| 16V 595 TE70L | 3925 | 1750 | 190/210 (7.5/8.3) |
| 16V 595 TE80 | 3925 | 1750 | 190/210 (7.5/8.3) |
| 12V 595 TE90 | 3240 | 1800 | 190/210 (7.5/8.3) |
| 16V 595 TE90 | 4320 | 1800 | 190/210 (7.5/8.3) |
| 16V 595 TE50 | 2640 | 1500 | 190/210 (7.5/8.3) |
| 12V 595 TC10 | 2250 | 1650 | 190/210 (7.5/8.3) |
| 16V 595 TC10 | 3000 | 1650 | 190/210 (7.5/8.3) |
