MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Install drawings
  • original parts

MTU 5760550450 Technical Engineering Exploded View

MTU 5760550450 Technical Engineering Exploded View

MTU 5760550450 Technical Engineering Exploded View

C/N Description Part-Number Qty
5 ROCKER ARM EXHAUST 5760550303 001

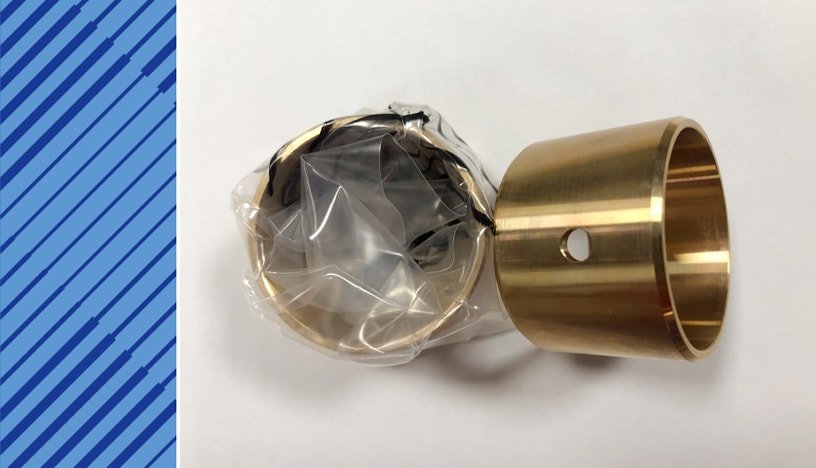

10 BUSHING 5760550450 001
15 BUSHING 5760550350 001
25 PLUG 735073004001 001

MTU 595 Diesel Engine Models & Specifications

MTU 595 TE90 Family

MTU 595 Diesel Engine Models & Specifications

Make Power KW U/MIN Bore/stroke mm (in)
16V 595 TE70 3600 1750 190/210 (7.5/8.3)
16V 595 TE70L 3925 1750 190/210 (7.5/8.3)
12V 595 TE90 3240 1800 190/210 (7.5/8.3)
16V 595 TE90 4320 1800 190/210 (7.5/8.3)
16V 595 TE60 3040 1600 190/210 (7.5/8.3)
16V 595 TE70 3600 1700 190/210 (7.5/8.3)
16V 595 TE70L 3925 1750 190/210 (7.5/8.3)
16V 595 TE80 3925 1750 190/210 (7.5/8.3)
12V 595 TE90 3240 1800 190/210 (7.5/8.3)
16V 595 TE90 4320 1800 190/210 (7.5/8.3)
16V 595 TE50 2640 1500 190/210 (7.5/8.3)
12V 595 TC10 2250 1650 190/210 (7.5/8.3)
16V 595 TC10 3000 1650 190/210 (7.5/8.3)
