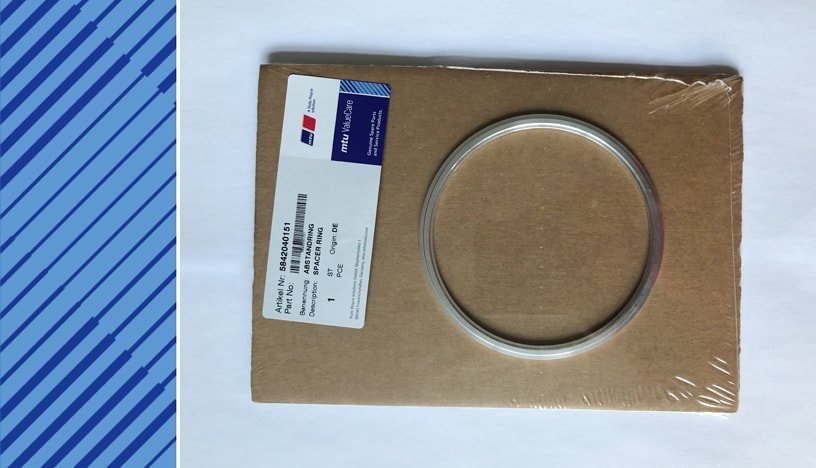

| PART NUMBER | 5842040151 |
| ENGINE TYPE | MTU 595 ENGINE |
| DESCRIPTION | SPACER RING |
| DIMENSIONS | N/A |
| UNIT WEIGHT | 0.009 KG |
| HS CODE | 76169990 |
| NATO-VERS.-NR. | 5365123349102 |

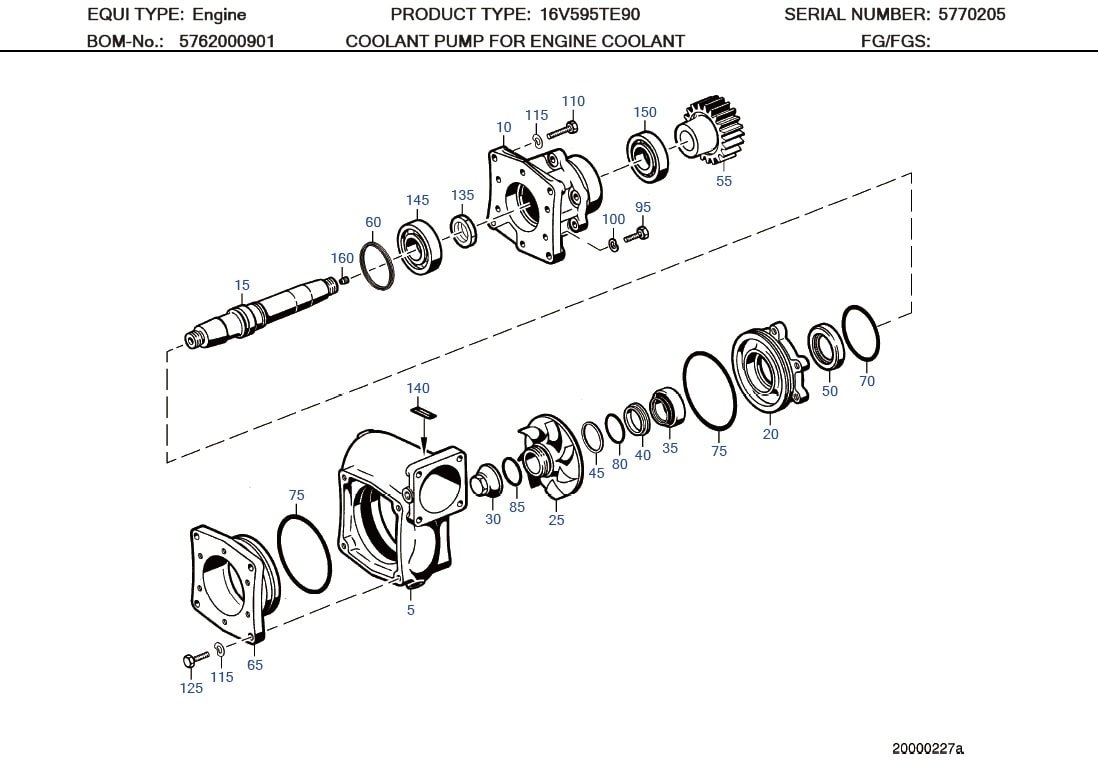

| C/N | Description | Part-Number | Qty |
|---|---|---|---|
| 5 | SPIRAL HOUSING | 5802010801 | 001 |
| 10 | BEARING HOUSING | 5842040219 | 001 |
| 15 | SHAFT | 5842040714 | 001 |
| 20 | SEAL CARRIER | 5762010158 | 001 |
| 25 | IMPELLER F. CLNT PP CCW ENG | 5802040906 | 001 |
| 30 | NUT | 5802040172 | 001 |
| 35 | ROTARY SEAL | 0002018319 | 001 |
| 40 | COUNTERRING | 0002011363 | 001 |
| 45 | SPACER RING | 5842040551 | 001 |
| 50 | RADIAL-LIP SHFT SEAL | 0199977747 | 001 |
| 55 | DRIVE GEAR | 5702020012 | 001 |
| 60 | SPACER RING | 5842040151 | 001 |
| 65 | INLET NECK | 5802010330 | 001 |
| 70 | O-RING | 700429100000 | 001 |
| 75 | O-RING | 700429150001 | 002 |
| 80 | O-RING | 700429056001 | 001 |
| 85 | O-RING | 700429045000 | 001 |
| 95 | HEX BOLT | 000933010093 | 006 |
| 100 | WASHER SPRING B10 | 000137010202 | 006 |
| 110 | BOLT HEX | 000933012093 | 004 |
| 115 | WASHER SPRING B12 | 000137012202 | 004 |
| 125 | BOLT HEX | 000933012077 | 004 |
| 135 | NUT | 5849900851 | 001 |
| 140 | PLATE | 700425000110 | 001 |
| 145 | ANGL CONT BALL BRG | 0019813727 | 001 |
| 150 | CYL. ROLLER BEARING | 205412223002 | 001 |
| 160 | GRUB SCREW | 5769970119 | 001 |
| Make | Power KW | U/MIN | Bore/stroke mm (in) |
|---|---|---|---|
| 16V 595 TE70 | 3600 | 1750 | 190/210 (7.5/8.3) |
| 16V 595 TE70L | 3925 | 1750 | 190/210 (7.5/8.3) |
| 12V 595 TE90 | 3240 | 1800 | 190/210 (7.5/8.3) |
| 16V 595 TE90 | 4320 | 1800 | 190/210 (7.5/8.3) |
| 16V 595 TE60 | 3040 | 1600 | 190/210 (7.5/8.3) |
| 16V 595 TE70 | 3600 | 1700 | 190/210 (7.5/8.3) |
| 16V 595 TE70L | 3925 | 1750 | 190/210 (7.5/8.3) |
| 16V 595 TE80 | 3925 | 1750 | 190/210 (7.5/8.3) |
| 12V 595 TE90 | 3240 | 1800 | 190/210 (7.5/8.3) |
| 16V 595 TE90 | 4320 | 1800 | 190/210 (7.5/8.3) |
| 16V 595 TE50 | 2640 | 1500 | 190/210 (7.5/8.3) |
| 12V 595 TC10 | 2250 | 1650 | 190/210 (7.5/8.3) |
| 16V 595 TC10 | 3000 | 1650 | 190/210 (7.5/8.3) |
