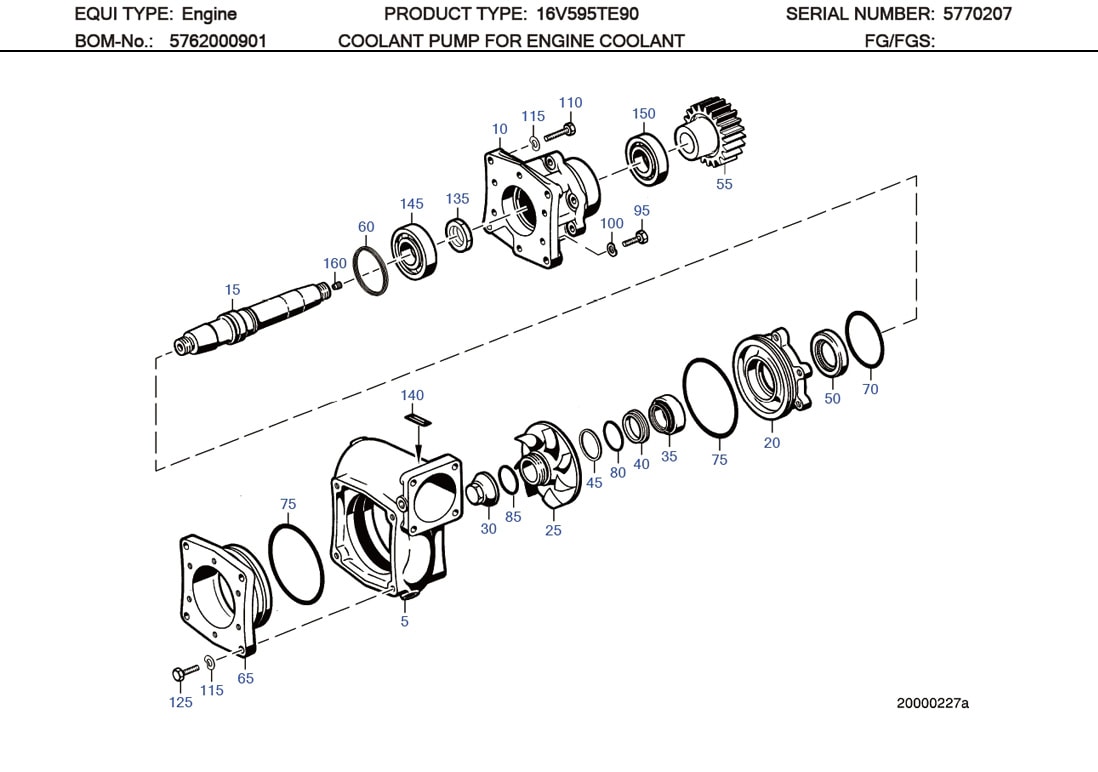

MTU 5842040551 Technical Engineering Exploded View

MTU 5842040551 Technical Engineering Exploded View

MTU 5842040551 Technical Engineering Exploded View

C/N Description Part-Number Qty
5 SPIRAL HOUSING 5802010801 001
10 BEARING HOUSING 5842040219 001
15 SHAFT 5842040714 001
20 SEAL CARRIER 5762010158 001
25 IMPELLER F. CLNT PP CCW ENG 5802040906 001
30 NUT 5802040172 001
35 ROTARY SEAL 0002018319 001
40 COUNTERRING 0002011363 001
45 SPACER RING 5842040551 001
50 RADIAL-LIP SHFT SEAL 0199977747 001
55 DRIVE GEAR 5702020012 001
60 SPACER RING 5842040151 001
65 INLET NECK 5802010330 001
70 O-RING 700429100000 001
75 O-RING 700429150001 002
80 O-RING 700429056001 001
85 O-RING 700429045000 001
95 HEX BOLT 000933010093 006
100 WASHER SPRING B10 000137010202 006
110 BOLT HEX 000933012093 004
115 WASHER SPRING B12 000137012202 004
125 BOLT HEX 000933012077 004
135 NUT 5849900851 001
140 PLATE 700425000110 001
145 ANGL CONT BALL BRG 0019813727 001
150 CYL. ROLLER BEARING 205412223002 001
160 GRUB SCREW 5769970119 001

5842040551 SUPERSEDED PART AND EFFECTIVE DATE

5842040551 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 5842040551 5842040251 N/A
02 5842040551 5842040551 1999/01/01

MTU 595 Diesel Engine Models & Specifications

MTU 595 TE90 Family

MTU 595 Diesel Engine Models & Specifications

Make Power KW U/MIN Bore/stroke mm (in)
16V 595 TE70 3600 1750 190/210 (7.5/8.3)
16V 595 TE70L 3925 1750 190/210 (7.5/8.3)
12V 595 TE90 3240 1800 190/210 (7.5/8.3)
16V 595 TE90 4320 1800 190/210 (7.5/8.3)
16V 595 TE60 3040 1600 190/210 (7.5/8.3)
16V 595 TE70 3600 1700 190/210 (7.5/8.3)
16V 595 TE70L 3925 1750 190/210 (7.5/8.3)
16V 595 TE80 3925 1750 190/210 (7.5/8.3)
12V 595 TE90 3240 1800 190/210 (7.5/8.3)
16V 595 TE90 4320 1800 190/210 (7.5/8.3)
16V 595 TE50 2640 1500 190/210 (7.5/8.3)
12V 595 TC10 2250 1650 190/210 (7.5/8.3)
16V 595 TC10 3000 1650 190/210 (7.5/8.3)
