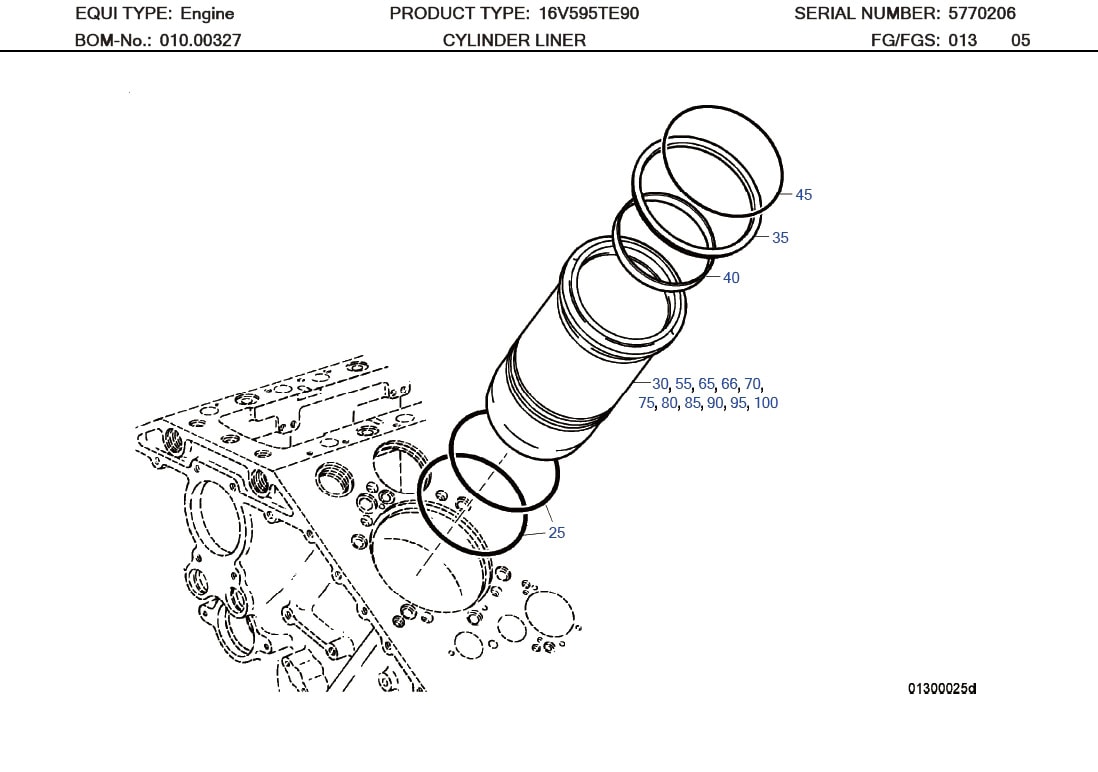

MTU 5760110059 Technical Engineering Exploded View

MTU 5760110059 Technical Engineering Exploded View

MTU 5760110059 Technical Engineering Exploded View

C/N Description Part-Number Qty

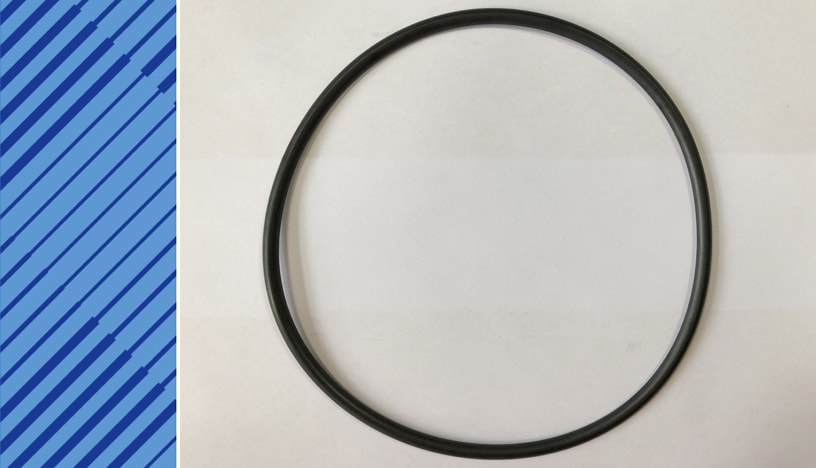

25 SEALING RING 5760110059 032
30 CYLINDER LINER X57601300002 016
35 SEALING RING 5760160419 016
40 CARBON SCRAPER RING 5760110159 016
45 O-RING 700429210000 016
55 CYLINDER LINER SIZE 1 X57601300003 001
65 CYLINDER LINER SIZE 2 X57601300004 001
66 CYLINDER LINER SIZE 3 X57601300020 001
70 CYLINDER LINER SIZE 1-0 X57601300006 001
75 CYLINDER LINER SIZE 2-0 X57701300004 001
80 CYLINDER LINER SIZE 3-0 X57601300005 001
85 CYLINDER LINER SIZE 4-0 X57601300014 001
90 CYLINDER LINER SIZE 4-1 X57601300019 001
95 CYLINDER LINER SIZE 5-0 X57601300022 001
100 CYLINDER LINER SIZE 5-1 X57601300023 001

5760110059 SUPERSEDED PART AND EFFECTIVE DATE

5760110059 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 5760110059 5700110159 N/A
02 5760110059 5760110059 1994/08/01

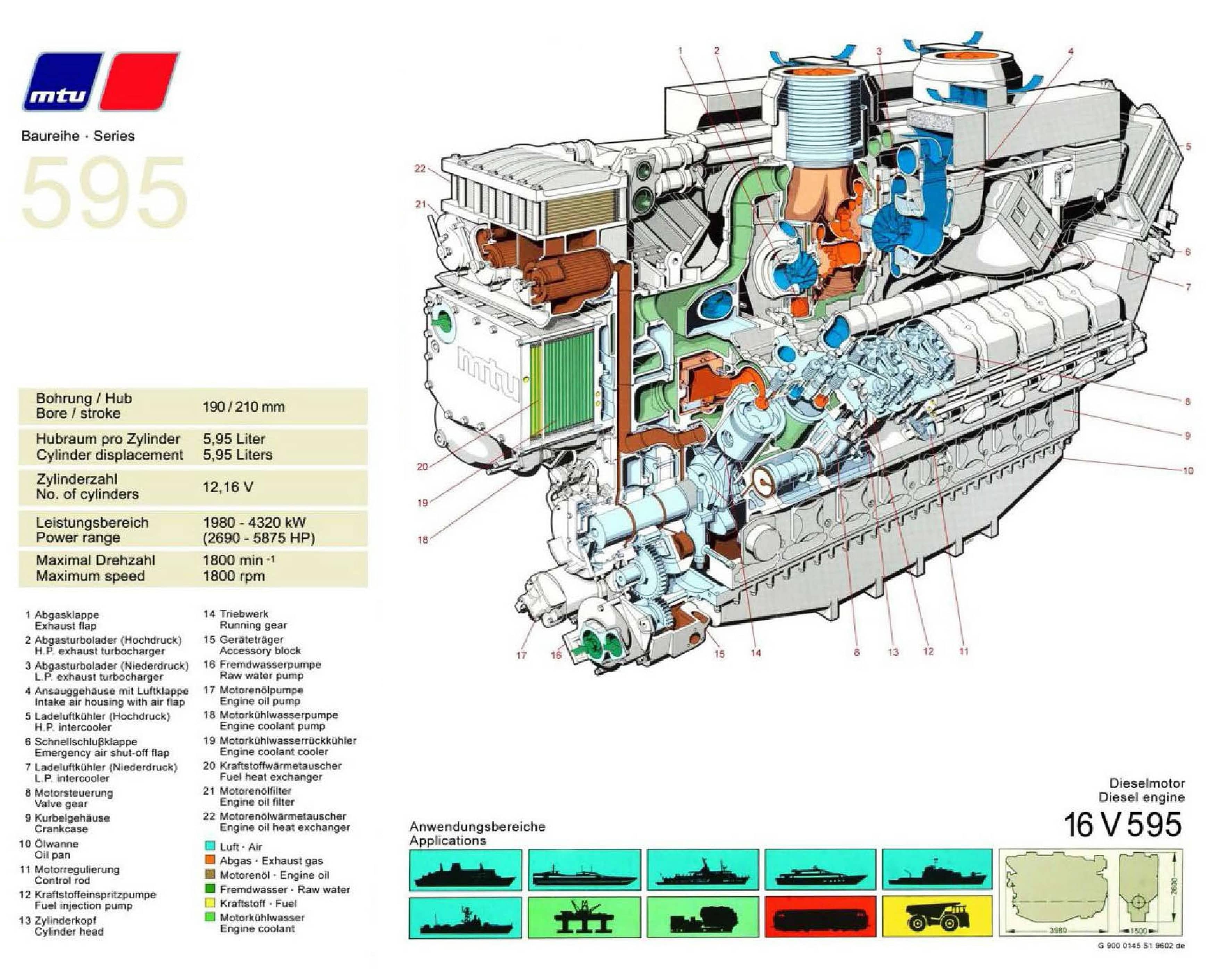

MTU 595 Diesel Engine Models & Specifications

MTU 595 TE90 Family

MTU 595 Diesel Engine Models & Specifications

Make Power KW U/MIN Bore/stroke mm (in)
16V 595 TE70 3600 1750 190/210 (7.5/8.3)
16V 595 TE70L 3925 1750 190/210 (7.5/8.3)
12V 595 TE90 3240 1800 190/210 (7.5/8.3)
16V 595 TE90 4320 1800 190/210 (7.5/8.3)
16V 595 TE60 3040 1600 190/210 (7.5/8.3)
16V 595 TE70 3600 1700 190/210 (7.5/8.3)
16V 595 TE70L 3925 1750 190/210 (7.5/8.3)
16V 595 TE80 3925 1750 190/210 (7.5/8.3)
12V 595 TE90 3240 1800 190/210 (7.5/8.3)
16V 595 TE90 4320 1800 190/210 (7.5/8.3)
16V 595 TE50 2640 1500 190/210 (7.5/8.3)
12V 595 TC10 2250 1650 190/210 (7.5/8.3)
16V 595 TC10 3000 1650 190/210 (7.5/8.3)
