MTU 5760540532 Technical Engineering Exploded View

MTU 5760540532 Technical Engineering Exploded View

MTU 5760540532 Technical Engineering Exploded View

C/N Description Part-Number Qty
10 CRANKCASE 5770110701 016
15 OIL PIPE 5770110024 001
20 BEARING CAP 5700110112 009
30 BEARING CAP 5700110212 001
35 STUD 5760110070 018
40 NUT F/CRANKSHFT BEARING 5760110072 018
45 SCREW 5769900119 018
50 END SHIELD MAIN PTO END 5730110007 001
55 CENTERING FLANGE AUX PTO END 5760150145 001
65 DOWEL PIN 000007014105 002
75 DOWEL PIN 000007016106 002
80 BEARING BUSHING SIZE 0-0 5700521350 003
85 BEARING BUSHING SIZE 0-0 5700521450 003
90 BEARING BUSHING SIZE 0-0 5760521650 001
95 BEARING BUSHING SIZE 0-0 5760521750 001
100 BEARING BUSHING SIZE 0-0 5700520650 004
105 BEARING BUSHING SIZE 0-0 5700520750 004
110 GUIDE BUSHING SIZE 0 5700540132 032

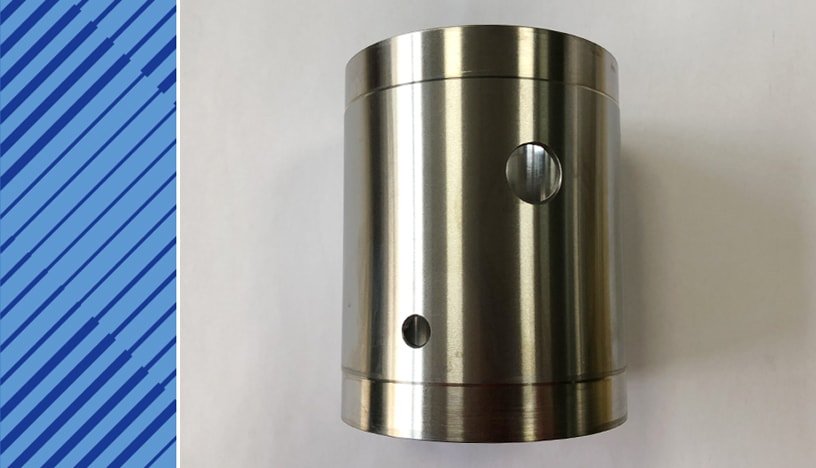

115 GUIDE BUSHING SIZE 0 5760540532 016
120 BUSHING 5700510150 020
130 BEARING BUSHING 5760522250 001
135 BEARING BUSHING 5760522350 001
140 BEARING BUSHING SIZE 1-0G 5760521850 001
145 BEARING BUSHING SIZE 1-0 5760521950 001
150 BEARING BUSHING SIZE 1-0 5760521150 001
155 BEARING BUSHING SIZE 1-0 5760521250 001
160 GUIDE BUSHING SIZE 1 5700540232 001
165 GUIDE BUSHING SIZE 1 5760540632 001
170 BUSHING 5700510250 001
180 BEARING BUSHING 5760522450 001
185 BEARING BUSHING 5760522550 001
190 BEARING BUSHING SIZE 2-0 5760522050 001
195 BEARING BUSHING SIZE 2-0 5760522150 001
200 BEARING BUSHING SIZE 2-0 5760521350 001
205 BEARING BUSHING SIZE 2-0 5760521450 001
210 GUIDE BUSHING SIZE 2 5700540332 001
215 GUIDE BUSHING SIZE 2 5760540732 001
220 BUSHING 5700510350 001
230 LOCATING PIN 5800110274 009
240 PLUG ROD 700248016000 001
250 PLUG ROD 700248020000 001
275 SEALING CAP EXH MANIF 5550160233 032
285 PLUG 000908036007 003
290 WASHER A COP 007603036101 002
360 PLUG 5760100081 018
305 WASHER A COP 007603064100 018
315 BUSHING 001
325 OIL PIPE 5760110224 016

5760540532 SUPERSEDED PART AND EFFECTIVE DATE

5760540532 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 5760540532 5760540132 N/A
02 5760540532 5760540532 1992/04/01

MTU 595 Diesel Engine Models & Specifications

MTU 595 TE90 Family

MTU 595 Diesel Engine Models & Specifications

Make Power KW U/MIN Bore/stroke mm (in)
16V 595 TE70 3600 1750 190/210 (7.5/8.3)
16V 595 TE70L 3925 1750 190/210 (7.5/8.3)
12V 595 TE90 3240 1800 190/210 (7.5/8.3)
16V 595 TE90 4320 1800 190/210 (7.5/8.3)
16V 595 TE60 3040 1600 190/210 (7.5/8.3)
16V 595 TE70 3600 1700 190/210 (7.5/8.3)
16V 595 TE70L 3925 1750 190/210 (7.5/8.3)
16V 595 TE80 3925 1750 190/210 (7.5/8.3)
12V 595 TE90 3240 1800 190/210 (7.5/8.3)
16V 595 TE90 4320 1800 190/210 (7.5/8.3)
16V 595 TE50 2640 1500 190/210 (7.5/8.3)
12V 595 TC10 2250 1650 190/210 (7.5/8.3)
16V 595 TC10 3000 1650 190/210 (7.5/8.3)
