| PART NUMBER | 0229978348 |
| ENGINE TYPE | MTU 595 ENGINE |
| DESCRIPTION | SEALING RING |
| DIMENSIONS | N/A |
| UNIT WEIGHT | 0.003 KG |
| HS CODE | 73182900 |
| NATO-VERS.-NR. | 5330123774674 |

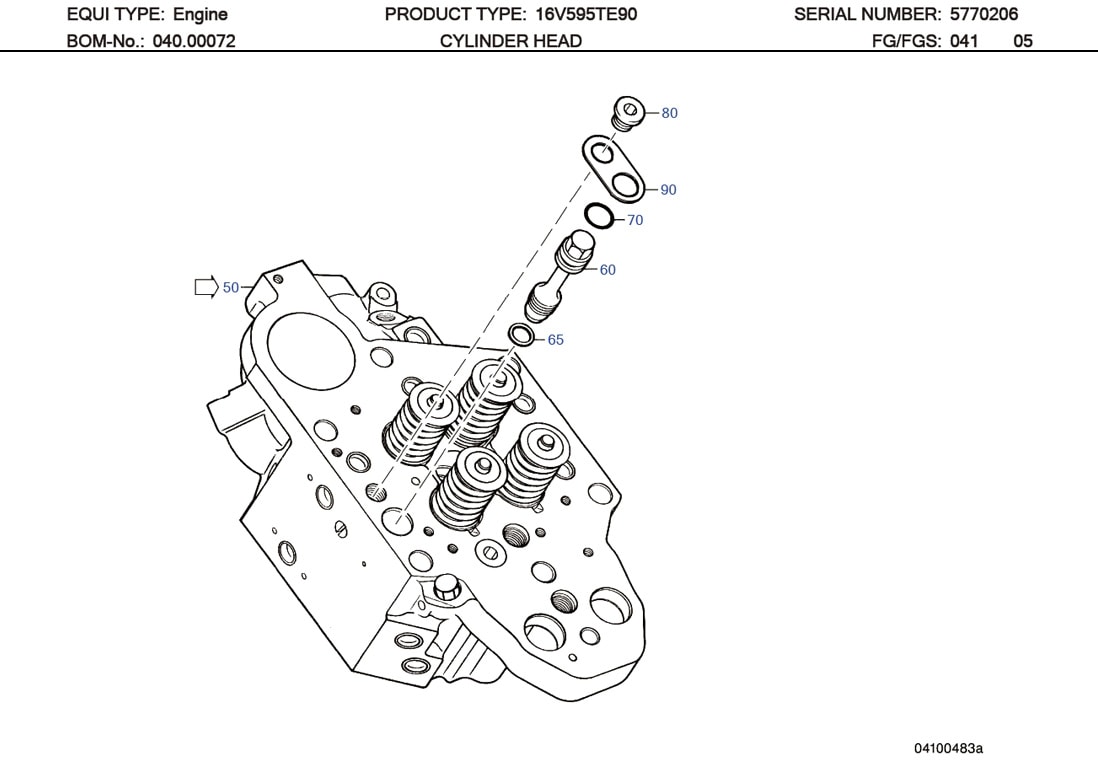

| C/N | Description | Part-Number | Qty |
|---|---|---|---|
| 50 | CYLINDER HEAD | 5760102020 | 016 |
| 60 | PLUG | 5760160071 | 008 |
| 65 | SEALING RING | 5709970144 | 008 |
| 70 | O-RING | 700429021000 | 008 |
| 80 | PLUG | 000908020000 | 008 |
| 90 | TAB WASHER | 5769940030 | 008 |
| 100 | SLEEVE | 135A45008/2 | 080 |
| 105 | SEALING RING | 0229978348 | 080 |
| 110 | O-RING | 700429028001 | 016 |
| 120 | PLUG-IN PIPE | 5760110153 | 014 |
| 125 | O-RING | 700429011002 | 028 |
| 135 | PLUG-IN PIPE | 5761805127 | 002 |
| 150 | THRUST WASHER | 5760110062 | 096 |
| 155 | SCREW | 5769900004 | 096 |
| 160 | O-RING | 700429024002 | 096 |
| 170 | THREAD PLUG | 000908012003 | 001 |
| 175 | COPPER SEALING RING | 007603012111 | 001 |
| Make | Power KW | U/MIN | Bore/stroke mm (in) |
|---|---|---|---|
| 16V 595 TE70 | 3600 | 1750 | 190/210 (7.5/8.3) |
| 16V 595 TE70L | 3925 | 1750 | 190/210 (7.5/8.3) |
| 12V 595 TE90 | 3240 | 1800 | 190/210 (7.5/8.3) |
| 16V 595 TE90 | 4320 | 1800 | 190/210 (7.5/8.3) |
| 16V 595 TE60 | 3040 | 1600 | 190/210 (7.5/8.3) |
| 16V 595 TE70 | 3600 | 1700 | 190/210 (7.5/8.3) |
| 16V 595 TE70L | 3925 | 1750 | 190/210 (7.5/8.3) |
| 16V 595 TE80 | 3925 | 1750 | 190/210 (7.5/8.3) |
| 12V 595 TE90 | 3240 | 1800 | 190/210 (7.5/8.3) |
| 16V 595 TE90 | 4320 | 1800 | 190/210 (7.5/8.3) |
| 16V 595 TE50 | 2640 | 1500 | 190/210 (7.5/8.3) |
| 12V 595 TC10 | 2250 | 1650 | 190/210 (7.5/8.3) |
| 16V 595 TC10 | 3000 | 1650 | 190/210 (7.5/8.3) |
