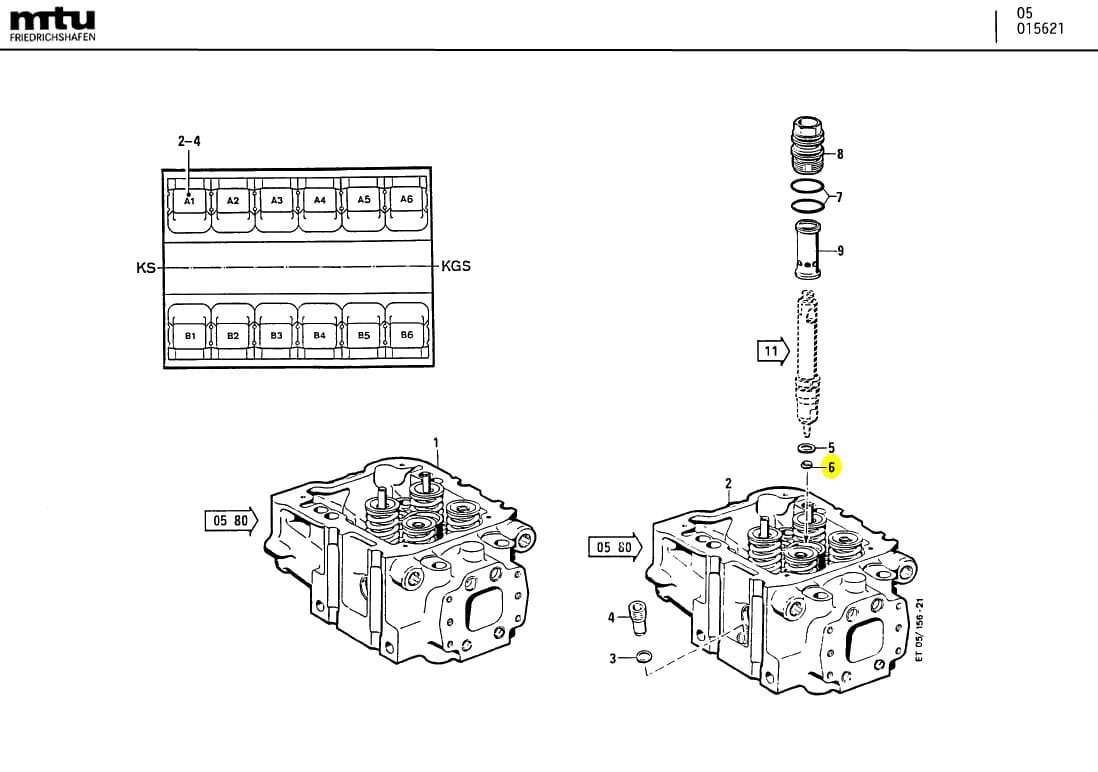

C/N | Description | Part-Number | Qty |
---|---|---|---|
01 | CYLINDER HEAD W/VALVE | 5550106821 | 01 |
02 | CYLINDER HEAD W/VALVE | 5550109121 | 00 |
03 | SEALING RING | 5559970344 | 01 |
04 | PLUG | 5550160071 | 01 |
05 | SUPPORT RING | 5500170260 | 12 |

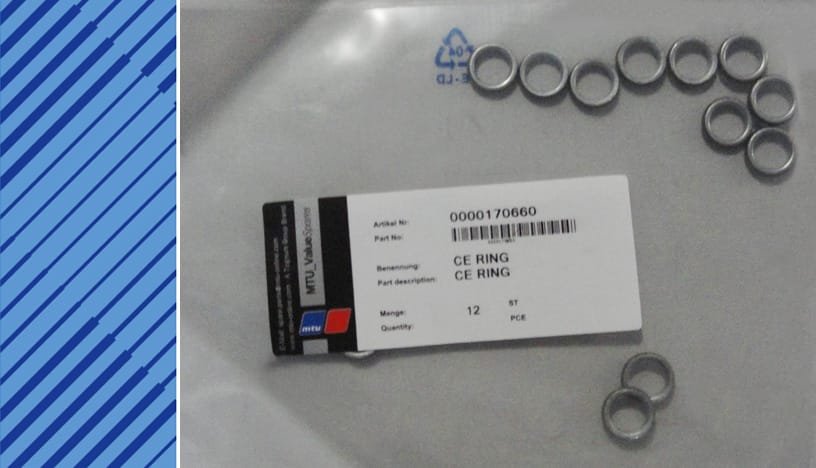

06 | RING | 0000170660 | 12 |
07 | O-RING | 700429033000 | 24 |
08 | THRUST SCREW | 5550170013 | 12 |
09 | PRESSURE SLEEVE | 5550170553 | 12 |
Make | Year of construction | Power KW | U/MIN |
---|---|---|---|
12V 396 TC54 | N/A | 1125 | 1800 |
12V 396 TC54 | N/A | 1310 | 1800 |
12V 396 TC64 | N/A | 960 | 1600 |
12V 396 TE64 | N/A | 1020 | 1600 |
12V 396 TE74 | N/A | 1500 | 1900 |
12V 396 TE74L | N/A | 1500 | 1900 |
12V 396 TE74L | N/A | 1500 | 1800 |
12V 396 TE84 | N/A | 1500 | 1900 |
12V 396 TE94 | N/A | 1680 | 2000 |
12V 396 TB94 | N/A | 1920 | 2100 |
