| PART NUMBER | 5501800016 |
| ENGINE TYPE | MTU 396 ENGINE |
| DESCRIPTION | OIL FILTER ELEMENT |
| DIMENSIONS | N/A |
| UNIT WEIGHT | 0.658 KG |
| HS CODE | 84212300 |
| NATO-VERS.-NR. | 2940123179421 |

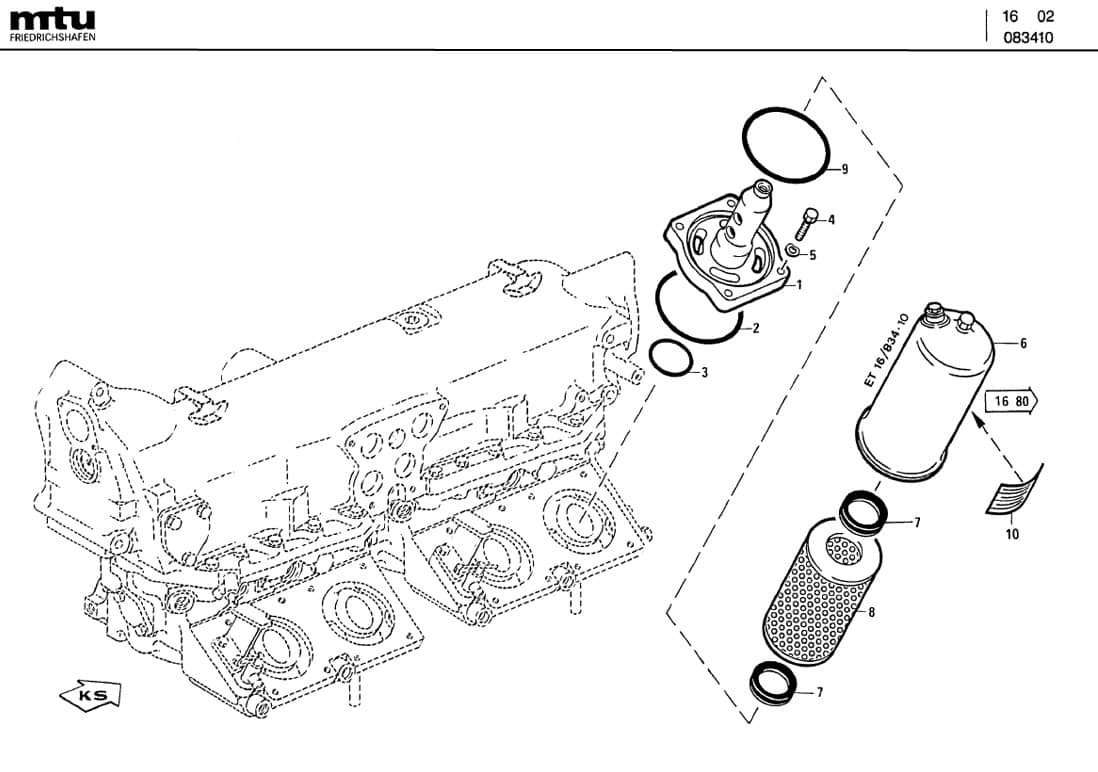

| C/N | Description | Part-Number | Qty |
|---|---|---|---|
| 01 | GUIDE | 5551801840 | 04 |
| 02 | O-RING | 700429126000 | 04 |
| 03 | O-RING | 700429063000 | 04 |
| 04 | SCREW | 000933010116 | 16 |
| 05 | WASHER | 000125010524 | 16 |
| 06 | FILTER BOWL | 5561800811 | 04 |
| 07 | GASKET | 5501840061 | 08 |
| 08 | OIL FILTER ELEMENT | 0011847225 | 04 |
| 09 | O-RING | 700429126000 | 04 |
| 10 | PLATE | 700425000051 | 01 |
| 11Z | OIL FILTER ELEMENT | 5501800016 | 04 |
| C/N | New Part Number | Superseded Part Number | Valid From Date |
|---|---|---|---|
| 01 | 5501800016 | 0001844125 | N/A |
| 02 | 5501800016 | 8695860050 | 2007/10/01 |
| 03 | 5501800016 | 8695860160 | 2007/11/01 |
| 04 | 5501800016 | 8695860690 | 2007/12/01 |
| 05 | 5501800016 | 8695860700 | 2008/01/01 |
| 06 | 5501800016 | 8695860710 | 2008/02/01 |
| 07 | 5501800016 | 8695860001 | 2008/03/01 |
| 08 | 5501800016 | 8695860002 | 2008/04/01 |
| 09 | 5501800016 | 8695860003 | 2008/05/01 |
| 10 | 5501800016 | 8695860074 | 2008/06/01 |
| 11 | 5501800016 | 5501800116 | 2008/07/01 |
| 12 | 5501800016 | XP88199100023 | 2008/08/01 |
| 13 | 5501800016 | 8595860062 | 2008/10/01 |
| 14 | 5501800016 | 8815860018 | 2008/11/01 |
| 15 | 5501800016 | 8595860007 | 2008/12/01 |
| Make | Year of construction | Power KW | U/MIN |
|---|---|---|---|
| 12V 396 TC54 | N/A | 1125 | 1800 |
| 12V 396 TC54 | N/A | 1310 | 1800 |
| 12V 396 TC64 | N/A | 960 | 1600 |
| 12V 396 TE64 | N/A | 1020 | 1600 |
| 12V 396 TE74 | N/A | 1500 | 1900 |
| 12V 396 TE74L | N/A | 1500 | 1900 |
| 12V 396 TE74L | N/A | 1500 | 1800 |
| 12V 396 TE84 | N/A | 1500 | 1900 |
| 12V 396 TE94 | N/A | 1680 | 2000 |
| 12V 396 TB94 | N/A | 1920 | 2100 |
