0189978947 SEAL REAR CRANKSHAFT

Other
Other X00018687 WASHER 5119910060 DOWEL PIN 0189978947 SEAL REAR CRANKSHAFT 5590981380 SEALING RING 5110800220 TURBINE WHEEL 5582040406 IMPELLER 5550162420 CYLINDER HEAD GASKET 5550162320 CYLINDER HEAD GASKET 000007005115 DOWEL PIN 5119940330 TAB WASHER 5119900051 HEX NUT 5110200278 VALVE 5110803201 BEARING HOUSING 0000533635 VALVE ROTATOR 5591420020 GUARD PLATE 5110251476 WASHER 0045426917 TEMPERATURE MONITOR 5500180280 GASKET 0030948104 AIR FILTER ELEMENT 5550100651 NOZZLE HOLDER W/NOZZLE 5550100051 NOZZLE HOLDER W/NOZZLE 0005360201 SWITCH 0005360101 ILLUM PUSHBUTTON 0030947404 AIR FILTER ELEMENT 0001510433 MULTIPLE-DISC CLUTCH 735074100000 COVER 5550101251 OIL SPRAY NOZZLE 5100250050 BEARING BUSHING 5500100330 CYLINDER HEAD COVER 8692030530 PUMP 8690920024 GAUGE VACUUM 0000925105 FILTER ELEMENT 0010928801 FUEL PREFILTER Z=30467 BALL COCK 0045457528 BLADE RECEPTACLE 0021540506 TRANSISTOR REGULATOR 0001536720 SPEED SENSOR 5502040403 COVER 5502040906 IMPELLER 0039978648 SEAL ROTARY PUMP 5502002002 DRIVE SHAFT 8692040010 RING THRUST 0049979947 SEAL SHAFT 5502040176 PLATE CONTROL WASHER 5502003201 SEAWATER PUMP 000908016001 THREADED PLUG 000908010002 SCREWED PLUG 5559901501 SCREW 700429028001 O-RING 5500980280 GASKET 700429270001 O-RING 000933008040 HEX SCREW 5205300171 MAGNETIC NUT 5100850060 RING SEAL 5110850460 PISTON RING 5110850560 PISTON RING 5110252110 RING CARRIER 5110250576 WASHER 5110200510 THRUST BEARING 5110250050 BEARING BUSHING 700429042001 O-RING 5110252210 BEARING 5501840832 VALVE PISTON 5551800015 PRESS LIMITING VALVE 700429150001 O-RING 0002010418 COUNTERRING 5592010007 IMPELLER 070852035000 SLOTTED NUT 270952035100 TAB WASHER 0009813527 ANGLR-CONT BALL BRG 5552010010 BEARING HOUSING 5552010005 COOLANT PUMP SHAFT 0079977247 SHAFT SEAL 0002017519 ROTARY SEAL 5370550050 BUSHING 700429260000 O-RING 5500160121 GASKET 0020172112 HOLE-TYPE NOZZLE 5550102451 NOZZLE HOLDER W/NOZZLE 5550170553 PRESSURE SLEEVE 5550170013 THRUST SCREW 0000170660 CE RING 5500170260 SUPPORT RING 0029977940 SEALING RING 700429014000 O-RING 5551800122 OIL LINE 5500160069 SCREW 700429021000 O-RING 5550160095 SPACER PLATE 5500160597 CLAMP 700429040003 O-RING 700429036001 O-RING 5501872401 PIPE 5500160119 SEALING RING 5500160432 PIPE 5550161420 CYLINDER HEAD GASKET 8700380171 CONROD BOLT 5500530232 VALVE SEAT INSERT EXHAUST 5500531231 VALVE SEAT INSERT INLET 5550170053 PROTECTIVE SLEEVE 0000530361 VALVE STEM SEAL 0000530126 VALVE COLLET 5500530020 VALVE SPRING OUTER 5550530105 EXHAUST VALVE 5500530401 INLET VALVE 5550105141 CYLINDER HEAD W/VALVE 0030944304 AIR FILTER 5550330130 CRANKSHAFT BEARING SIZE 0-0 5550302160 CONROD BEARING SIZE 0-0 5550307540 CRANKSHAFT BEARING SIZE 0-0 5501800106 IDLER GEAR 8381810625 BEARING PIN 5500160405 CYLINDER HEAD COVER 5501801015 PRESS RELIEF VALVE 5501801115 PRESS RELIEF VALVE 5501800915 PRESS LIMITING VALVE 5501800016 OIL FILTER ELEMENT 5500100061 OIL SEPARATOR 5500500334 ROCKER ARM EXHAUST 5500500333 ROCKER ARM INLET 5110809821TURBINE WHEEL 5100850260 PISTON RING 5100850160 PISTON RING
PART NUMBER 0189978947
ENGINE TYPE MTU 396 ENGINE
DESCRIPTION SEAL REAR CRANKSHAFT
DIMENSIONS Ø 190MM
UNIT WEIGHT 0.291 KG
HS CODE 40169300
NATO-VERS.-NR. 5330123330006
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Part details
  • original parts

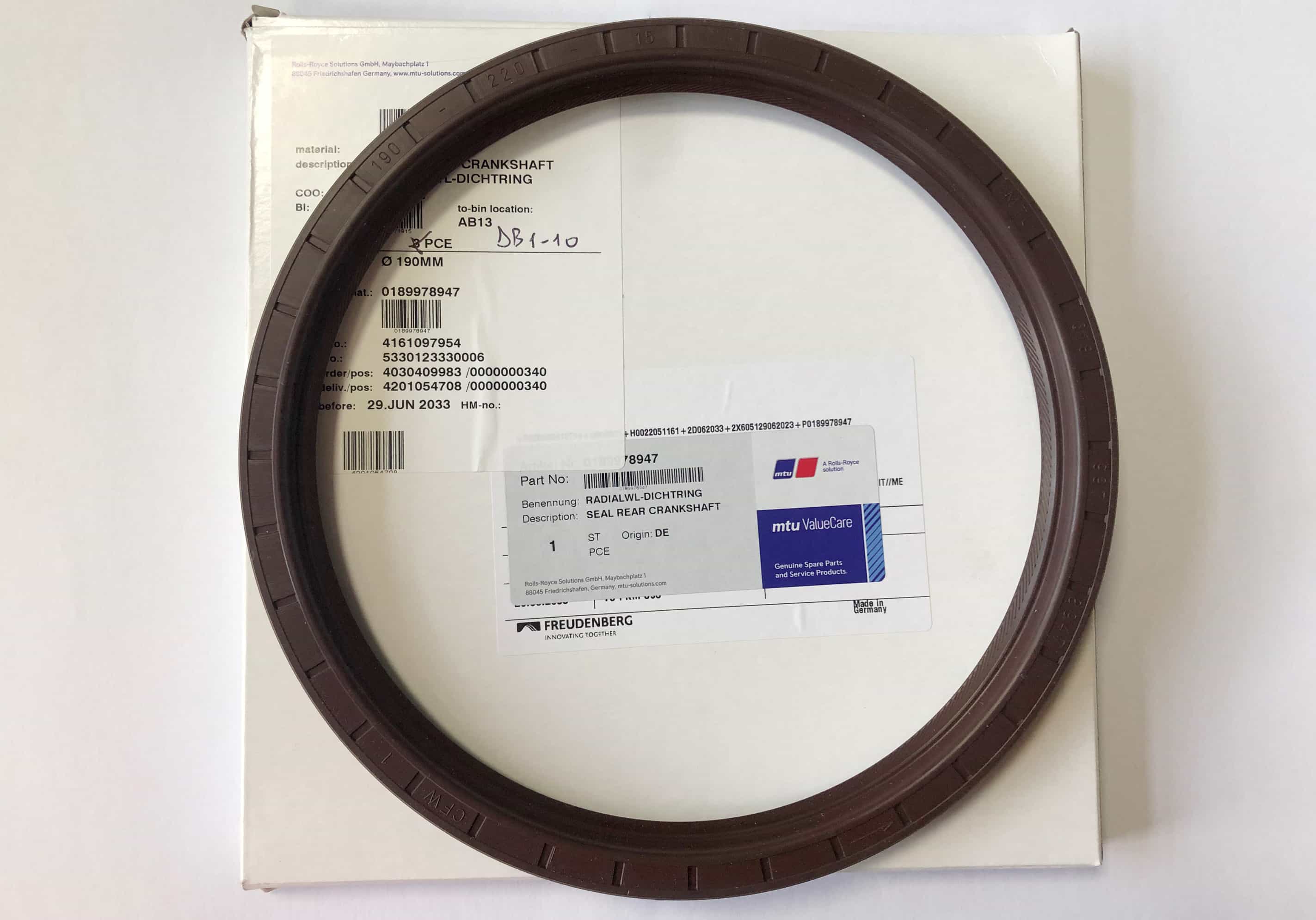

MTU 0189978947 RADIAL-LIP SHAFT SEAL

MTU 0189978947 RADIAL-LIP SHAFT SEAL

MTU 0189978947 RADIAL-LIP SHAFT SEAL

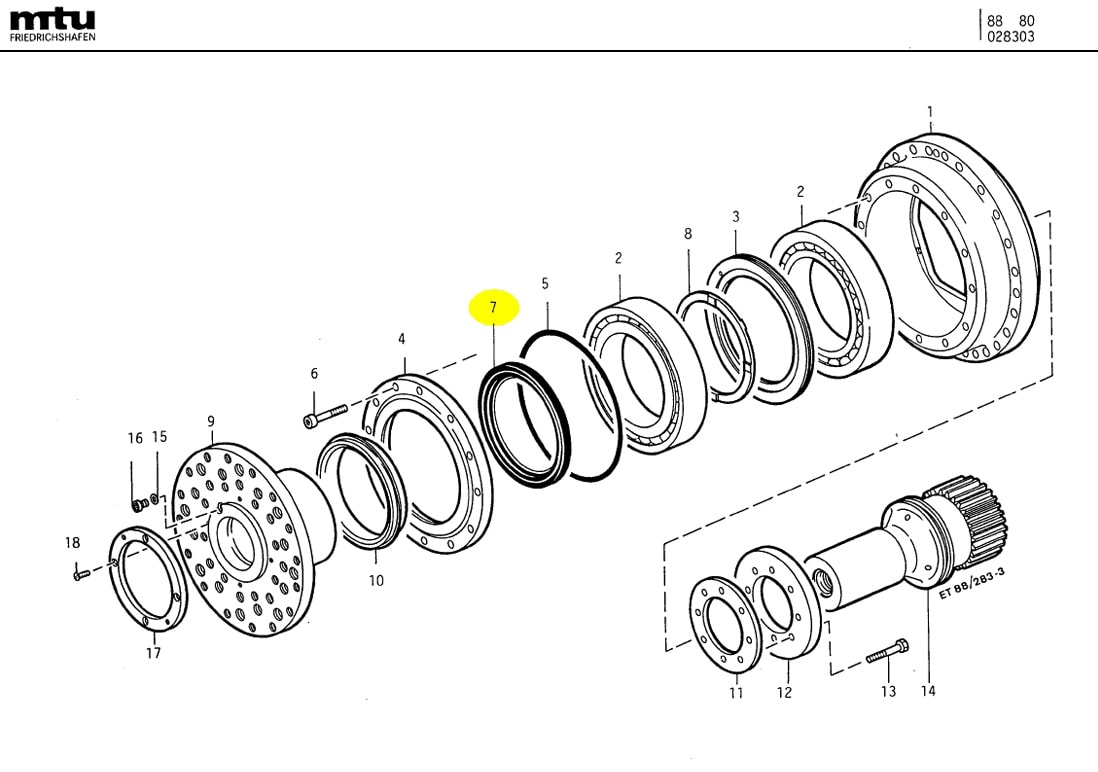

C/N Description Part-Number Qty
000 BEARING SUPPORT 5582500038 01
01 SUPPORT 5582500043 01
02 ANGLR-CONT BALL BRG 200628070000 02
03 RING 5582532442 01
03A RING 5582534742 01
04 COVER 5582531830 01
05 O-RING 700429260001 01
06 SCREW 000912010020 12
07 SEAL REAR CRANKSHAFT 0189978947 01
08 RING 5582533242 01
09 HUB 5582535844/43 01
10 TRACK RING 5582531538 01
11 ADJUSTING RING 5582535042 01
11A ADJUSTING RING 5582533542 01
11B ADJUSTING RING 5582535142 01
11C ADJUSTING RING 5582533742 01
11D ADJUSTING RING 5582533842 01
11E ADJUSTING RING 5582535242 01
12 FLANGE 5582537145 01
13 HEX SCREW 000931010105 08
14 SHAFT 5582530901/42 01
15 COPPER SEALING RING 007603012111 01
16 PLUG 000908012003 01
17 CENTERING RING 5512340051 01
18 COUNTERSUNK HD SCREW 000963006000 04

0189978947 SUPERSEDED PART AND EFFECTIVE DATE

0189978947 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 0189978947 0119973446 N/A
02 0189978947 0079979347 2004/02/01
03 0189978947 0079977047 2004/03/01
04 0189978947 0179975247 2004/04/01
05 0189978947 0109973047 2004/05/01
06 0189978947 0189972247 2004/06/01
07 0189978947 0189978947 2004/07/01

MTU 396 Diesel Engine Models & Specifications

MTU 16 396 Diesel Engine

MTU 396 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
12V 396 TC54 N/A 1125 1800
12V 396 TC54 N/A 1310 1800
12V 396 TC64 N/A 960 1600
12V 396 TE64 N/A 1020 1600
12V 396 TE74 N/A 1500 1900
12V 396 TE74L N/A 1500 1900
12V 396 TE74L N/A 1500 1800
12V 396 TE84 N/A 1500 1900
12V 396 TE94 N/A 1680 2000
12V 396 TB94 N/A 1920 2100
