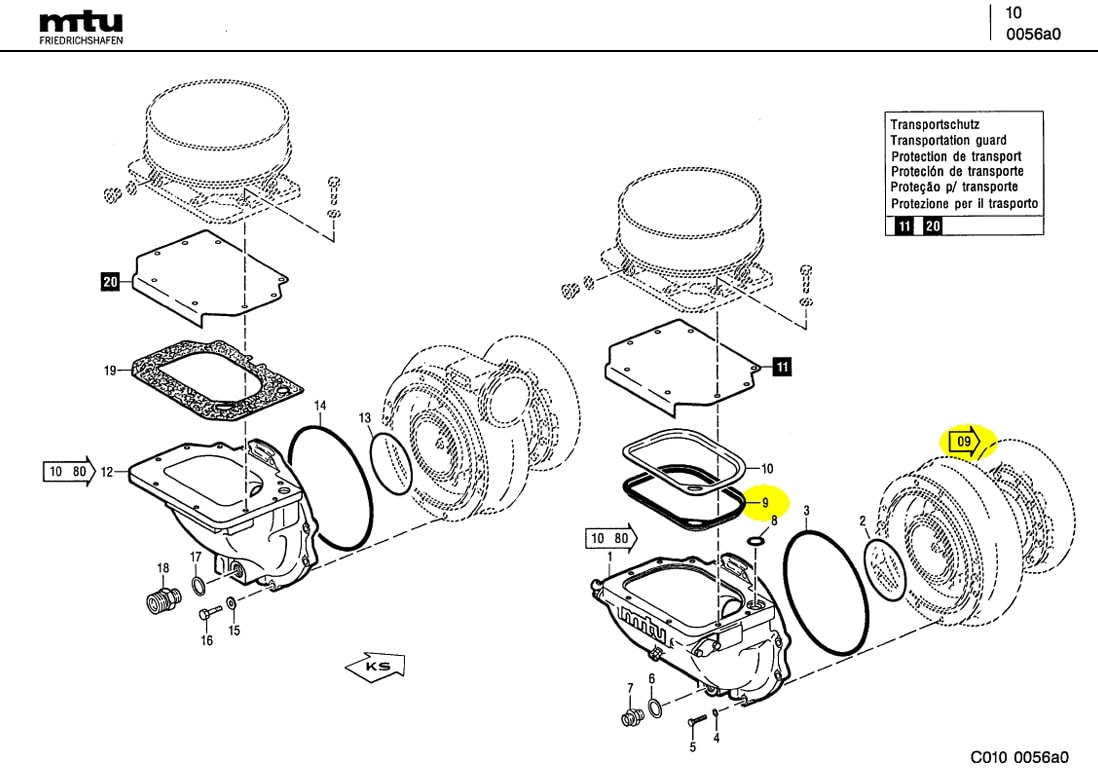

C/N | Description | Part-Number | Qty |
---|---|---|---|
01 | INTAKE HOUSING | 5590902317 | 00 |
02 | O-RING | 700429142000 | 01 |
03 | O-RING | 700429270001 | 01 |
04 | WASHER | 000125008427 | 08 |
05 | HEX SCREW | 304017008085 | 08 |
06 | COPPER SEALING RING | 007603030101 | 01 |
07 | UNION | 915013025001 | 01 |
08 | O-RING | 700429032000 | 01 |

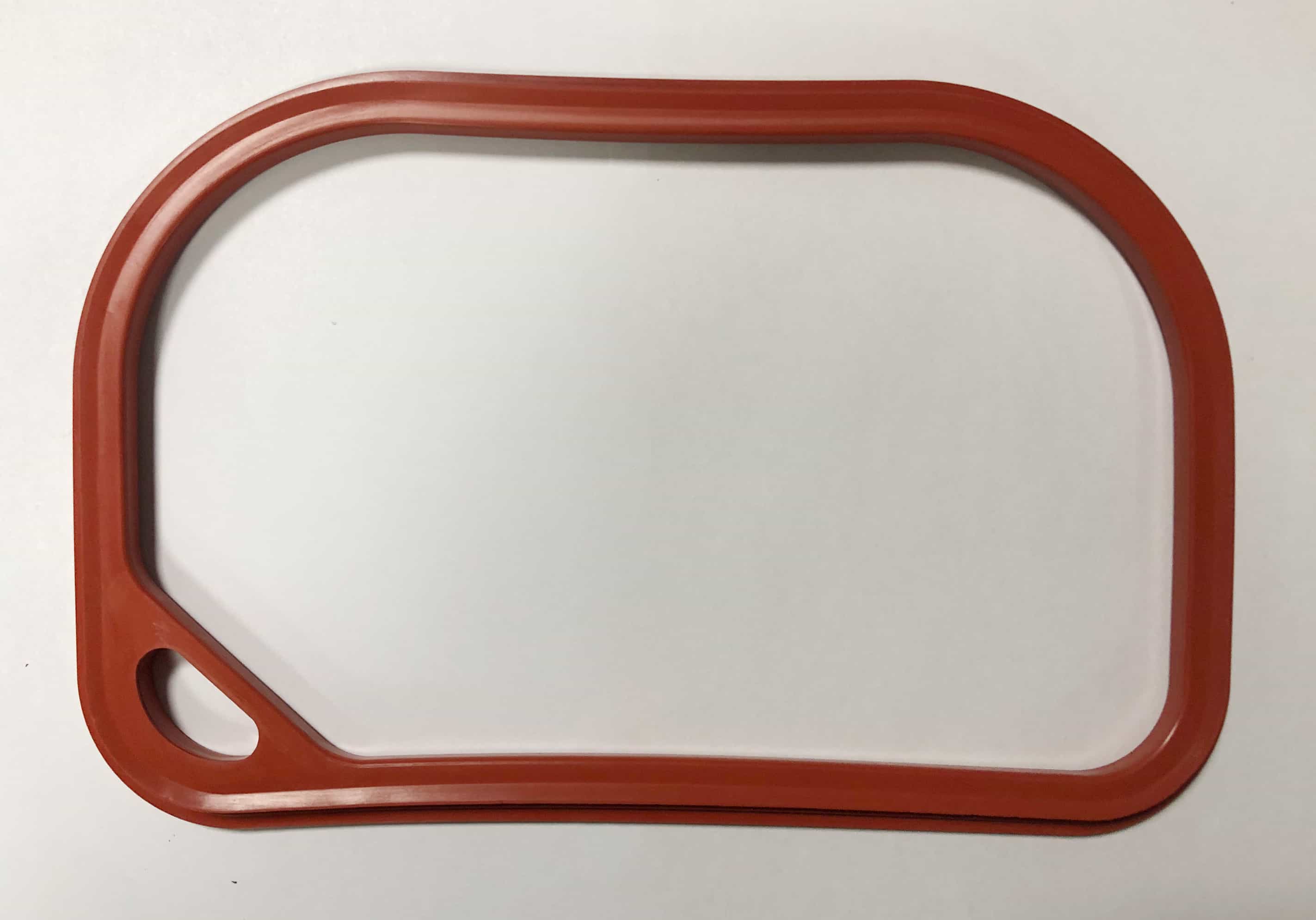

09 | SEALING RING | 5590981380 | 01 |
10 | SUPPORT PLATE | 5590981585 | 01 |
11 | COVER PLATE | 5590940257 | 01 |
12 | INTAKE HOUSING | 5590902117 | 01 |
13 | O-RING | 700429142000 | 01 |
14 | O-RING | 700429270001 | 01 |
15 | WASHER | 000125008427 | 08 |
16 | HEX SCREW | 304017008085 | 08 |
17 | COPPER SEALING RING | 007603030101 | 01 |
18 | UNION | 915013025001 | 01 |
19 | GASKET | 5590982680 | 01 |
20 | COVER PLATE | 5590940257 | 01 |
Make | Year of construction | Power KW | U/MIN |
---|---|---|---|
12V 396 TC54 | N/A | 1125 | 1800 |
12V 396 TC54 | N/A | 1310 | 1800 |
12V 396 TC64 | N/A | 960 | 1600 |
12V 396 TE64 | N/A | 1020 | 1600 |
12V 396 TE74 | N/A | 1500 | 1900 |
12V 396 TE74L | N/A | 1500 | 1900 |
12V 396 TE74L | N/A | 1500 | 1800 |
12V 396 TE84 | N/A | 1500 | 1900 |
12V 396 TE94 | N/A | 1680 | 2000 |
12V 396 TB94 | N/A | 1920 | 2100 |
