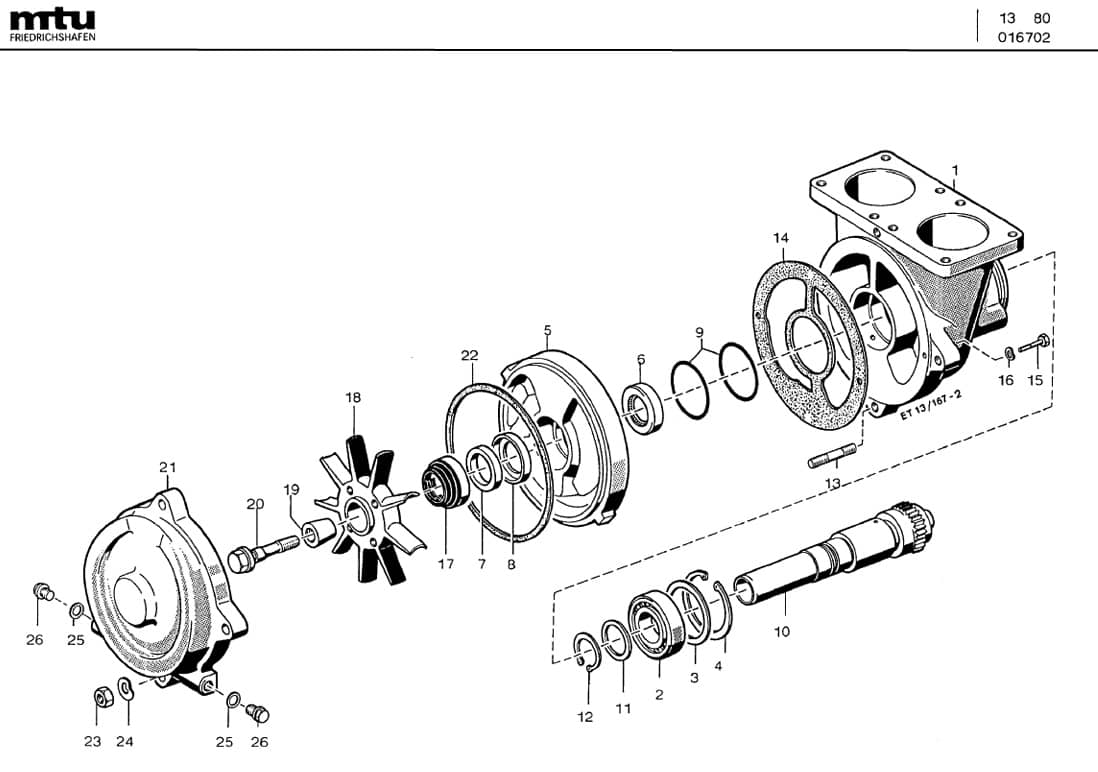

C/N | Description | Part-Number | Qty |
---|---|---|---|
000 | SEAWATER PUMP | 5502003201 | 01 |
01 | HOUSING | 5502040901 | 01 |
02 | BEARING BALL GROOVED 62 | 000625900175 | 01 |
03 | RING SHIM 63 X 80 DI M 988 | 000988063100 | 01 |
04 | SNAP RING | 900055080210 | 01 |
05 | PLATE CONTROL WASHER | 5502040176 | 01 |
06 | SEAL SHAFT | 0049979947 | 01 |
07 | RING THRUST | 8692040010 | 01 |
08 | GAITER | 8692040020 | 01 |
09 | O-RING | 700429057000 | 02 |
10 | DRIVE SHAFT | 5502002002 | 01 |
11 | RING SHIM 40 X 50 DI M 988 | 000988040100 | 01 |
12 | SNAP RING | 900055040200 | 01 |
13 | STUD | 000939012101 | 04 |
14 | GASKET | 5552040580 | 01 |
15 | HEX SCREW | 000933006083 | 02 |
16 | WASHER SPRING B6 | 000137006205 | 02 |
17 | SEAL ROTARY PUMP | 0039978648 | 01 |
18 | IMPELLER | 5502040906 | 01 |
19 | CONE | 5502040050 | 01 |
20 | BOLT STRESS | 5509900719 | 01 |
21 | COVER | 5502040403 | 01 |
22 | GASKET | 8692040050 | 01 |
23 | NUT HEX | 000934012008 | 04 |
24 | WASHER SPRING B12 | 000137012202 | 04 |
25 | RING SEALING A13 X18 CU | 705057013000 | 02 |
26 | PLUG | 000910999015 | 02 |
C/N | New Part Number | Superseded Part Number | Valid From Date |
---|---|---|---|
01 | 5502003201/87 | 5502001101 | N/A |
02 | 5502003201/87 | 5502002501 | 2009/02/01 |
03 | 5502003201/87 | 5502002801 | 2009/03/01 |
04 | 5502003201/87 | 5502003001 | 2009/04/01 |
05 | 5502003201/87 | 5502003201 | 2009/05/01 |
06 | 5502003201/87 | 5502003201/87 | 2009/06/01 |
Make | Year of construction | Power KW | U/MIN |
---|---|---|---|
12V 396 TC54 | N/A | 1125 | 1800 |
12V 396 TC54 | N/A | 1310 | 1800 |
12V 396 TC64 | N/A | 960 | 1600 |
12V 396 TE64 | N/A | 1020 | 1600 |
12V 396 TE74 | N/A | 1500 | 1900 |
12V 396 TE74L | N/A | 1500 | 1900 |
12V 396 TE74L | N/A | 1500 | 1800 |
12V 396 TE84 | N/A | 1500 | 1900 |
12V 396 TE94 | N/A | 1680 | 2000 |
12V 396 TB94 | N/A | 1920 | 2100 |
