MTU 396 ENGINE PARTS | 5591421180 | GASKET

5591421180 GASKET

Other
Other 5591422180 GASKET 5541870180 GASKET 0000943409 INTAKE MANIFOLD 8699970212 O-RING 8692030121 ACTUATING ELEMENT 8699970213 O-RING 5532031580 GASKET 5532031280 GASKET 5502010276 THRUST WASHER 5592010307 IMPELLER 700386032000 SHAFT SEAL 5562010105 COOLANT PUMP SHAFT 5110800420 TURBINE WHEEL 5110820226 HEAT SHIELD 5110812603 HEAT SHIELD 5601400441 V-BAND CLAMP 5842030252 WASHER 5842030362 PIN 5842030562 PIN 0002033288 ACTUATOR 5552030388 SLIDE VALVE 5502035780 GASKET 5502035680 GASKET 5561421884 SHIM 513D01017/1 GASKET 5372030880 GASKET 5500500225 ROLLER TAPPET 5550630180 GASKET 5500530025 SPRING RETAINER 5370780038 DAMPER STRIP 0001750080 GASKET 5590982680 GASKET 5552035639 FLANGE 536E03003/1 BUFFER 0001536132 PRESSURE MONITOR 5502030060 SIGHT GLASS 5502032080 GASKET 0001510433 MULTIPLE-DISC CLUTCH 5119900051 HEX NUT 5110200278 VALVE 5110251476 WASHER 0000533635 VALVE ROTATOR 5110803201 BEARING HOUSING 5110800220 TURBINE WHEEL 5100850060 RING SEAL X00018687 WASHER 5110200510 THRUST BEARING 5550101251 OIL SPRAY NOZZLE 735074100000 COVER 0030947404 AIR FILTER ELEMENT 0005360101 ILLUM PUSHBUTTON 0005360201 SWITCH 5550100051 NOZZLE HOLDER W/NOZZLE 5550100651 NOZZLE HOLDER W/NOZZLE 0030948104 AIR FILTER ELEMENT 5500180280 GASKET 0045426917 TEMPERATURE MONITOR 5591420020 GUARD PLATE 5119940330 TAB WASHER 000007005115 DOWEL PIN 5550162320 CYLINDER HEAD GASKET 5550162420 CYLINDER HEAD GASKET 5582040406 IMPELLER 5590981380 SEALING RING 0189978947 SEAL REAR CRANKSHAFT 5119910060 DOWEL PIN 5110252210 BEARING 5502003201 SEAWATER PUMP 5550161420 CYLINDER HEAD GASKET 0000530361 VALVE STEM SEAL 5110252110 RING CARRIER 0030944304 AIR FILTER 5100250050 BEARING BUSHING 5500100330 CYLINDER HEAD COVER 8692030530 PUMP 8690920024 GAUGE VACUUM 0000925105 FILTER ELEMENT 0010928801 FUEL PREFILTER Z=30467 BALL COCK 0045457528 BLADE RECEPTACLE 0021540506 TRANSISTOR REGULATOR 0001536720 SPEED SENSOR 0039978648 SEAL ROTARY PUMP 5502002002 DRIVE SHAFT 8692040010 RING THRUST 0049979947 SEAL SHAFT 5502040176 PLATE CONTROL WASHER 000908016001 THREADED PLUG 000908010002 SCREWED PLUG 5559901501 SCREW 700429028001 O-RING 5500980280 GASKET 700429270001 O-RING 000933008040 HEX SCREW 5205300171 MAGNETIC NUT 5110850460 PISTON RING 5110850560 PISTON RING 5110250576 WASHER 5110250050 BEARING BUSHING 700429042001 O-RING 5501840832 VALVE PISTON 5551800015 PRESS LIMITING VALVE 700429150001 O-RING 0002010418 COUNTERRING 5592010007 IMPELLER 070852035000 SLOTTED NUT 270952035100 TAB WASHER 0009813527 ANGLR-CONT BALL BRG 5552010010 BEARING HOUSING 5552010005 COOLANT PUMP SHAFT 0079977247 SHAFT SEAL 0002017519 ROTARY SEAL 5370550050 BUSHING 700429260000 O-RING 5500160121 GASKET 0020172112 HOLE-TYPE NOZZLE 5550102451 NOZZLE HOLDER W/NOZZLE 5550170553 PRESSURE SLEEVE 5550170013 THRUST SCREW 0000170660 CE RING 5500170260 SUPPORT RING 0029977940 SEALING RING 700429014000 O-RING 5551800122 OIL LINE 5500160069 SCREW 700429021000 O-RING 5550160095 SPACER PLATE 5500160597 CLAMP 700429040003 O-RING 700429036001 O-RING 5501872401 PIPE 5500160119 SEALING RING 5500160432 PIPE 8700380171 CONROD BOLT 5500530232 VALVE SEAT INSERT EXHAUST 5500531231 VALVE SEAT INSERT INLET 5550170053 PROTECTIVE SLEEVE 0000530126 VALVE COLLET 5500530020 VALVE SPRING OUTER 5550530105 EXHAUST VALVE 5500530401 INLET VALVE 5550105141 CYLINDER HEAD W/VALVE 5550330130 CRANKSHAFT BEARING SIZE 0-0 5550302160 CONROD BEARING SIZE 0-0 5550307540 CRANKSHAFT BEARING SIZE 0-0 5501800106 IDLER GEAR 8381810625 BEARING PIN 5500160405 CYLINDER HEAD COVER 5501801015 PRESS RELIEF VALVE 5501801115 PRESS RELIEF VALVE 5501800915 PRESS LIMITING VALVE 5501800016 OIL FILTER ELEMENT 5500100061 OIL SEPARATOR 5500500334 ROCKER ARM EXHAUST 5500500333 ROCKER ARM INLET 5110809821TURBINE WHEEL 5100850260 PISTON RING 5100850160 PISTON RING 5502040403 COVER 5502040906 IMPELLER
PART NUMBER 5591421180
ENGINE TYPE MTU 396 ENGINE
DESCRIPTION GASKET
DIMENSIONS N/A
UNIT WEIGHT 0.009 KG
HS CODE 39269097
NATO-VERS.-NR. 5330123320420
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Part details
  • original parts

MTU 396 DIESEL ENGINE PARTS 5591421180 GASKET

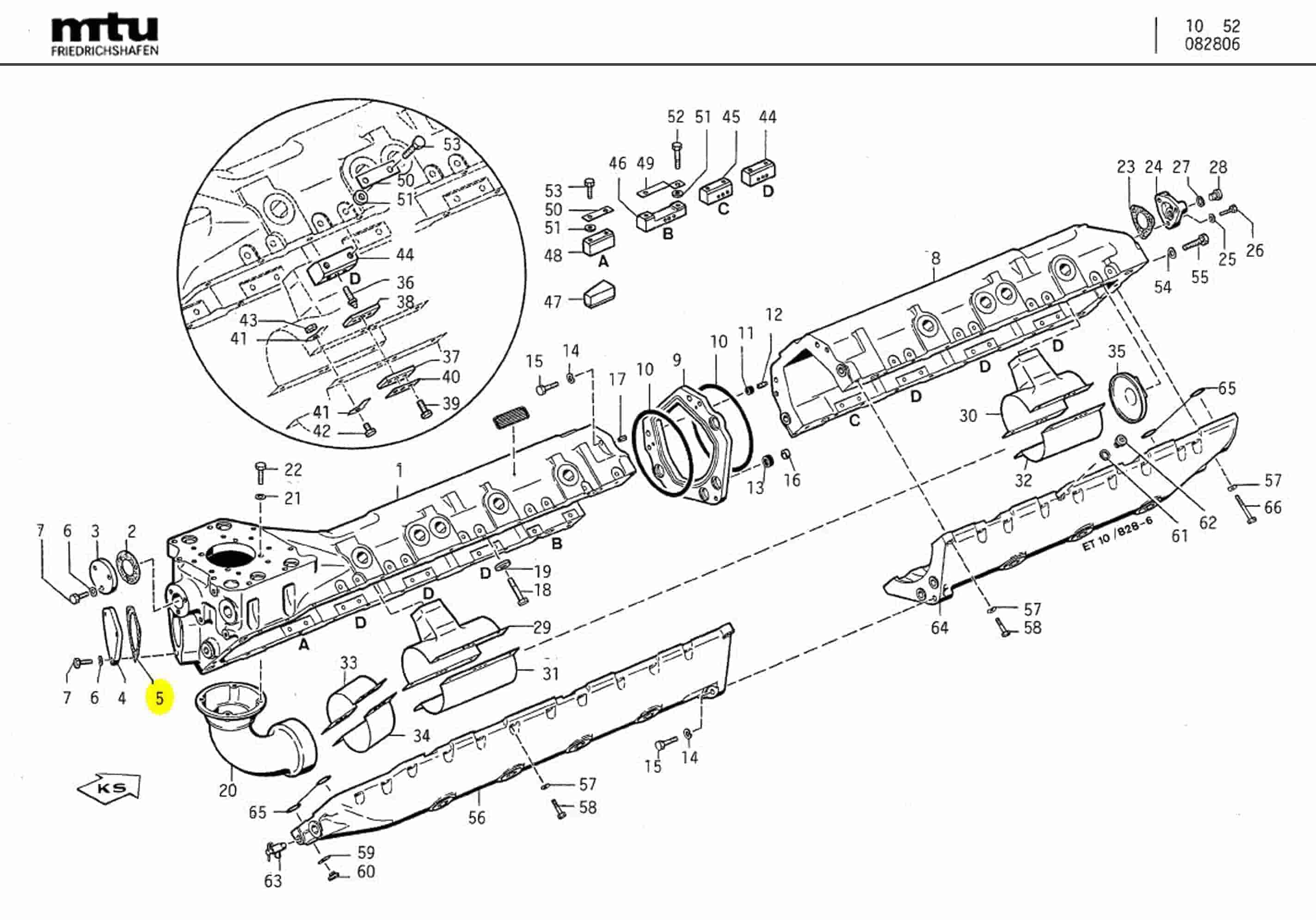

MTU 5591421180 Technical Engineering Exploded View

MTU 396 DIESEL ENGINE PARTS 5591421180 GASKET

C/N Description Part-Number Qty
01 EXHAUST HOUSING 5591405518 01
02 GASKET 5591422280 02
03 COVER 5591420391 02
04 COVER 5591420291 02
05 GASKET 5591421180 02
06 SPRING WASHER 000137010202 12
07 SCREW 000933010093 12
08 EXHAUST HOUSING 5591406718 02
09 COVER PLATE 5591422020 02
10 O-RING 700429230000 02
11 SEALING RING 5800150760 08
12 EXHAUST PIPE 5500160432 04
13 SEALING RING 5500160119 04
14 SPRING WASHER 000137010202 06
15 SCREW 000931010231 06
16 SPACER BUSHING 5551420050 08
17 SPRING PIN 001481006000 04
18 SCREW 000931012046 32
19 COVER DISC 007349013002 32
20 EXHAUST ELBOW 5591403514 01
21 COVER DISC 5509901540 08
22 SCREW 200933010007 08
23 GASKET 5501424880 02
24 END COVER 5501420291 02
25 COVER DISC 000125008427 06
26 SCREW 000933008118 06
27 SEALING RING 007603018101 02
28 PLUG 000908018002 02
29 CONSTANT-PRESSURE HALF-MANIFOLD 5591401616 14
30 CONSTANT-PRESSURE HALF-MANIFOLD 5591401716 02
31 CONSTANT-PRESSURE HALF-MANIFOLD 5561424909 14
32 CONSTANT-PRESSURE HALF-MANIFOLD 5561425109 02
33 CONSTANT-PRESSURE HALF-MANIFOLD 5561420308 02
34 CONSTANT-PRESSURE HALF-MANIFOLD 5561420208 02
35 END COVER 5591422991 02
36 LOCATING PIN 5561420074 36
37 SHIM 5561421284 36
38 SHIM 5561421284 36
39 SCREW 200933008006 72
40 TAB WASHER 5569940330 36
42 SCREW 200933008008 60
43 HEX NUT 200934008002 60
44 ALARM SWITCH 5591424040 24
45 ALARM SWITCH 5591424140 04
46 ALARM SWITCH 5591424240 04
47 ALARM SWITCH 5591424340 02
48 ALARM SWITCH 5591424440 02
49 TAB WASHER 5591420273 04
50 TAB WASHER 5591420373 32
51 COVER DISC 007349010002 72
52 SCREW 200931010003 04
53 SCREW 200933010007 68
54 COVER DISC 5501420052 02
55 SCREW 200933012001 02
56 END COVER 5591402321 01
57 COVER DISC 000125008427 96
58 SCREW 000933008118 92
59 SEALING RING 007603018101 03
60 PLUG 000908018002 03
61 SEALING RING 007603018101 05
62 PLUG 000908018002 05
63 DRAIN VALVE 0009970436 04
64 END COVER 5591402621 02
65 O-RING 700429032003 16
66 SCREW 000931008190 04
67Z SCREW 000931008046 04
68Z COVER DISC 000125008427 04

5591421180 SUPERSEDED PART AND EFFECTIVE DATE

5591421180 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 5591421180 5591420280 N/A
02 5591421180 5591421180 1990/06/01

MTU 396 Diesel Engine Models & Specifications

MTU 16 396 Diesel Engine

MTU 396 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
12V 396 TC54 N/A 1125 1800
12V 396 TC54 N/A 1310 1800
12V 396 TC64 N/A 960 1600
12V 396 TE64 N/A 1020 1600
12V 396 TE74 N/A 1500 1900
12V 396 TE74L N/A 1500 1900
12V 396 TE74L N/A 1500 1800
12V 396 TE84 N/A 1500 1900
12V 396 TE94 N/A 1680 2000
16V 396 TB34 N/A 1450 1500
