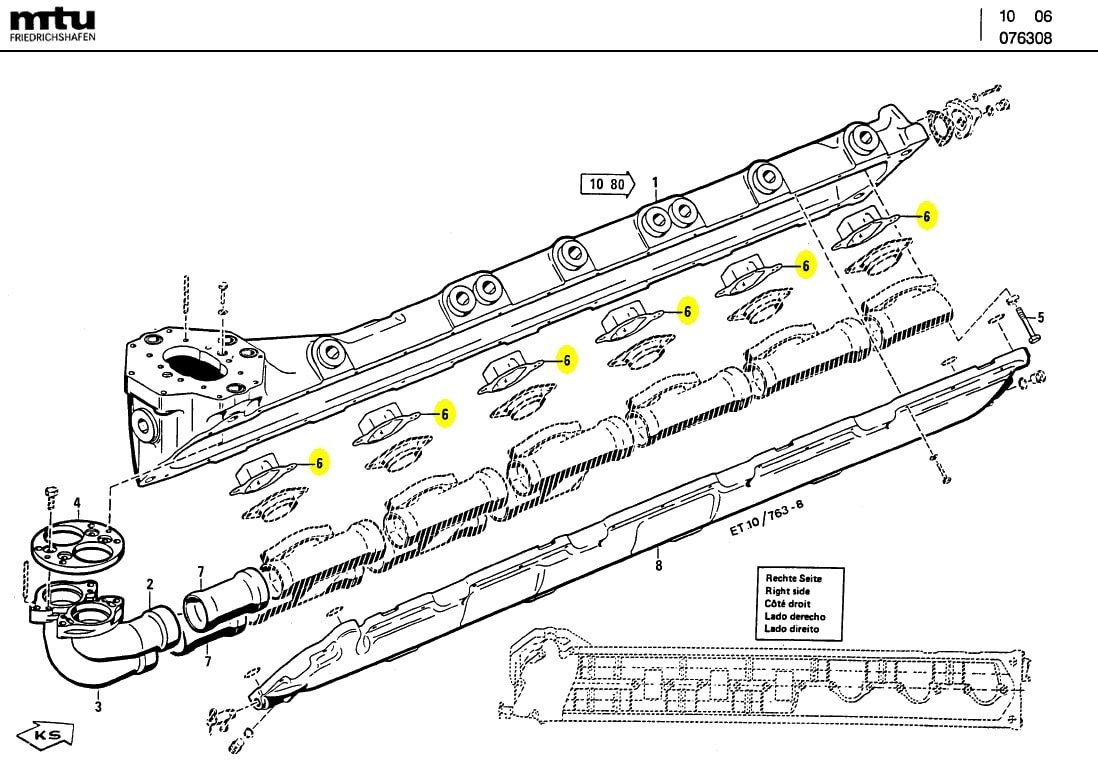

C/N | Description | Part-Number | Qty |
---|---|---|---|
01 | HOUSING FOR EXHAUST PIPE RT | 5581401418 | 01 |
02 | EXHAUST ELBOW RIGHT | 5581403309 | 01 |
03 | EXHAUST ELBOW RIGHT | 5581403209 | 01 |
04 | FLANGE | 5581422115 | 01 |
05 | HEX SCREW | 000931012065 | 01 |

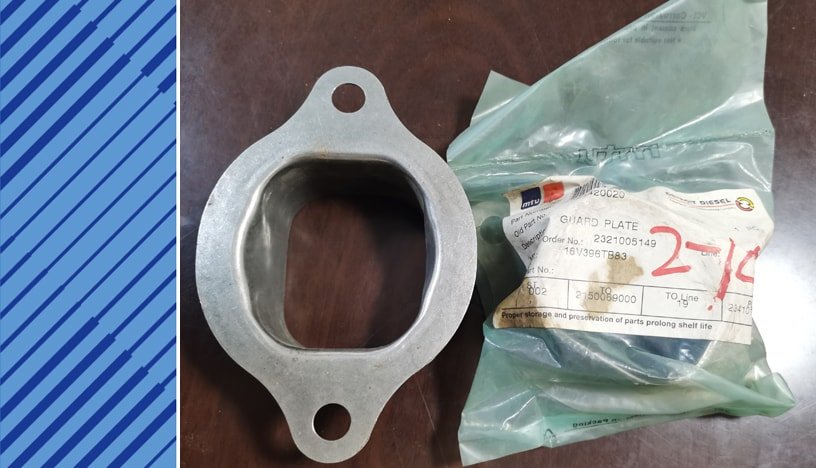

06 | GUARD PLATE | 5591420020 | 06 |
07 | PIPE SECTION | 5501424954 | 02 |
08 | COVER RIGHT | 5531400321 | 01 |
Make | Year of construction | Power KW | U/MIN |
---|---|---|---|
12V 396 TC54 | N/A | 1125 | 1800 |
12V 396 TC54 | N/A | 1310 | 1800 |
12V 396 TC64 | N/A | 960 | 1600 |
12V 396 TE64 | N/A | 1020 | 1600 |
12V 396 TE74 | N/A | 1500 | 1900 |
12V 396 TE74L | N/A | 1500 | 1900 |
12V 396 TE74L | N/A | 1500 | 1800 |
12V 396 TE84 | N/A | 1500 | 1900 |
12V 396 TE94 | N/A | 1680 | 2000 |
12V 396 TB94 | N/A | 1920 | 2100 |
