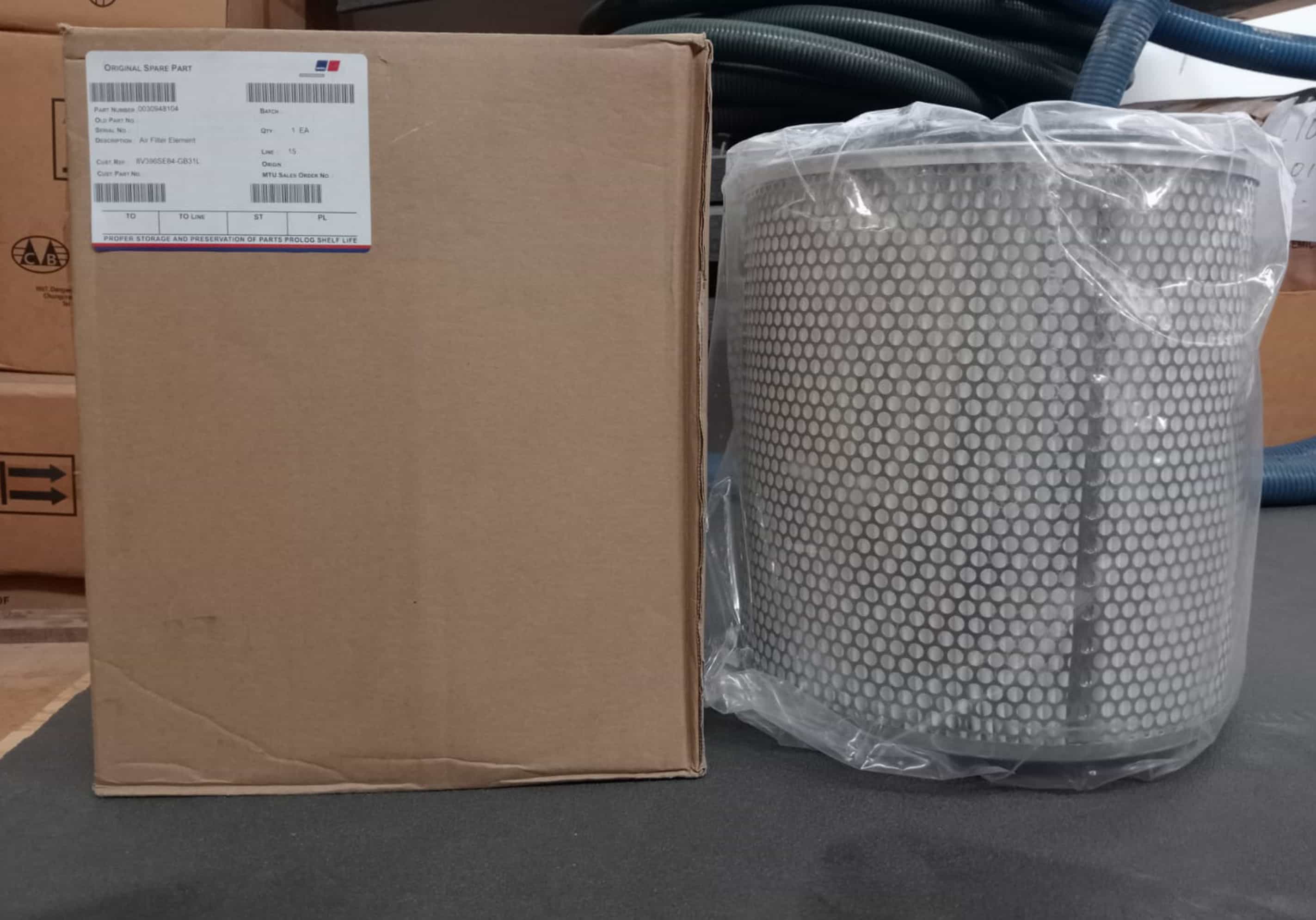

PART NUMBER 0030948104
ENGINE TYPE MTU 396 ENGINE
DESCRIPTION AIR FILTER ELEMENT
DIMENSIONS N/A
UNIT WEIGHT 4.290 KG
HS CODE 84219990
NATO-VERS.-NR. 2940123618364
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Install drawings
  • original parts

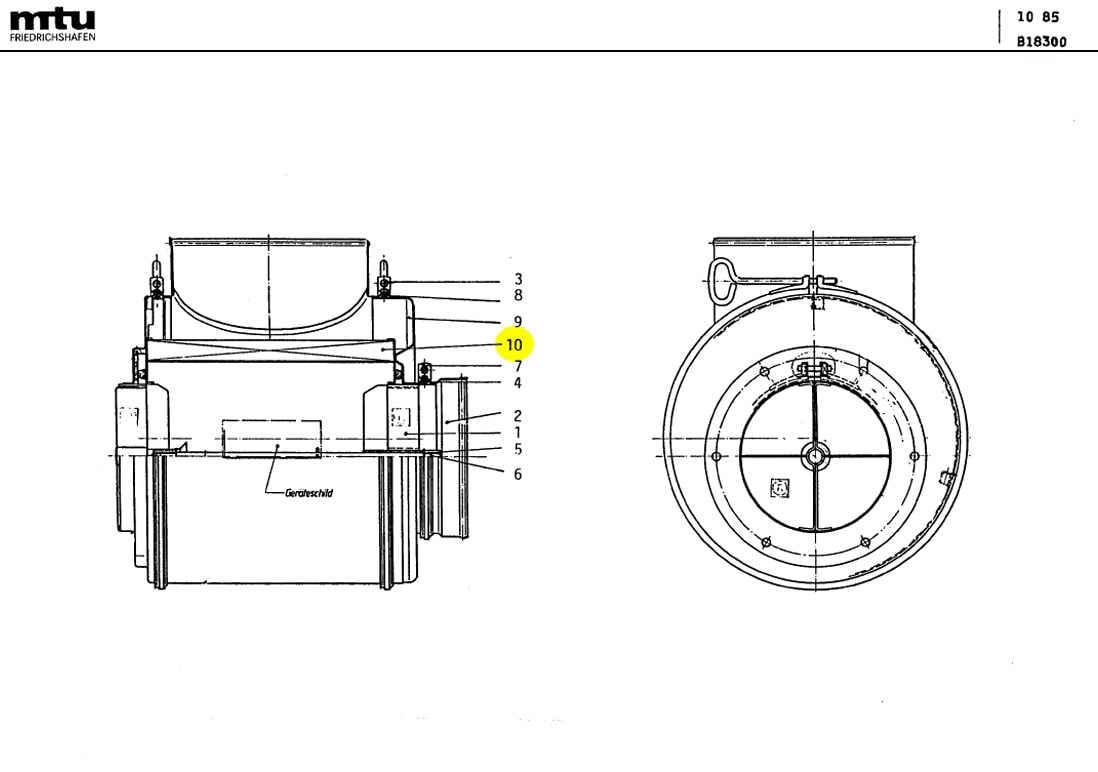

MTU 0030948104 Technical Engineering Exploded View

MTU 0030948104 Technical Engineering Exploded View

MTU 0030948104 Technical Engineering Exploded View

C/N Description Part-Number Qty
000 AIR FILTER 0150940302 02
01 RING =44 840 23 111 02
02 UNION =44 840 25 101 02
03 CLAMP =22 204 29 992 04
04 O-RING 700294175000 02
05 WASHER 200125010500 02
06 SCREW =21 008 04 941 02
07 CLAMP =22 375 29 972 02
08 O-RING 700294342000 04
09 BODEN VST =44 840 17 981 02
10 AIR FILTER ELEMENT 0030948104 02

0030948104 SUPERSEDED PART AND EFFECTIVE DATE

0030948104 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 0030948104 0030942004 N/A
02 0030948104 0030948104 1992/12/01

MTU 396 Diesel Engine Models & Specifications

MTU 16 396 Diesel Engine

MTU 396 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
8V 396 TC53Z N/A 1125 1800
12V 396 TC54 N/A 1310 1800
12V 396 TC64 N/A 960 1600
12V 396 TE64 N/A 1020 1600
12V 396 TE74 N/A 1500 1900
12V 396 TE74L N/A 1500 1900
12V 396 TE74L N/A 1500 1800
12V 396 TE84 N/A 1500 1900
12V 396 TE94 N/A 1680 2000
12V 396 TB94 N/A 1920 2100
