C/N | Description | Part-Number | Qty |
---|---|---|---|
000 | CYLINDER HEAD W/VALVE | 5550105141 | 01 |
01 | CYLINDER HEAD | 5550105141/01 | 01 |
02 | VALVE ROTATOR | 0000533635 | 04 |
03 | INLET VALVE | 5500530401 | 02 |

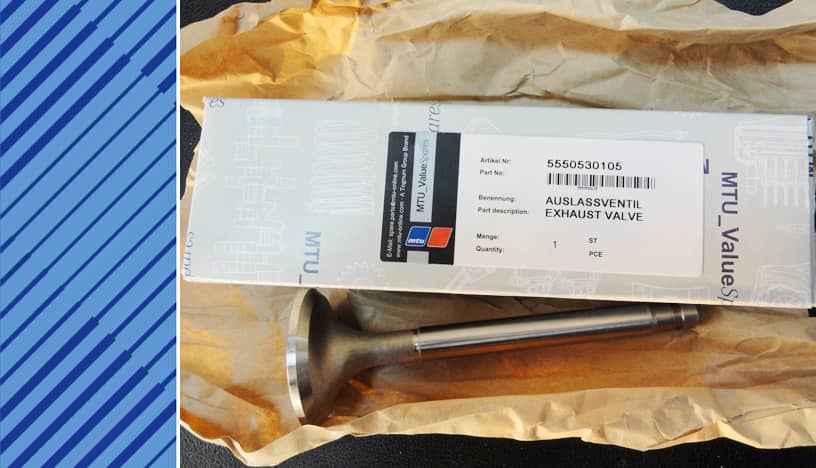

04 | EXHAUST VALVE | 5550530105 | 02 |
05 | VALVE SPRING OUTER | 5500530020 | 04 |
06 | VALVE SPRING INNER | 5500530022 | 04 |
07 | VALVE SPRING INNER | 5500530025 | 04 |
08 | VALVE COLLET | 0000530126 | 08 |
09 | VALVE STEM SEAL | 0000530361 | 02 |
C/N | New Part Number | Superseded Part Number | Valid From Date |
---|---|---|---|
01 | 5550530105 | 5370530005 | N/A |
02 | 5550530105 | 5370530105 | 1988/11/01 |
03 | 5550530105 | 5500530405 | 1988/12/01 |
01 | 5550530105 | 5370530005 | N/A |
Make | Year of construction | Power KW | U/MIN |
---|---|---|---|
12V 396 TC54 | N/A | 1125 | 1800 |
12V 396 TC54 | N/A | 1310 | 1800 |
12V 396 TC64 | N/A | 960 | 1600 |
12V 396 TE64 | N/A | 1020 | 1600 |
12V 396 TE74 | N/A | 1500 | 1900 |
12V 396 TE74L | N/A | 1500 | 1900 |
12V 396 TE74L | N/A | 1500 | 1800 |
12V 396 TE84 | N/A | 1500 | 1900 |
12V 396 TE94 | N/A | 1680 | 2000 |
12V 396 TB94 | N/A | 1920 | 2100 |
