PART NUMBER 5502002002
ENGINE TYPE MTU 396 ENGINE
DESCRIPTION DRIVE SHAFT
DIMENSIONS N/A
UNIT WEIGHT 2.399 KG
HS CODE 84831095
NATO-VERS.-NR. 3040123671417
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Install drawings
  • original parts

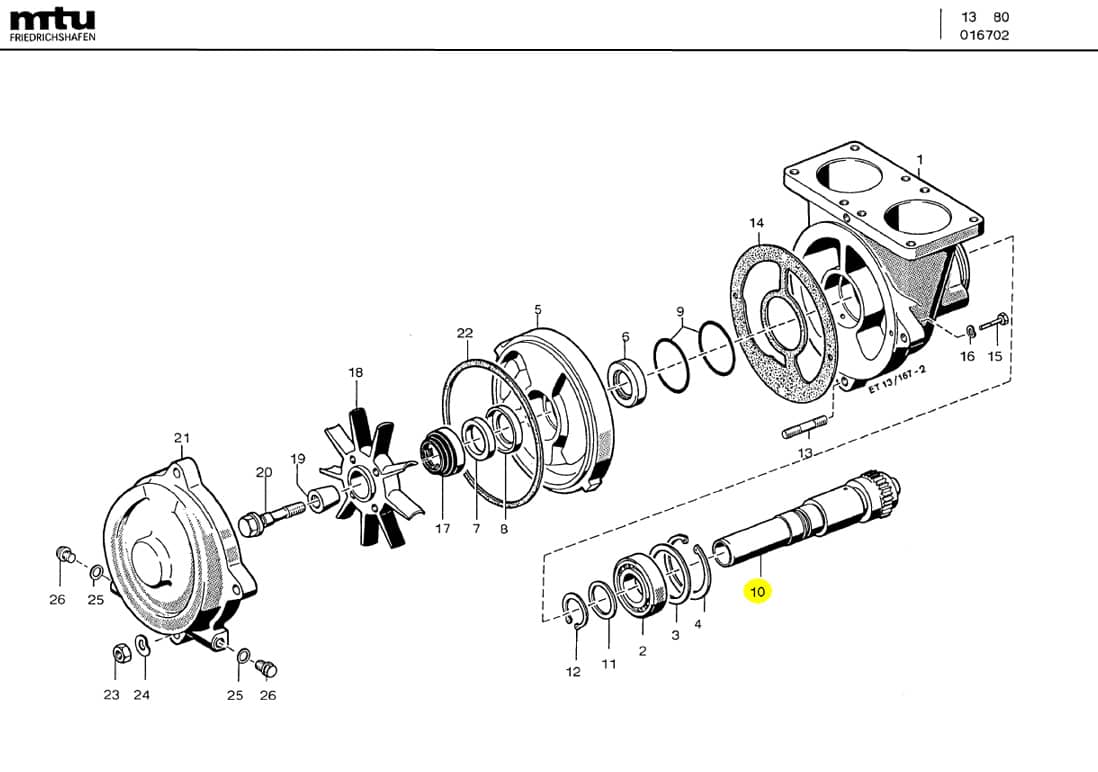

MTU 5502002002 Technical Engineering Exploded View

MTU 5502002002 Technical Engineering Exploded View

MTU 5502002002 Technical Engineering Exploded View

C/N Description Part-Number Qty
000 SEAWATER PUMP 5502003201 01
01 HOUSING 5502040901 01
02 BEARING BALL GROOVED 62 000625900175 01
03 RING SHIM 63 X 80 DI M 988 000988063100 01
04 SNAP RING 900055080210 01
05 PLATE CONTROL WASHER 5502040176 01
06 SEAL SHAFT 0049979947 01
07 RING THRUST 8692040010 01
08 GAITER 8692040020 01
09 O-RING 700429057000 02
10 DRIVE SHAFT 5502002002 01
11 RING SHIM 40 X 50 DI M 988 000988040100 01
12 SNAP RING 900055040200 01
13 STUD 000939012101 04
14 GASKET 5552040580 01
15 HEX SCREW 000933006083 02
16 WASHER SPRING B6 000137006205 02
17 SEAL ROTARY PUMP 0039978648 01
18 IMPELLER 5502040906 01
19 CONE 5502040050 01
20 BOLT STRESS 5509900719 01
21 COVER 5502040403 01
22 GASKET 8692040050 01
23 NUT HEX 000934012008 04
24 WASHER SPRING B12 000137012202 04
25 RING SEALING A13 X18 CU 705057013000 02
26 PLUG 000910999015 02

5502002002 SUPERSEDED PART AND EFFECTIVE DATE

5502002002 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 5502002002 5502000702 N/A
02 5502002002 5502001502 1984/08/01
03 5502002002 5502001602 1984/09/01
04 5502002002 5502002002 1984/10/01

MTU 396 Diesel Engine Models & Specifications

MTU 16 396 Diesel Engine

MTU 396 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
12V 396 TC54 N/A 1125 1800
12V 396 TC54 N/A 1310 1800
12V 396 TC64 N/A 960 1600
12V 396 TE64 N/A 1020 1600
12V 396 TE74 N/A 1500 1900
12V 396 TE74L N/A 1500 1900
12V 396 TE74L N/A 1500 1800
12V 396 TE84 N/A 1500 1900
12V 396 TE94 N/A 1680 2000
12V 396 TB94 N/A 1920 2100
