PART NUMBER 5582040406
ENGINE TYPE MTU 396 ENGINE

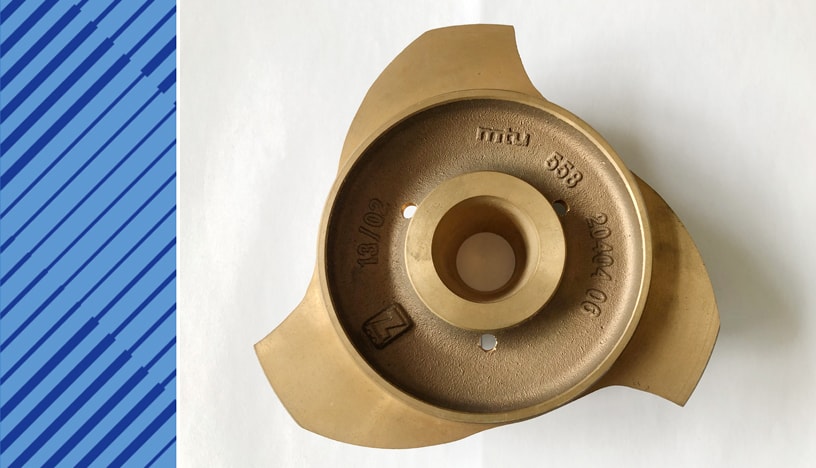

DESCRIPTION IMPELLER
DIMENSIONS G-CuAl11Ni
UNIT WEIGHT 1.836 KG
HS CODE 84139100
NATO-VERS.-NR. 2930123450738
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Install drawings
  • original parts

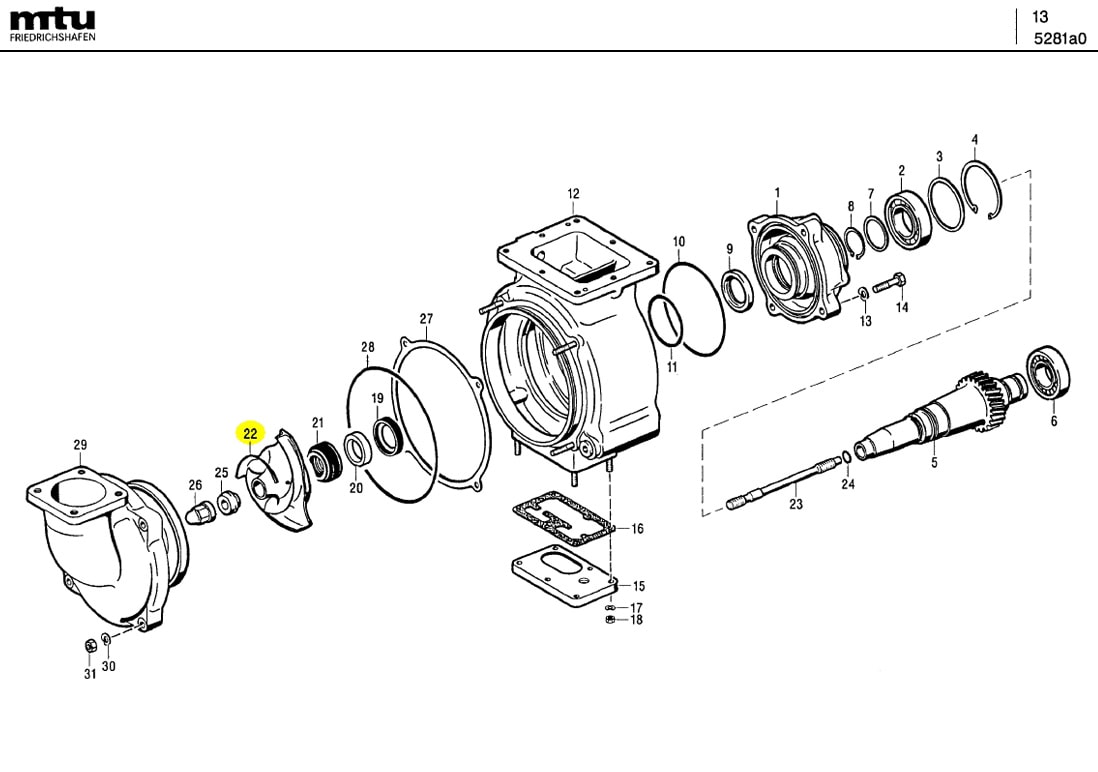

MTU 5582040406 Technical Engineering Exploded View

MTU 5582040406 Technical Engineering Exploded View

MTU 5582040406 Technical Engineering Exploded View

C/N Description Part-Number Qty
01 BEARING HOUSING 5582040019 01
02 GROOVE BALL BEARING 000625900178 01
03 ADJUSTING DISK 5559901440 01
03A ADJUSTING DISK 5559901540 01
03B ADJUSTING DISK 5559901640 01
03C ADJUSTING DISK 5559901740 01
03D ADJUSTING DISK 5559901840 01
03E ADJUSTING DISK 5559901940 01
03F ADJUSTING DISK 5559902040 01
04 SNAP RING 000472090000 01
05 DRIVE SHAFT 5582000002 01
06 BEARING CYLINDRICAL ROLLER 705100502035 01
07 ADJUSTING DISK 5559900640 01
07A ADJUSTING DISK 5559900740 01
07B ADJUSTING DISK 5559900840 01
07C ADJUSTING DISK 5559900940 01
07D ADJUSTING DISK 5559901040 01
07E ADJUSTING DISK 5559901140 01
07F ADJUSTING DISK 5559901240 01
08 SNAP RING 000471050000 01
09 SHAFT SEAL 0079978047 01
10 O-RING 700429165000 01
11 O-RING 700429083000 01
12 PUMP HOUSING 5582000103 01
13 WASHER SPRING B12 000137012202 04
14 HEX SCREW 000933012093 04
15 COVER 5582040203 01
16 GASKET 5582031680 01
17 WASHER SPRING B8 000137008203 06
18 NUT HEX 000934008008 06
19 GAITER 0002040479 01
20 COUNTERRING 0002040263 01
21 ROTARY SEAL 0002040716 01
22 IMPELLER 5582040406 01
23 STRESS BOLT 5509901019 01
24 O-RING 0039977848 01
25 THRUST RING 5502040063 01
26 NUT 5509900353 01
27 SPACER RING 5582040651 01
27A SPACER RING 5582040751 01
27B SPACER RING 5582040251 01
27C SPACER RING 5582040851 01
28 O-RING 700429230000 01
29 INLET ELBOW 5582040254 01
30 WASHER SPRING B10 000137010202 04
31 NUT HEX 000934010005 04

5582040406 SUPERSEDED PART AND EFFECTIVE DATE

5582040406 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 5582040406 5582040006 N/A
02 5582040406 5582040106 1991/04/01
03 5582040406 5582040306 1991/05/01
04 5582040406 5582040406 1991/06/01
05 5582040406/45 5582040306/45 N/A
06 5582040406/45 5582040406/45 1998/01/01

MTU 396 Diesel Engine Models & Specifications

MTU 16 396 Diesel Engine

MTU 396 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
12V 396 TC54 N/A 1125 1800
12V 396 TC54 N/A 1310 1800
12V 396 TC64 N/A 960 1600
12V 396 TE64 N/A 1020 1600
12V 396 TE74 N/A 1500 1900
12V 396 TE74L N/A 1500 1900
12V 396 TE74L N/A 1500 1800
12V 396 TE84 N/A 1500 1900
12V 396 TE94 N/A 1680 2000
12V 396 TB94 N/A 1920 2100
