PART NUMBER 5100850260
ENGINE TYPE MTU 396 ENGINE
DESCRIPTION PISTON RING
DIMENSIONS N/A
UNIT WEIGHT 0.005 KG
HS CODE 84099900
NATO-VERS.-NR. 2815123363113
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Install drawings
  • original parts

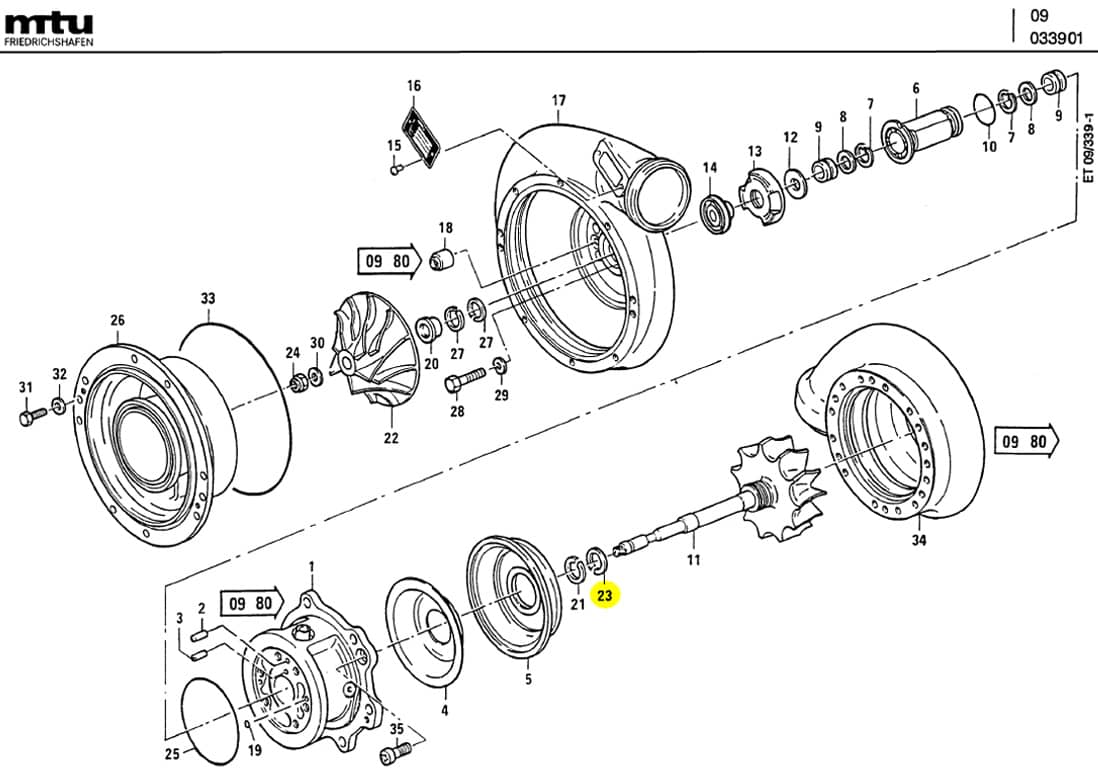

MTU 5100850260 Technical Engineering Exploded View

MTU 5100850160 Technical Engineering Exploded View

MTU 5100850260 Technical Engineering Exploded View

C/N Description Part-Number Qty
000 EXHAUST TURBOCHARGER 5100206600 01
01 BEARING HOUSING 5100801201 01
02 DOWEL PIN 5119910060 01
03 DOWEL PIN 000007005115 01
04 HEAT SHIELD 5100820326 01
05 HEAT SHIELD 5100810303 01
06 BEARING 5100251610 01
07 RING SNAP 000472028000 02
08 WASHER 5100250276 02
09 BEARING BUSHING 5100250050 02
10 O-RING 700429031000 01
11 TURBINE WHEEL 5100803921 01
12 WASHER 5100251576 01
13 THRUST BEARING 5100200310 01
14 WASHER 5100250876 01
15 PIN GROOVED 001476003017 02
16 PLATE 700425000049 01
17 COMPRESSOR HOUSING 5100212301 01
18 VALVE 5110200278 02
19 O-RING 700429005001 01
20 RING CARRIER 5100251310 01
21 PISTON RING 5100850160 01
22 COMPRESSOR WHEEL 5100253101 01
23 PISTON RING F/TURBOCHARGER 5100850260 01
24Z MAGNETIC NUT 5205300071 01
25 O-RING 700429105001 01
26 INTAKE HOUSING 5100211902 01
27 PISTON RING 5090850060 02
28 HEX SCREW 000931010105 06
29 WASHER SPRING B10 000137010202 06
30 WASHER 5100250376 01
31 HEX SCREW 000933008040 02
32 WASHER 000125008427 02
33 O-RING 700429210000 01
34 TURBINE HOUSING 5100801330 01
35 SCREW 700384010015 01

5100850260 SUPERSEDED PART AND EFFECTIVE DATE

5100850260 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 XT1310100304 5100850260 2022/01/10
