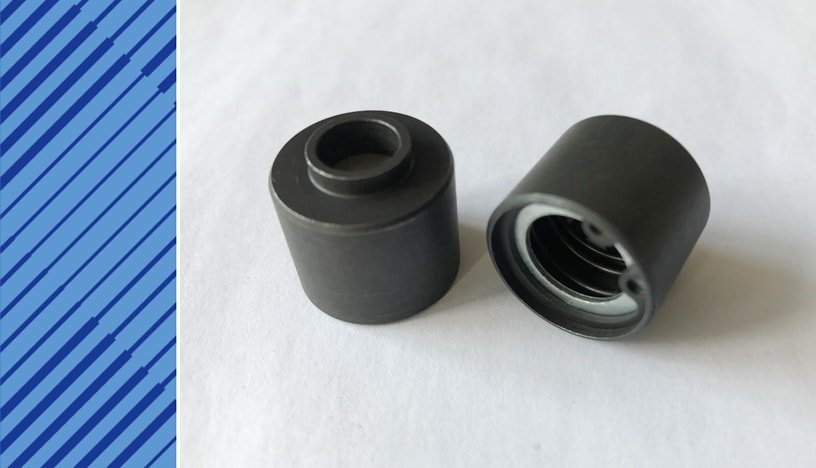

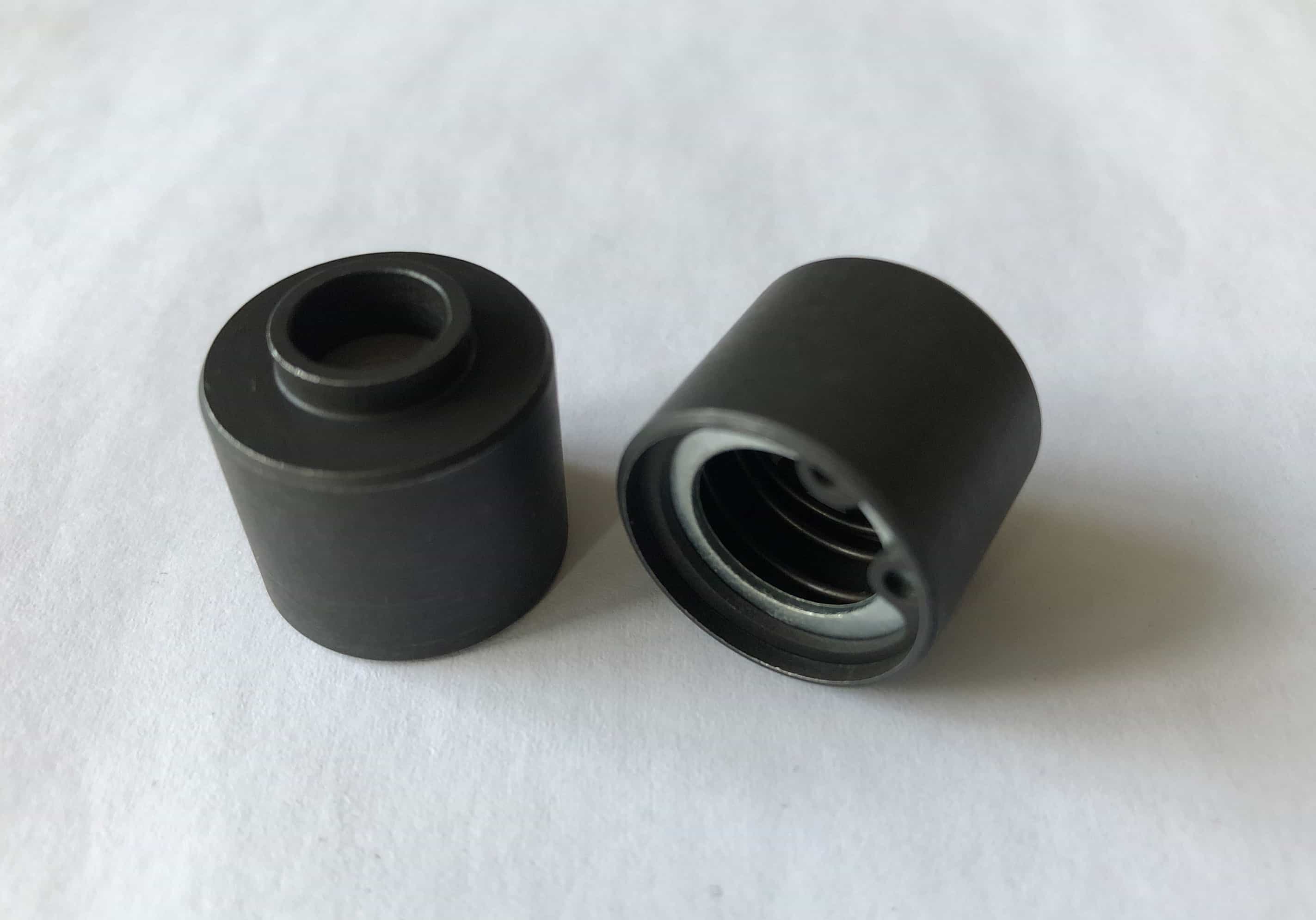

| PART NUMBER | 5110200278 |
| TURBO MODEL | ZR170 / 067 |
| DESCRIPTION | VALVE |
| DIMENSIONS | N/A |
| UNIT WEIGHT | 0.015 KG |
| HS CODE | 84814010 |
| NATO-VERS.-NR. | 4820123308879 |

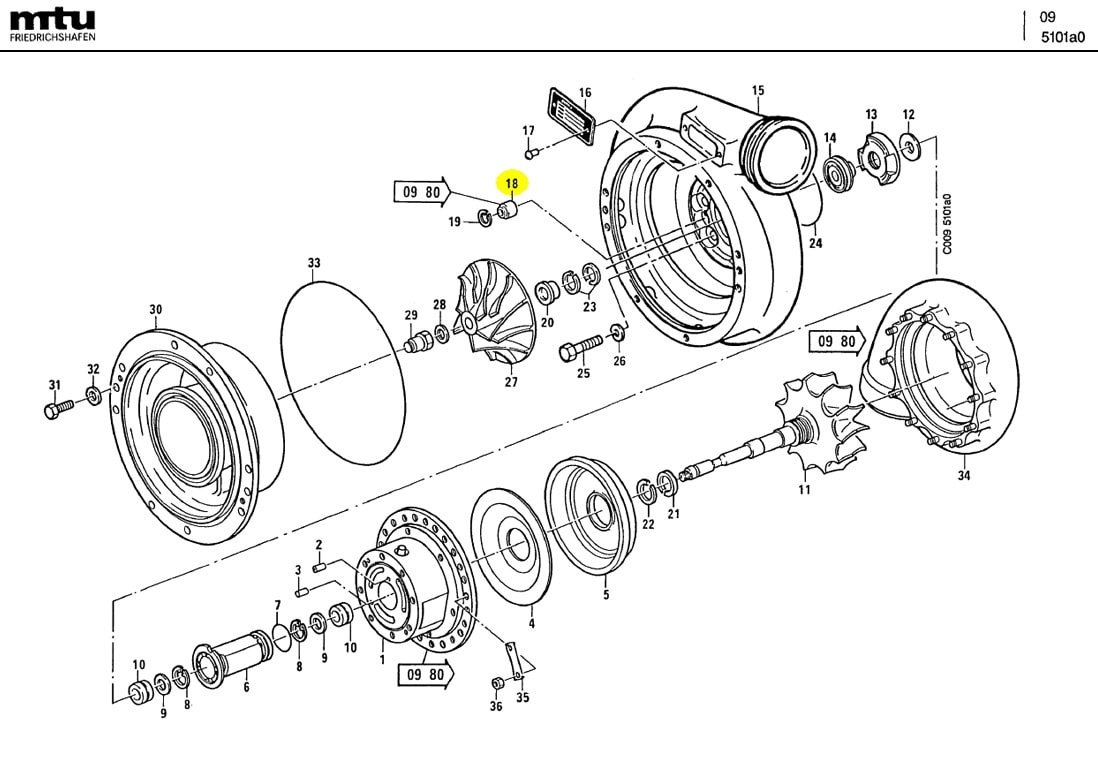

| C/N | Description | Part-Number | Qty |
|---|---|---|---|
| 000 | EXHAUST TURBOCHARGER | 5110206807 | 01 |
| 01 | BEARING HOUSING | 5110803201 | 01 |
| 02 | DOWEL PIN | 5119910060 | 01 |
| 03 | SPRING | 000007005115 | 01 |
| 04 | HEAT SHIELD | 5110820226 | 01 |
| 05 | HEAT SHIELD | 5110812603 | 01 |
| 06 | BEARING | 5110252210 | 01 |
| 07 | O-RING | 700429042001 | 01 |
| 08 | RING SNAP | 5119940041 | 02 |
| 09 | WASHER | 5110250052 | 02 |
| 10 | BEARING BUSHING | 5110250050 | 02 |
| 11 | TURBINE WHEEL | 5110800220 | 01 |
| 12 | WASHER | 5110250276 | 01 |
| 13 | THRUST BEARING | 5110200412 | 01 |
| 14 | WASHER | 5110251476 | 01 |
| 15 | COMPRESSOR HOUSING | 5110212714 | 01 |
| 16 | LABEL | 700425000049 | 01 |
| 17 | PIN GROOVED | 001476003017 | 02 |
| 18 | VALVE | 5110200278 | 02 |
| 19 | RING SNAP | 000472020000 | 02 |
| 20 | RING CARRIER | 5110252110 | 01 |
| 21 | PISTON RING F/TURBOCHARGER | 5110850560 | 01 |
| 22 | PISTON RING F/TURBOCHARGER | 5110850460 | 01 |
| 23 | RING SEAL | 5100850060 | 02 |
| 24 | O-RING | 700429105001 | 01 |
| 25 | HEX SCREW | 000931010105 | 08 |
| 26 | WASHER SPRING B10 | 000137010202 | 08 |
| 27 | COMPRESSOR WHEEL | 5110258201 | 01 |
| 28 | WASHER | 5110250376 | 01 |
| 29 | MAGNETIC NUT | 5205300171 | 01 |
| 30 | INTAKE HOUSING | 5110214802 | 01 |
| 31 | HEX SCREW | 304017008078 | 02 |
| 32 | WASHER | 000125008427 | 02 |
| 33 | 0-RING | 700429270001 | 01 |
| 34 | TURBINE HOUSING | 5110805730 | 01 |
| 35 | TAB WASHER | 5119940330 | 06 |
| 36 | HEX NUT | 5119900051 | 12 |
| C/N | New Part Number | Superseded Part Number | Valid From Date |
|---|---|---|---|
| 01 | 5110200278 | 5110200078 | N/A |
| 02 | 5110200278 | 5110210178 | 2003/01/01 |
| 03 | 5110200278 | 5110200178 | 2003/02/01 |
| 04 | 5110200278 | 5110210278 | 2003/03/01 |
| 05 | 5110200278 | 5110200278 | 2003/04/01 |
| Make | Year of construction | Power KW | U/MIN |
|---|---|---|---|
| 12V 396 TC54 | N/A | 1125 | 1800 |
| 12V 396 TC54 | N/A | 1310 | 1800 |
| 12V 396 TC64 | N/A | 960 | 1600 |
| 12V 396 TE64 | N/A | 1020 | 1600 |
| 12V 396 TE74 | N/A | 1500 | 1900 |
| 12V 396 TE74L | N/A | 1500 | 1900 |
| 12V 396 TE74L | N/A | 1500 | 1800 |
| 12V 396 TE84 | N/A | 1500 | 1900 |
| 12V 396 TE94 | N/A | 1680 | 2000 |
| 12V 396 TB94 | N/A | 1920 | 2100 |
