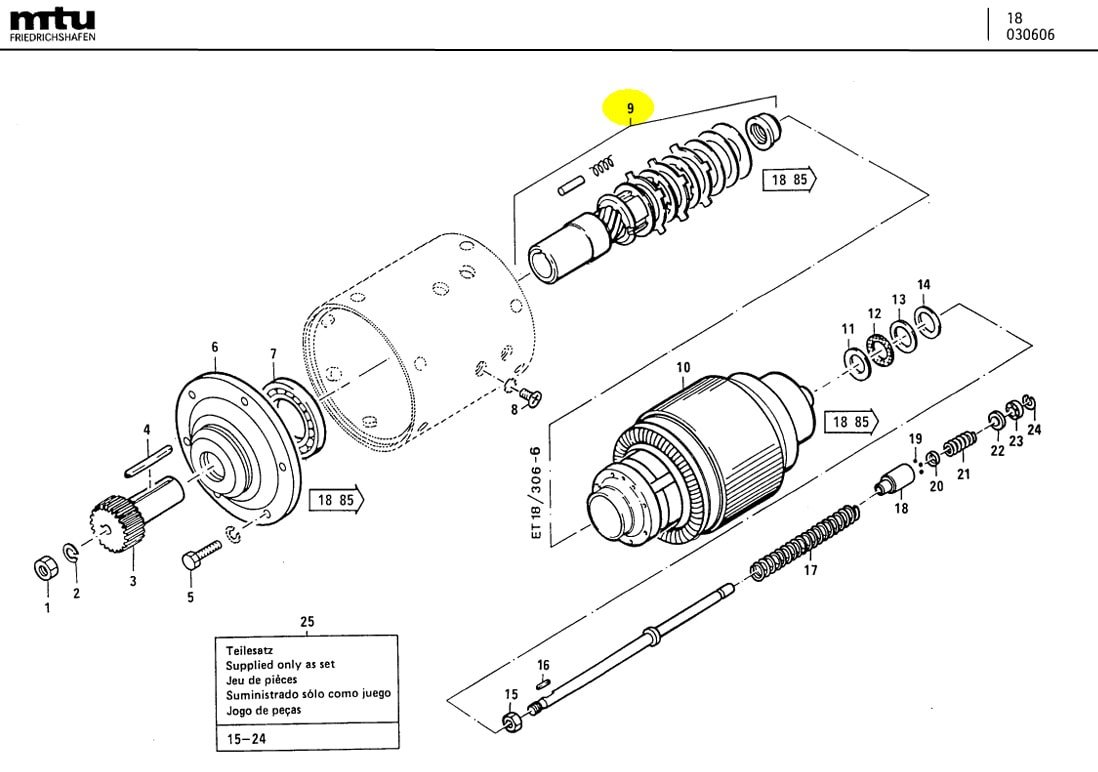

C/N | Description | Part-Number | Qty |
---|---|---|---|
01 | NUT | 8691510047 | 01 |
02 | LOCK WASHER | 8699940030 | 01 |
03 | PINION | 000N05009/1 | 01 |
04 | KEY | 006885008013 | 01 |
05 | SCREW | 000933006218 | 06 |
06 | DRIVE-END BEARING | 8691510460 | 01 |
07 | GROOVED BALL BEARING | 000625916011 | 01 |
08 | COUNTERSUNK HD SCREW | 8699900006 | 12 |
09 | MULTIPLE-DISC CLUTCH | 0001510433 | 01 |
10 | ARMATURE | 000N05726/1 | 01 |
11 | WASHER | 0001510452 | 01 |
12 | INSULATING WASHER | 0001510576 | 01 |
13 | WASHER | 0001510352 | 01 |
14 | WASHER | 0001510552 | 01 |
15 | NUT | 8691510047 | 01 |
16 | KEY | 006885003000 | 01 |
17 | HELICAL SPRING OUTER | 0019931701 | 01 |
18 | GUIDE BUSHING | 8691510064 | 01 |
19 | BALL | 005401304000 | 07 |
20 | RETAINING RING | =1 000 202 002 | 01 |
21 | PRESSURE SPRING | 8699930220 | 01 |
22 | SHIM | 0001511276 | 01 |
23 | BALL BEARING | 0019819325 | 01 |
24 | SNAP RING | 000472016000 | 01 |
C/N | New Part Number | Superseded Part Number | Valid From Date |
---|---|---|---|
01 | 0001510433 | 000N05737/1 | N/A |
02 | 0001510433 | 0001510433 | 1987/01/01 |
Make | Year of construction | Power KW | U/MIN |
---|---|---|---|
12V 396 TC54 | N/A | 1125 | 1800 |
12V 396 TC54 | N/A | 1310 | 1800 |
12V 396 TC64 | N/A | 960 | 1600 |
12V 396 TE64 | N/A | 1020 | 1600 |
12V 396 TE74 | N/A | 1500 | 1900 |
12V 396 TE74L | N/A | 1500 | 1900 |
12V 396 TE74L | N/A | 1500 | 1800 |
12V 396 TE84 | N/A | 1500 | 1900 |
12V 396 TE94 | N/A | 1680 | 2000 |
12V 396 TB94 | N/A | 1920 | 2100 |
