PART NUMBER 0010928801
ENGINE TYPE MTU 396 ENGINE

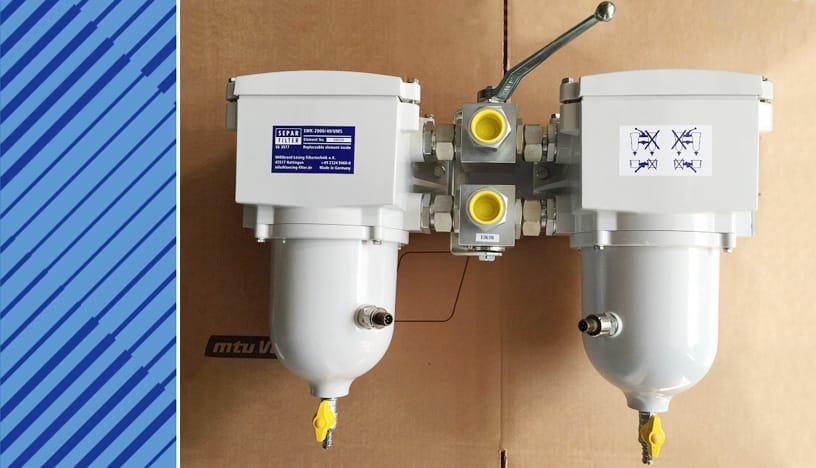

DESCRIPTION FUEL PREFILTER
DIMENSIONS N/A
UNIT WEIGHT 37.000 KG
HS CODE 84212300
NATO-VERS.-NR. N/A
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Install drawings
  • original parts

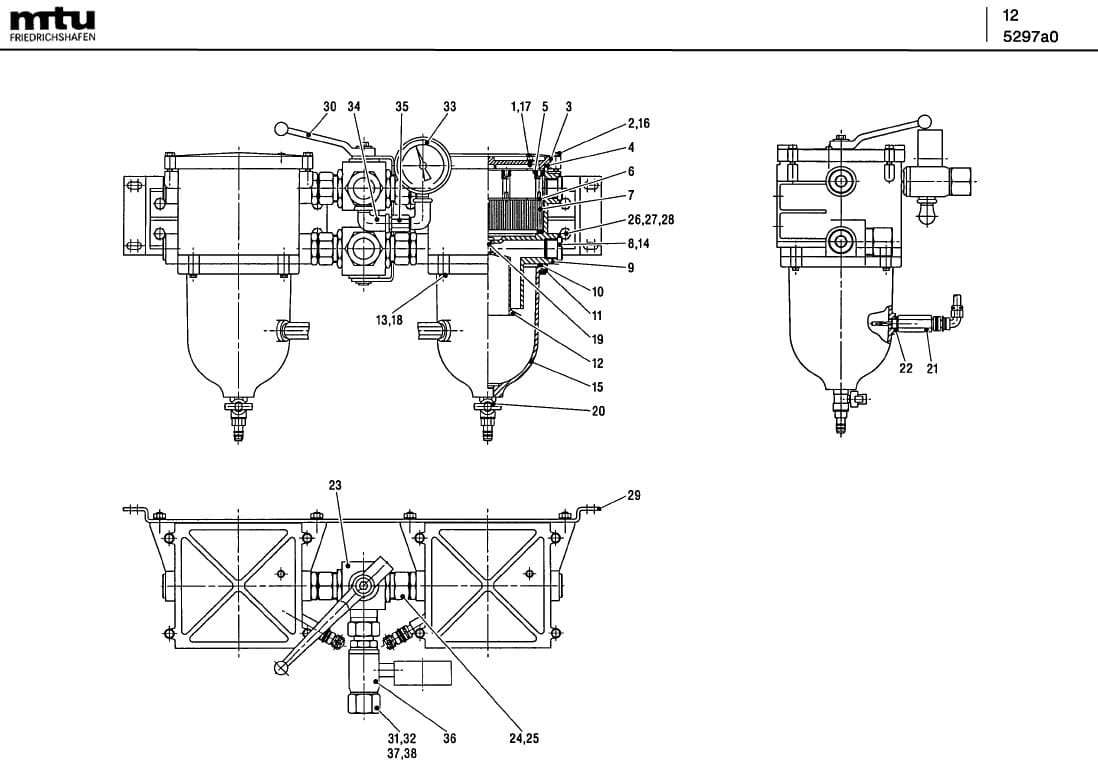

MTU 0010928801 Technical Engineering Exploded View

MTU 0010928801 Technical Engineering Exploded View

MTU 0010928801 Technical Engineering Exploded View

C/N Description Part-Number Qty
000 FUEL PREFILTER 0010928801 01
01 VENT PLUG Z=30408 02
02 SCREW Z=30404 08
03 COVER Z=30435 02
04 GASKET Z=30440 02
05 SPRING Z=30444 24
06 FRAME Z=30443 04
07 FILTER ELEMENT 0000925105 02
08 GASKET Z=30544 04
09 SOUSING Z=30434 02
10 GASKET Z=30442 02
11 RETAINER Z=30446 02
12 CENTRIFUGE Z=30438 02
13 HEX SCREW 000933006090 08
14 PLUG Z=30445 04
15 HOUSING Z=30457 02
16 WASHER 000125008427 08
17 SEALING RING Z=30558 02
18 WASHER 000125006431 08
19 SCREW Z=30560 02
20 COCK Z=30456 02
21 MALE CONNECTOR 0005316785 02
21A LEVEL MONITOR 0005351003 02
22 WASHER A COP 8490920200 02
23 BALL COCK Z=30467 01
24 UNION Z=30468 04
25 GASKET Z=30544 04
26 HEX SCREW 000933010035 08
27 WASHER 000125010524 16
28 NUT Z=30178 08
29 PLATE Z=30470 01
30 BELLCRANK Z=30493 01
31 UNION NUT Z=30340 02
32 CUTTING RING Z=30341 02
33 GAUGE VACUUM 8690920024 01
34 BRACKET Z=30368 02
35 SLEEVE Z=30383 01
36 ADAPTER Z=30385 01
37 UNION NUT Z=30281 02
38 SEALING CONE Z=30280 02

0010928801 SUPERSEDED PART AND EFFECTIVE DATE

0010928801 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 0010928801/87 0010925701 N/A
02 0010928801/87 0010922701 1999/12/01
03 0010928801/87 0010925201 2000/01/01
04 0010928801/87 5990178350 2000/02/01
05 0010928801/87 0010928801 2000/03/01
06 0010928801/87 0010928801/87 2013/07/01

MTU 396 Diesel Engine Models & Specifications

MTU 16 396 Diesel Engine

MTU 396 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
12V 396 TC54 N/A 1125 1800
12V 396 TC54 N/A 1310 1800
12V 396 TC64 N/A 960 1600
12V 396 TE64 N/A 1020 1600
12V 396 TE74 N/A 1500 1900
12V 396 TE74L N/A 1500 1900
12V 396 TE74L N/A 1500 1800
12V 396 TE84 N/A 1500 1900
12V 396 TE94 N/A 1680 2000
12V 396 TB94 N/A 1920 2100
