| PART NUMBER | 5500100061 |
| ENGINE TYPE | MTU 396 ENGINE |

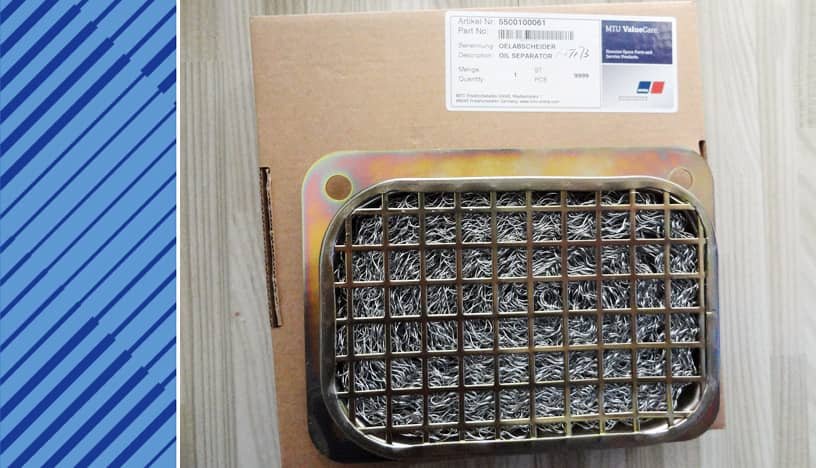

| DESCRIPTION | OIL SEPARATOR |
| DIMENSIONS | N/A |
| UNIT WEIGHT | 0.411 KG |
| HS CODE | 84212300 |
| NATO-VERS.-NR. | 4730123169209 |

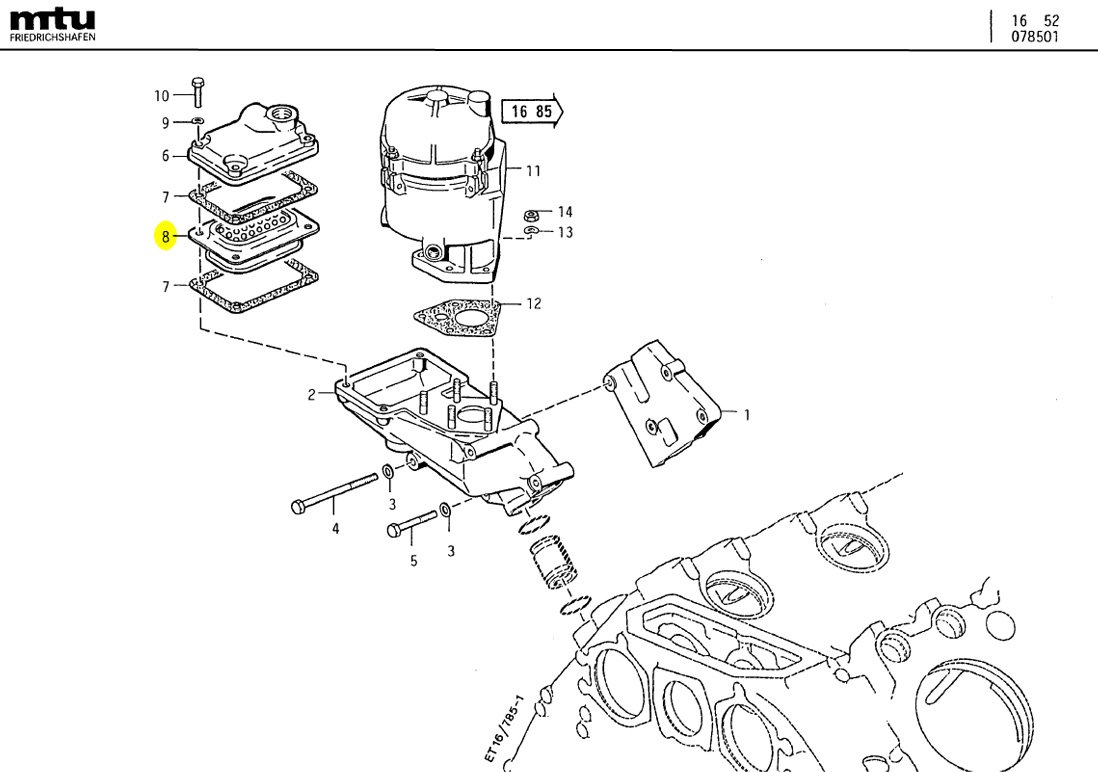

| C/N | Description | Part-Number | Qty |
|---|---|---|---|
| 01 | END PLATE AUX PTO END | 5560160389 | 01 |
| 02 | VENT HOUSING | 5560105370 | 01 |
| 03 | WASHER | 5509901540 | 04 |
| 04 | HEX SCREW | 000931010345 | 02 |
| 06 | COVER | 5550180711 | 01 |
| 07 | GASKET | 5500180280 | 02 |
| 08 | OIL SEPARATOR | 5500100061 | 01 |
| 09 | WASHER | 000125008427 | 04 |
| 10 | HEX SCREW | 000933008118 | 04 |
| 11 | CENTRIFUG OIL FILTER | 135L90712/1 | 01 |
| 12 | GASKET | 5600511280 | 01 |
| 13 | WASHER | 000125010524 | 05 |
| 14 | WASHER | 000934010005 | 05 |
| C/N | New Part Number | Superseded Part Number | Valid From Date |
|---|---|---|---|
| 01 | 5500100061 | 3931070220 | 2009/01/01 |
| Make | Year of construction | Power KW | U/MIN |
|---|---|---|---|
| 12V 396 TC54 | N/A | 1125 | 1800 |
| 12V 396 TC54 | N/A | 1310 | 1800 |
| 12V 396 TC64 | N/A | 960 | 1600 |
| 12V 396 TE64 | N/A | 1020 | 1600 |
| 12V 396 TE74 | N/A | 1500 | 1900 |
| 12V 396 TE74L | N/A | 1500 | 1900 |
| 12V 396 TE74L | N/A | 1500 | 1800 |
| 12V 396 TE84 | N/A | 1500 | 1900 |
| 12V 396 TE94 | N/A | 1680 | 2000 |
| 12V 396 TB94 | N/A | 1920 | 2100 |
