| PART NUMBER | 0000533635 |
| ENGINE TYPE | MTU 396 ENGINE |

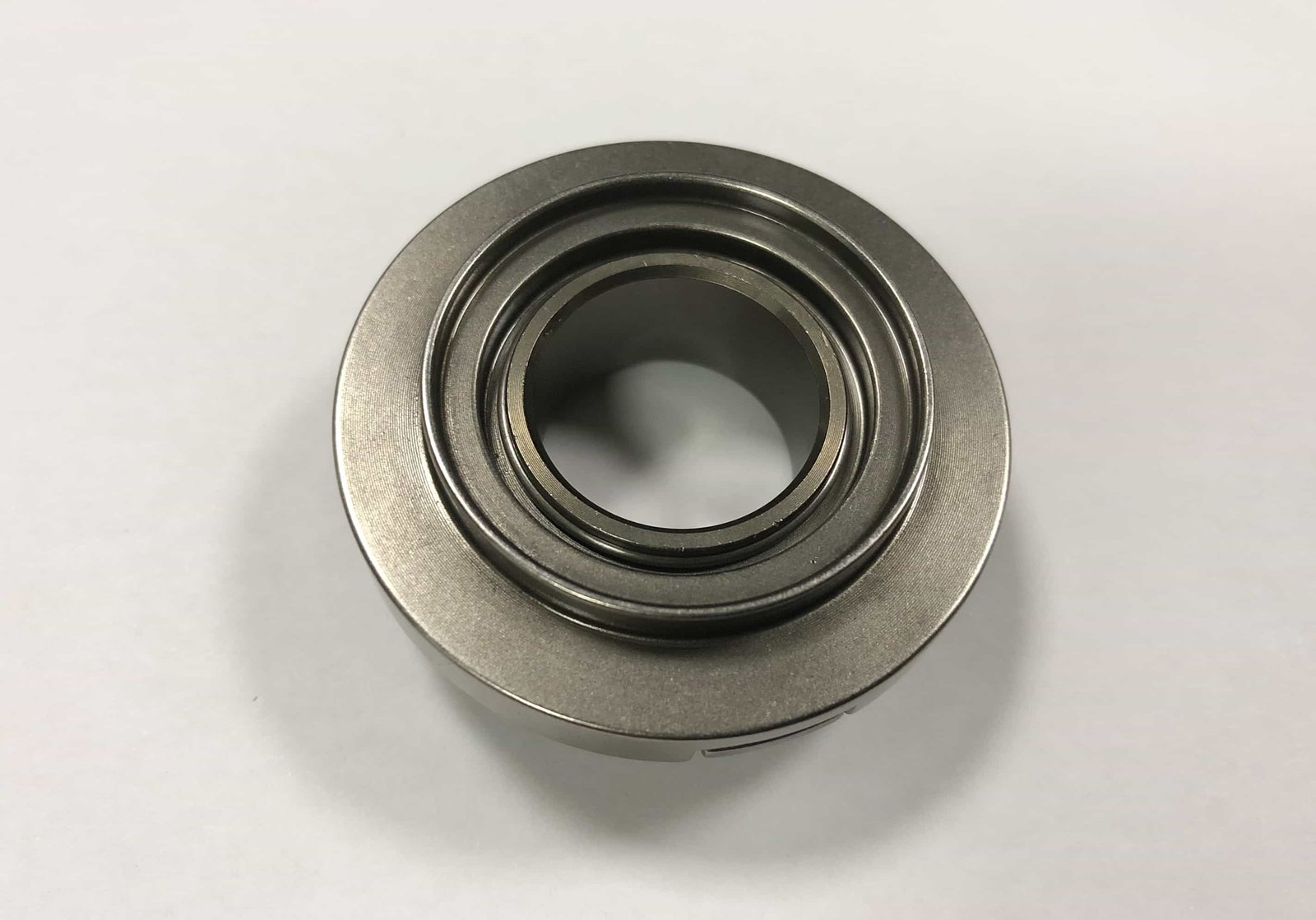

| DESCRIPTION | VALVE ROTATOR |
| DIMENSIONS | N/A |
| UNIT WEIGHT | 0.094 KG |
| HS CODE | 84099900 |
| NATO-VERS.-NR. | 2815123170444 |

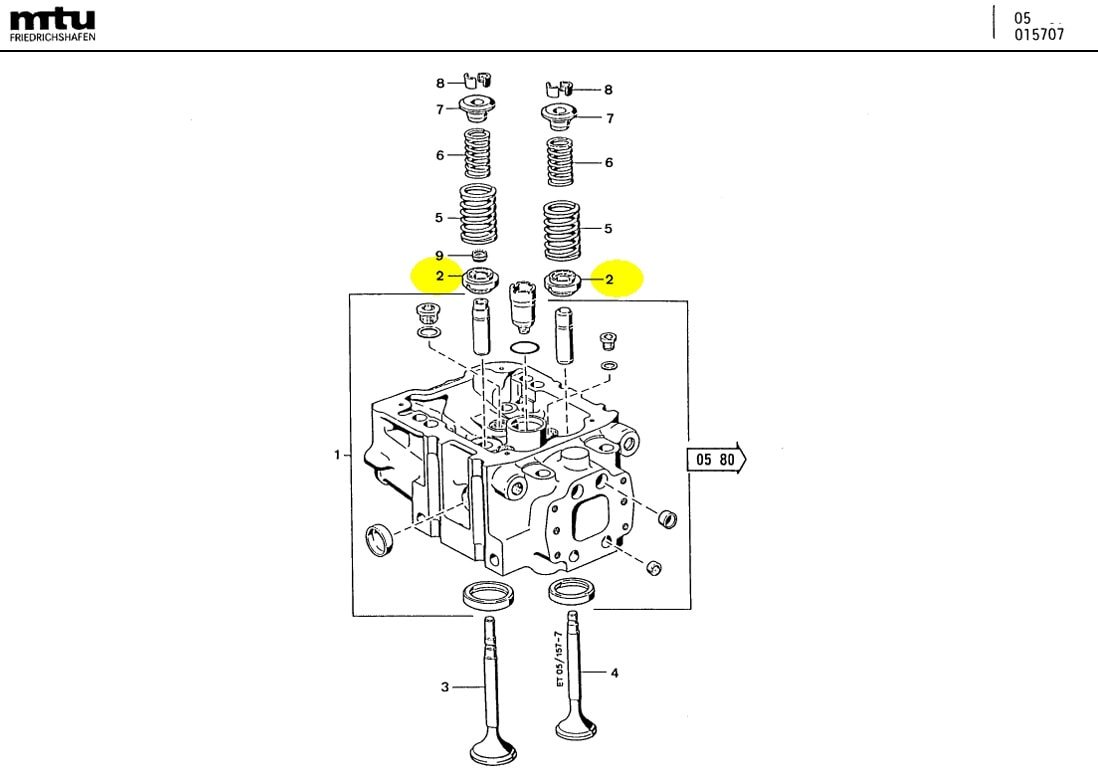

| C/N | Description | Part-Number | Qty |
|---|---|---|---|
| 000 | CYLINDER HEAD W/VALVE | 5550105141 | 01 |
| 01 | CYLINDER HEAD | 5550105141/01 | 01 |
| 02 | VALVE ROTATOR | 0000533635 | 04 |
| 03 | INLET VALVE | 5500530401 | 02 |
| 04 | EXHAUST VALVE | 5550530105 | 02 |
| 05 | VALVE SPRING OUTER | 5500530020 | 04 |
| 06 | VALVE SPRING INNER | 5500530022 | 04 |
| 07 | VALVE SPRING INNER | 5500530025 | 04 |
| 08 | VALVE COLLET | 0000530126 | 08 |
| 09 | VALVE STEM SEAL | 0000530361 | 02 |
| C/N | New Part Number | Superseded Part Number | Valid From Date |
|---|---|---|---|
| 01 | 0000533635 | 0000532435 | N/A |
| 02 | 0000533635 | 0000533135 | 1987/10/01 |
| 03 | 0000533635 | 0000533635 | 1987/11/01 |
| Make | Year of construction | Power KW | U/MIN |
|---|---|---|---|
| 12V 396 TC54 | N/A | 1125 | 1800 |
| 12V 396 TC54 | N/A | 1310 | 1800 |
| 12V 396 TC64 | N/A | 960 | 1600 |
| 12V 396 TE64 | N/A | 1020 | 1600 |
| 12V 396 TE74 | N/A | 1500 | 1900 |
| 12V 396 TE74L | N/A | 1500 | 1900 |
| 12V 396 TE74L | N/A | 1500 | 1800 |
| 12V 396 TE84 | N/A | 1500 | 1900 |
| 12V 396 TE94 | N/A | 1680 | 2000 |
| 12V 396 TB94 | N/A | 1920 | 2100 |
