PART NUMBER 735074100000
ENGINE TYPE MTU 396 ENGINE
DESCRIPTION COVER
DIMENSIONS N/A
UNIT WEIGHT 0.090 KG
HS CODE 73269098
NATO-VERS.-NR. 2815123683730
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Install drawings
  • original parts

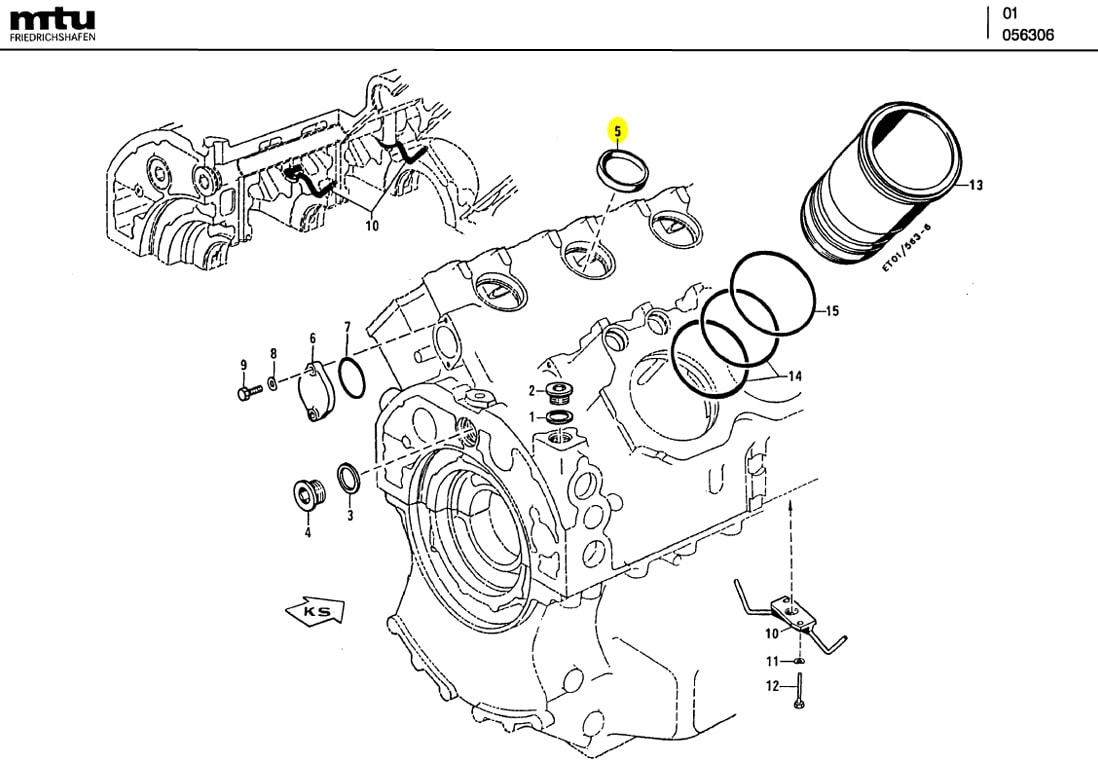

MTU 735074100000 Technical Engineering Exploded View

MTU 5550101251 Technical Engineering Exploded View

MTU 735074100000 Technical Engineering Exploded View

C/N Description Part-Number Qty
01 COPPER SEALING RING 007603045101 02
02 PLUG 000908045003 02
03 COPPER SEALING RING 007603048101 02
04 PLUG 000908048004 02
05 COVER 735074100000 12
06 COVER 5500110132 01
07 O-RING 700429075002 02
08 WASHER SPRING B8 000137008203 04
09 HEX SCREW 000933008115 04
10 OIL SPRAY NOZZLE 5550101251 06
11 WASHER SPRING B8 000137008203 12
12 HEX SCREW 000933008242 12
13 CYLINDER LINER SIZE 0-0 5550111610 12
13A CYLINDER LINER SIZE 0-1 5550111710 00
13B CYLINDER LINER SIZE 0-2 5550111810 00
13C CYLINDER LINER SIZE 1-1 5550111910 00
13D CYLINDER LINER SIZE 1-2 5550112010 00
13E CYLINDER LINER SIZE 2-2 5550112110 00
14 SEALING RING 5500110659 24
15 O-RING 5500110559 12

735074100000 SUPERSEDED PART AND EFFECTIVE DATE

735074100000 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 0000110032 700119000100 N/A
02 0000110032 735074100000 1991/01/01
03 0000110032 5500180002 1991/02/01
04 0000110032 0000110032 1991/03/01

MTU 396 Diesel Engine Models & Specifications

MTU 16 396 Diesel Engine

MTU 396 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
12V 396 TC54 N/A 1125 1800
12V 396 TC54 N/A 1310 1800
12V 396 TC64 N/A 960 1600
12V 396 TE64 N/A 1020 1600
12V 396 TE74 N/A 1500 1900
12V 396 TE74L N/A 1500 1900
12V 396 TE74L N/A 1500 1800
12V 396 TE84 N/A 1500 1900
12V 396 TE94 N/A 1680 2000
12V 396 TB94 N/A 1920 2100
