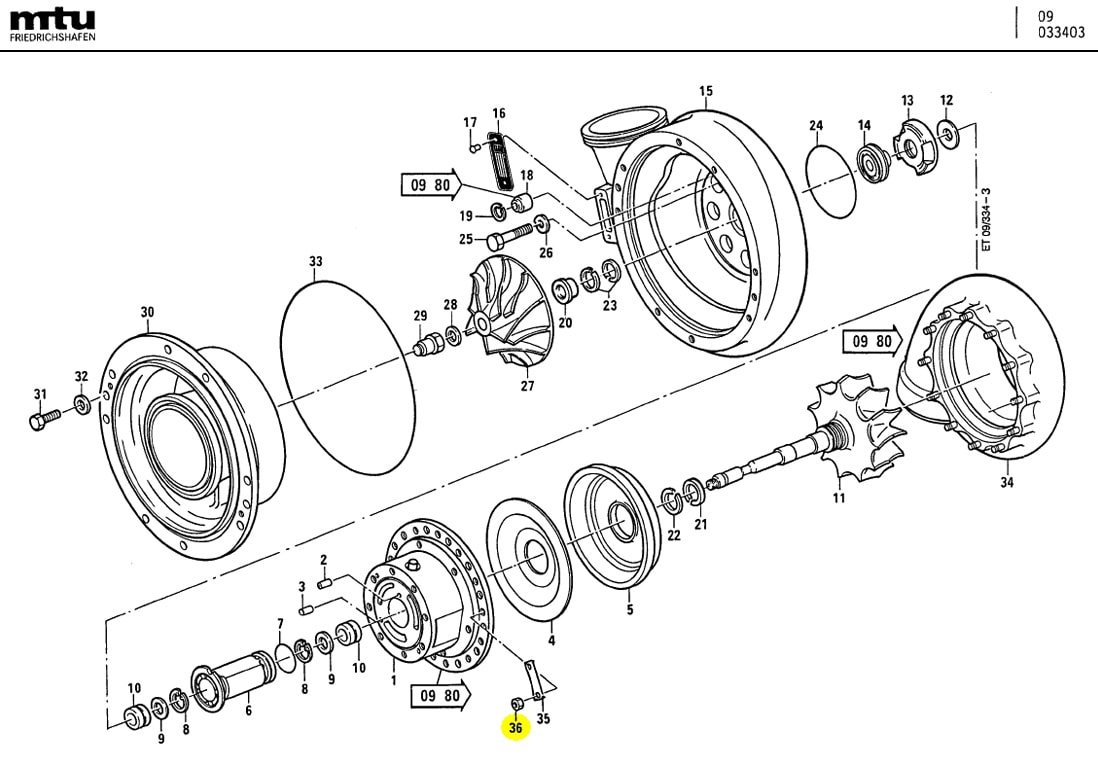

C/N | Description | Part-Number | Qty |
---|---|---|---|
000 | EXHAUST TURBOCHARGER | 5110206807 | 01 |
01 | BEARING HOUSING | 5110803201 | 01 |
02 | DOWEL PIN | 5119910060 | 01 |
03 | SPRING | 000007005115 | 01 |
04 | HEAT SHIELD | 5110820226 | 01 |
05 | HEAT SHIELD | 5110812603 | 01 |
06 | BEARING | 5110252210 | 01 |
07 | O-RING | 700429042001 | 01 |
08 | RING SNAP | 5119940041 | 02 |
09 | WASHER | 5110250052 | 02 |
10 | BEARING BUSHING | 5110250050 | 02 |
11 | TURBINE WHEEL | 5110800220 | 01 |
12 | WASHER | 5110250276 | 01 |
13 | THRUST BEARING | 5110200412 | 01 |
14 | WASHER | 5110251476 | 01 |
15 | COMPRESSOR HOUSING | 5110212714 | 01 |
16 | LABEL | 700425000049 | 01 |
17 | PIN GROOVED | 001476003017 | 02 |
18 | VALVE | 5110200278 | 02 |
19 | RING SNAP | 000472020000 | 02 |
20 | RING CARRIER | 5110252110 | 01 |
21 | PISTON RING F/TURBOCHARGER | 5110850560 | 01 |
22 | PISTON RING F/TURBOCHARGER | 5110850460 | 01 |
23 | RING SEAL | 5100850060 | 02 |
24 | O-RING | 700429105001 | 01 |
25 | HEX SCREW | 000931010105 | 08 |
26 | WASHER SPRING B10 | 000137010202 | 08 |
27 | COMPRESSOR WHEEL | 5110258201 | 01 |
28 | WASHER | 5110250376 | 01 |
29 | MAGNETIC NUT | 5205300171 | 01 |
30 | INTAKE HOUSING | 5110214802 | 01 |
31 | HEX SCREW | 304017008078 | 02 |
32 | WASHER | 000125008427 | 02 |
33 | 0-RING | 700429270001 | 01 |
34 | TURBINE HOUSING | 5110805730 | 01 |
35 | TAB WASHER | 5119940330 | 06 |

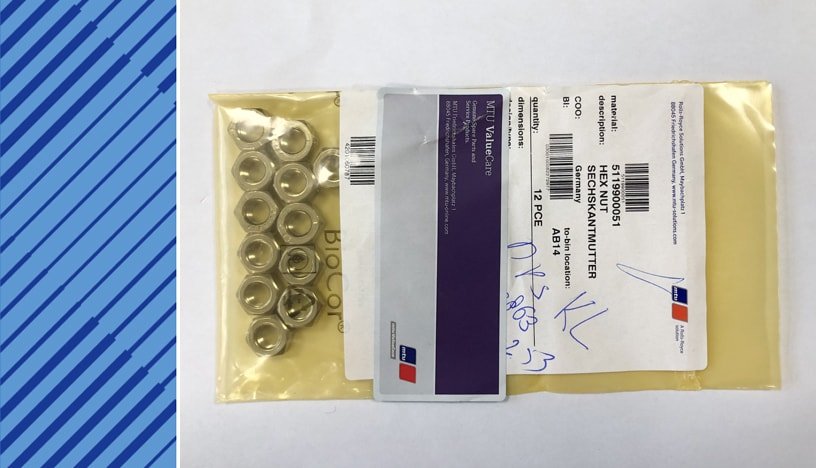

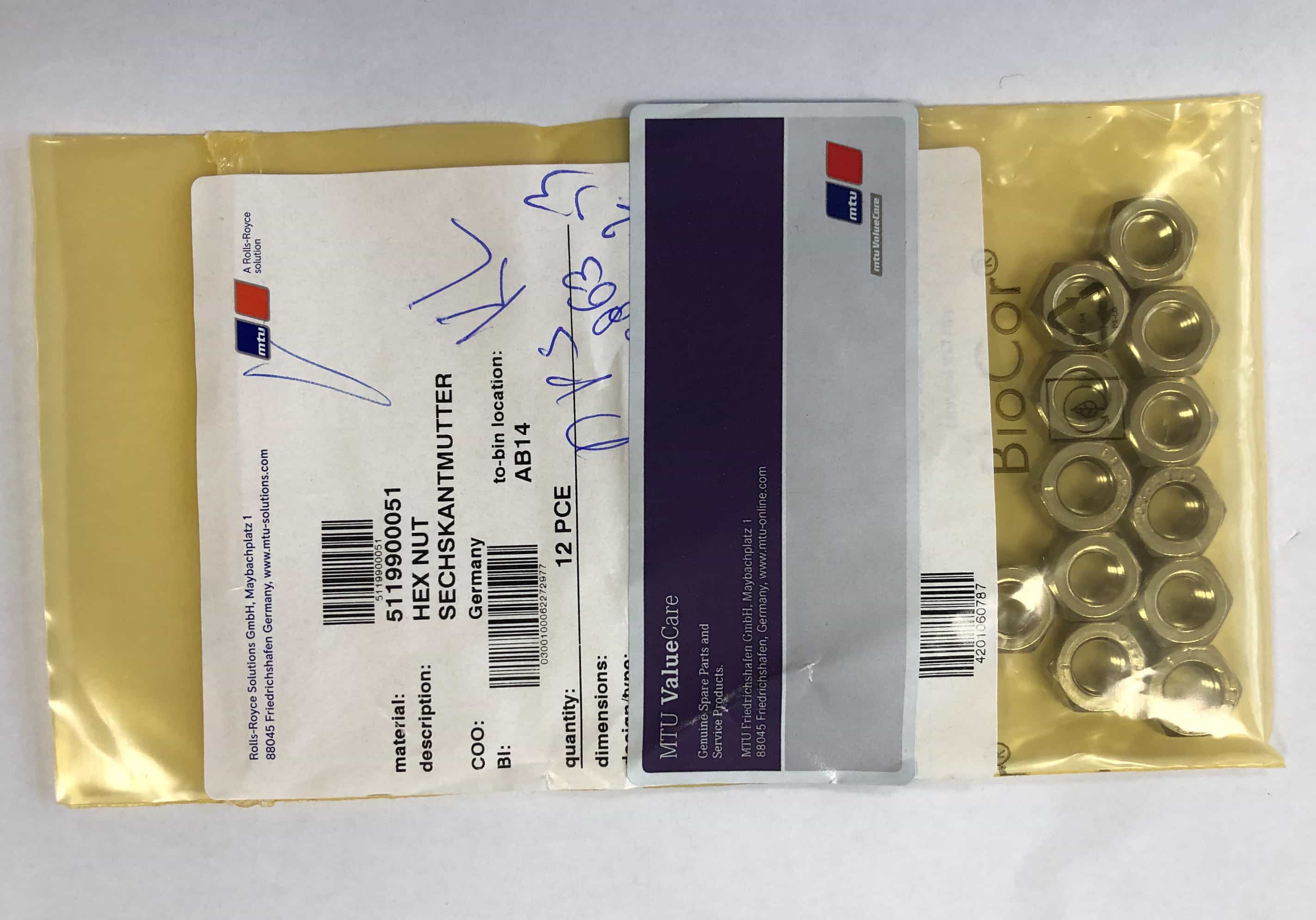

36 | HEX NUT | 5119900051 | 12 |
C/N | New Part Number | Superseded Part Number | Valid From Date |
---|---|---|---|
01 | 5119900051 | 5119900051/45 | N/A |
02 | 5119900051 | 5119900051 | 2018/01/23 |
Make | Year of construction | Power KW | U/MIN |
---|---|---|---|
12V 396 TC54 | N/A | 1125 | 1800 |
12V 396 TC54 | N/A | 1310 | 1800 |
12V 396 TC64 | N/A | 960 | 1600 |
12V 396 TE64 | N/A | 1020 | 1600 |
12V 396 TE74 | N/A | 1500 | 1900 |
12V 396 TE74L | N/A | 1500 | 1900 |
12V 396 TE74L | N/A | 1500 | 1800 |
12V 396 TE84 | N/A | 1500 | 1900 |
12V 396 TE94 | N/A | 1680 | 2000 |
12V 396 TB94 | N/A | 1920 | 2100 |
