MTU 396 PARTS | 5601400441 | V-BAND CLAMP

5601400441 V-BAND CLAMP

Other
Other5591421180 GASKET5591422180 GASKET5541870180 GASKET0000943409 INTAKE MANIFOLD8699970212 O-RING8692030121 ACTUATING ELEMENT8699970213 O-RING5532031580 GASKET5532031280 GASKET5502010276 THRUST WASHER5592010307 IMPELLER700386032000 SHAFT SEAL5562010105 COOLANT PUMP SHAFT5110800420 TURBINE WHEEL5110820226 HEAT SHIELD5110812603 HEAT SHIELD5842030252 WASHER5842030362 PIN5842030562 PIN0002033288 ACTUATOR5552030388 SLIDE VALVE5502035780 GASKET5502035680 GASKET5561421884 SHIM513D01017/1 GASKET5372030880 GASKET5500500225 ROLLER TAPPET5550630180 GASKET5500530025 SPRING RETAINER5370780038 DAMPER STRIP0001750080 GASKET5590982680 GASKET5552035639 FLANGE536E03003/1 BUFFER0001536132 PRESSURE MONITOR5502030060 SIGHT GLASS5502032080 GASKET0001510433 MULTIPLE-DISC CLUTCH5119900051 HEX NUT5110200278 VALVE5110251476 WASHER0000533635 VALVE ROTATOR5110803201 BEARING HOUSING5110800220 TURBINE WHEEL5100850060 RING SEALX00018687 WASHER5110200510 THRUST BEARING5550101251 OIL SPRAY NOZZLE735074100000 COVER0030947404 AIR FILTER ELEMENT0005360101 ILLUM PUSHBUTTON0005360201 SWITCH5550100051 NOZZLE HOLDER W/NOZZLE5550100651 NOZZLE HOLDER W/NOZZLE0030948104 AIR FILTER ELEMENT5500180280 GASKET0045426917 TEMPERATURE MONITOR5591420020 GUARD PLATE5119940330 TAB WASHER000007005115 DOWEL PIN5550162320 CYLINDER HEAD GASKET5550162420 CYLINDER HEAD GASKET5582040406 IMPELLER5590981380 SEALING RING0189978947 SEAL REAR CRANKSHAFT5119910060 DOWEL PIN5110252210 BEARING5502003201 SEAWATER PUMP5550161420 CYLINDER HEAD GASKET0000530361 VALVE STEM SEAL5110252110 RING CARRIER0030944304 AIR FILTER5100250050 BEARING BUSHING5500100330 CYLINDER HEAD COVER8692030530 PUMP8690920024 GAUGE VACUUM0000925105 FILTER ELEMENT0010928801 FUEL PREFILTERZ=30467 BALL COCK0045457528 BLADE RECEPTACLE0021540506 TRANSISTOR REGULATOR0001536720 SPEED SENSOR0039978648 SEAL ROTARY PUMP5502002002 DRIVE SHAFT8692040010 RING THRUST0049979947 SEAL SHAFT5502040176 PLATE CONTROL WASHER000908016001 THREADED PLUG000908010002 SCREWED PLUG5559901501 SCREW700429028001 O-RING5500980280 GASKET700429270001 O-RING000933008040 HEX SCREW5205300171 MAGNETIC NUT5110850460 PISTON RING5110850560 PISTON RING5110250576 WASHER5110250050 BEARING BUSHING700429042001 O-RING5501840832 VALVE PISTON5551800015 PRESS LIMITING VALVE700429150001 O-RING0002010418 COUNTERRING5592010007 IMPELLER070852035000 SLOTTED NUT270952035100 TAB WASHER0009813527 ANGLR-CONT BALL BRG5552010010 BEARING HOUSING5552010005 COOLANT PUMP SHAFT0079977247 SHAFT SEAL0002017519 ROTARY SEAL5370550050 BUSHING700429260000 O-RING5500160121 GASKET0020172112 HOLE-TYPE NOZZLE5550102451 NOZZLE HOLDER W/NOZZLE5550170553 PRESSURE SLEEVE5550170013 THRUST SCREW0000170660 CE RING5500170260 SUPPORT RING0029977940 SEALING RING700429014000 O-RING5551800122 OIL LINE5500160069 SCREW700429021000 O-RING5550160095 SPACER PLATE5500160597 CLAMP700429040003 O-RING700429036001 O-RING5501872401 PIPE5500160119 SEALING RING5500160432 PIPE8700380171 CONROD BOLT5500530232 VALVE SEAT INSERT EXHAUST5500531231 VALVE SEAT INSERT INLET5550170053 PROTECTIVE SLEEVE0000530126 VALVE COLLET5500530020 VALVE SPRING OUTER5550530105 EXHAUST VALVE5500530401 INLET VALVE5550105141 CYLINDER HEAD W/VALVE5550330130 CRANKSHAFT BEARING SIZE 0-05550302160 CONROD BEARING SIZE 0-05550307540 CRANKSHAFT BEARING SIZE 0-05501800106 IDLER GEAR8381810625 BEARING PIN5500160405 CYLINDER HEAD COVER5501801015 PRESS RELIEF VALVE5501801115 PRESS RELIEF VALVE5501800915 PRESS LIMITING VALVE5501800016 OIL FILTER ELEMENT5500100061 OIL SEPARATOR5500500334 ROCKER ARM EXHAUST5500500333 ROCKER ARM INLET5110809821 TURBINE WHEEL5100850260 PISTON RING5100850160 PISTON RING5502040403 COVER5502040906 IMPELLER
PART NUMBER 5601400441
ENGINE TYPE MTU 396 ENGINE
DESCRIPTION V-BAND CLAMP
DIMENSIONS 160 X 5,5
UNIT WEIGHT 0.240 KG
HS CODE 73269098
NATO-VERS.-NR. 5342123150937
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Part details
  • original parts

MTU 396 ENGINE SPARE PARTS 5601400441 V-BAND CLAMP

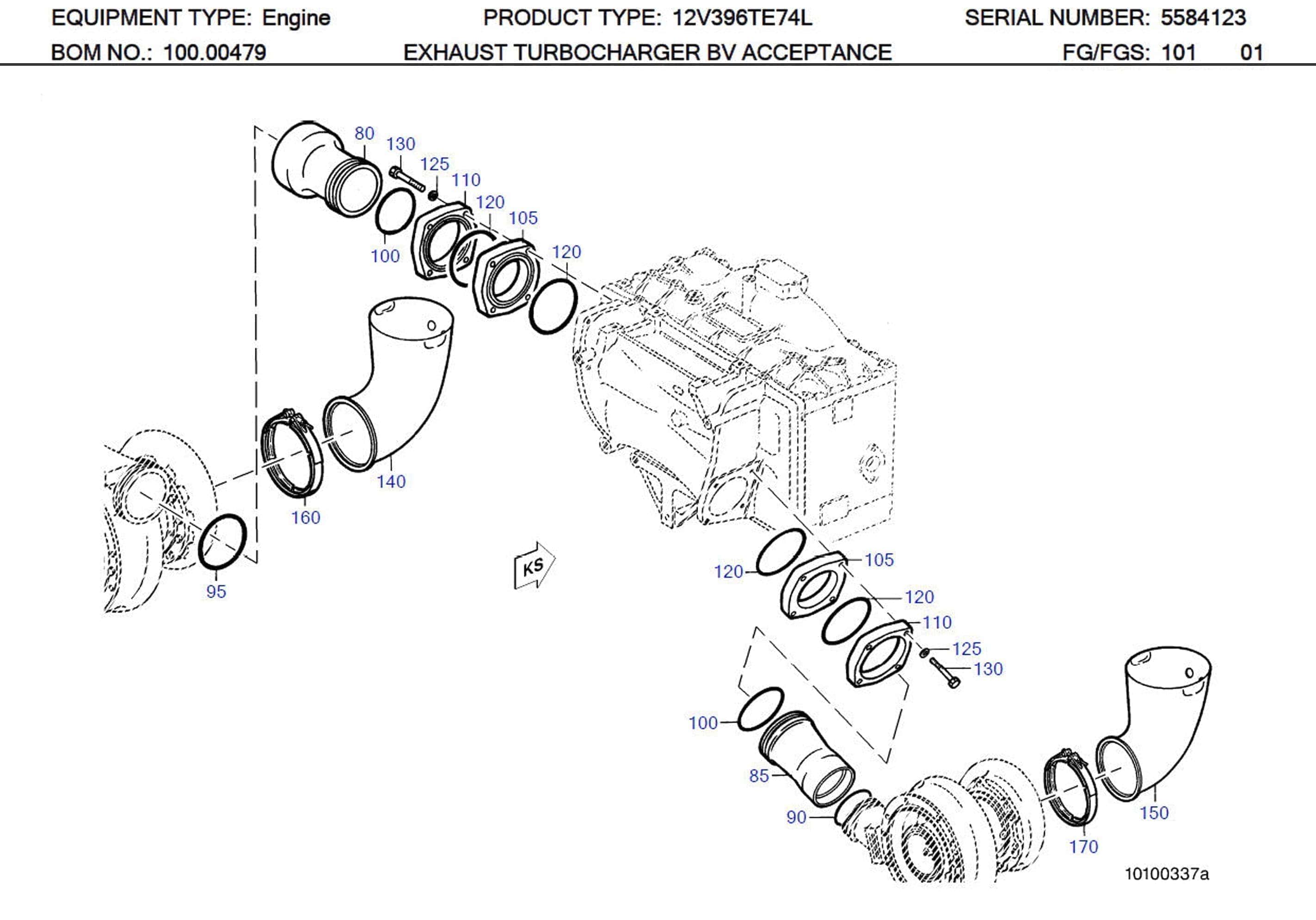

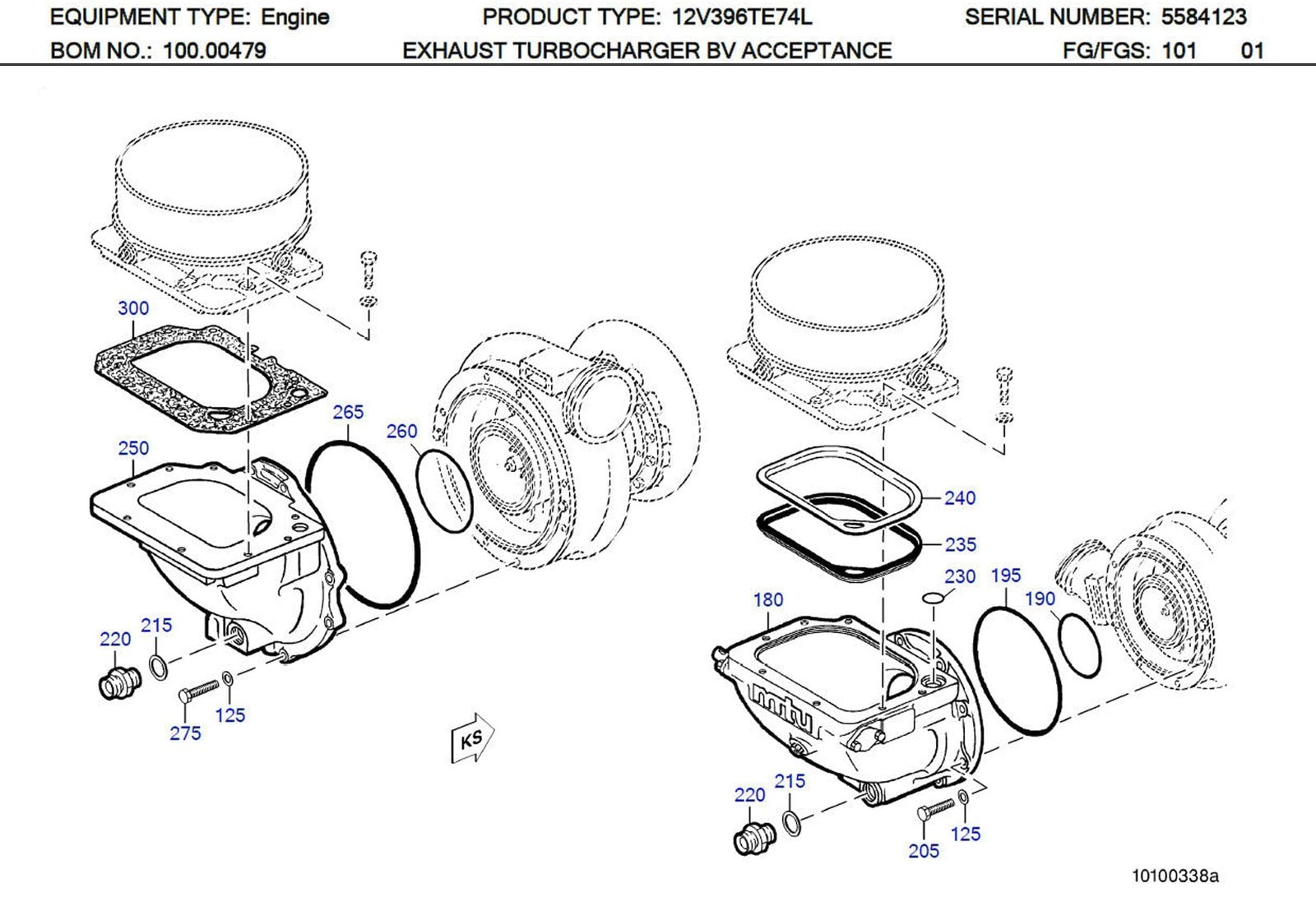

MTU 5601400441 Technical Engineering Exploded View MTU 5590982680 Technical Engineering Exploded View

MTU 396 ENGINE SPARE PARTS 5601400441 V-BAND CLAMP

C/N Description Part-Number Qty
40 EXHAUST TURBOCHARGER 5110206807 01
50 SPACER S2000/S4000 5599900040 06
55 SCREW 5599900001 06
60 EXHAUST TURBOCHARGER 5100203005 01
70 WASHER 000125010524 06
80 RECEPTACLE 5560980853 01
85 RECEPTACLE 5560980953 01
90 O-RING 700429083000 01
95 O-RING 700429115000 01
100 O-RING 700429108000 02
105 FLANGE 5560980440 02
110 FLANGE 5560980640 02
120 O-RING 700429120001 04
125 WASHER 000125008427 08
130 BOLT 304014008029 08
140 EXHAUST ELBOW 5561401109 01
150 EXHAUST ELBOW 5561401209 01
160 V-BAND CLAMP 5601400441 01
170 V-BAND CLAMP 5101400241 01
180 INTAKE HOUSING 5590903717 01
190 O-RING 700429100000 01
195 O-RING 700429188001 01
205 BOLT HEX A3C 304017008084 08
215 WASHER A COP 007603030101 01
220 UNION 915013025001 01
230 O-RING 700429032000 01
235 SEALING RING 5590981380 01
240 SUPPORT PLATE 5590981585 01
250 INTAKE HOUSING 5590902117 01
260 O-RING 700429142000 01
265 O-RING 700429270001 01
275 BOLT HEX 304017008085 08
300 GASKET 5590982680 01

5601400441 SUPERSEDED PART AND EFFECTIVE DATE

5601400441 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 5601400441 5601400141 N/A
02 5601400441 5601400341 1995/02/01
03 5601400441 5601400441 1995/03/01

MTU 396 Diesel Engine Models & Specifications

MTU 16 396 Diesel Engine

MTU 396 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
12V 396 TC54 N/A 1125 1800
12V 396 TC54 N/A 1310 1800
12V 396 TC64 N/A 960 1600
12V 396 TE64 N/A 1020 1600
12V 396 TE74 N/A 1500 1900
12V 396 TE74L N/A 1500 1900
12V 396 TE74L N/A 1500 1800
12V 396 TE84 N/A 1500 1900
12V 396 TE94 N/A 1680 2000
12V 396 TB34 N/A 1670 1800
