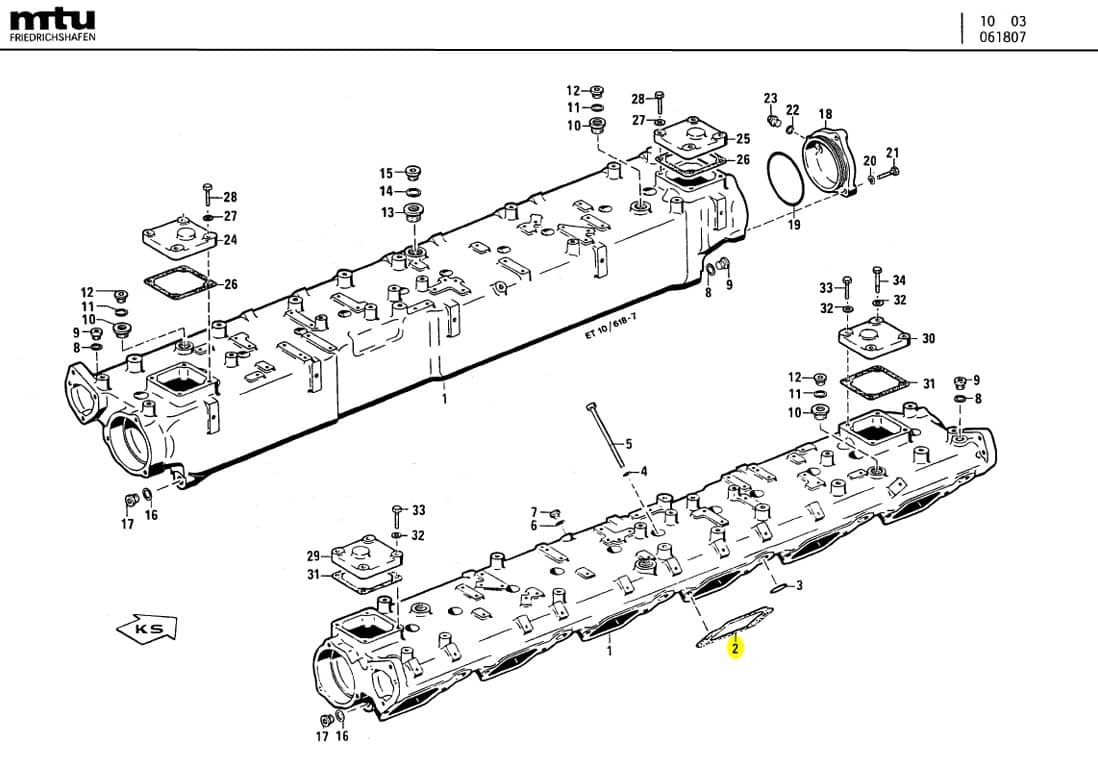

C/N | Description | Part-Number | Qty |
---|---|---|---|
01 | CHARGE-AIR MANIFOLD | 5530901938 | 02 |
02 | GASKET | 5500980280 | 12 |
03 | O-RING | 700429028001 | 12 |
04 | WASHER | 000433010504 | 24 |
05 | SCREW | 5559901501 | 24 |
06 | WASHER A COP | 007603010110 | 02 |
07 | SCREWED PLUG | 000908010002 | 02 |
08 | COPPER SEALING RING | 007603016105 | 06 |
09 | THREADED PLUG | 000908016001 | 06 |
10 | THREADED BUSHING | 5379970216 | 04 |
11 | COPPER SEALING RING | 007603018101 | 04 |
12 | PLUG | 000908018002 | 04 |
13 | BUSHING INSERT | 5509971016 | 02 |
14 | COPPER SEALING RING | 007603022102 | 02 |
15 | PLUG | 000908022001 | 02 |
16 | COPPER SEALING RING | 007603016105 | 02 |
17 | THREADED PLUG | 000908016001 | 02 |
18 | COVER | 5500982943 | 02 |
19 | O-RING | 700429108000 | 02 |
20 | WASHER | 000125008427 | 06 |
21 | HEX SCREW | 000933008118 | 06 |
22 | RING SEALING A13 X18 CU | 705057013000 | 02 |
23 | PLUG | 000910999011 | 02 |
24 | COVER | 5500981943 | 01 |
25 | COVER | 5500982043 | 01 |
26 | GASKET | 5500981680 | 02 |
27 | WASHER | 000125008427 | 08 |
28 | HEX SCREW | 000933008118 | 08 |
29 | COVER | 5500982043 | 01 |
30 | COVER | 5500981943 | 01 |
31 | GASKET | 5500981680 | 02 |
32 | WASHER | 000125008427 | 08 |
33 | HEX SCREW | 000933008118 | 06 |
34 | HEX SCREW | 000933008111 | 01 |
C/N | New Part Number | Superseded Part Number | Valid From Date |
---|---|---|---|
01 | 5500980280 | 5370980180 | N/A |
02 | 5500980280 | 5500980280 | 1984/09/01 |
Make | Year of construction | Power KW | U/MIN |
---|---|---|---|
12V 396 TC54 | N/A | 1125 | 1800 |
12V 396 TC54 | N/A | 1310 | 1800 |
12V 396 TC64 | N/A | 960 | 1600 |
12V 396 TE64 | N/A | 1020 | 1600 |
12V 396 TE74 | N/A | 1500 | 1900 |
12V 396 TE74L | N/A | 1500 | 1900 |
12V 396 TE74L | N/A | 1500 | 1800 |
12V 396 TE84 | N/A | 1500 | 1900 |
12V 396 TE94 | N/A | 1680 | 2000 |
12V 396 TB94 | N/A | 1920 | 2100 |
