PART NUMBER 0005360101
ENGINE TYPE MTU 396 ENGINE

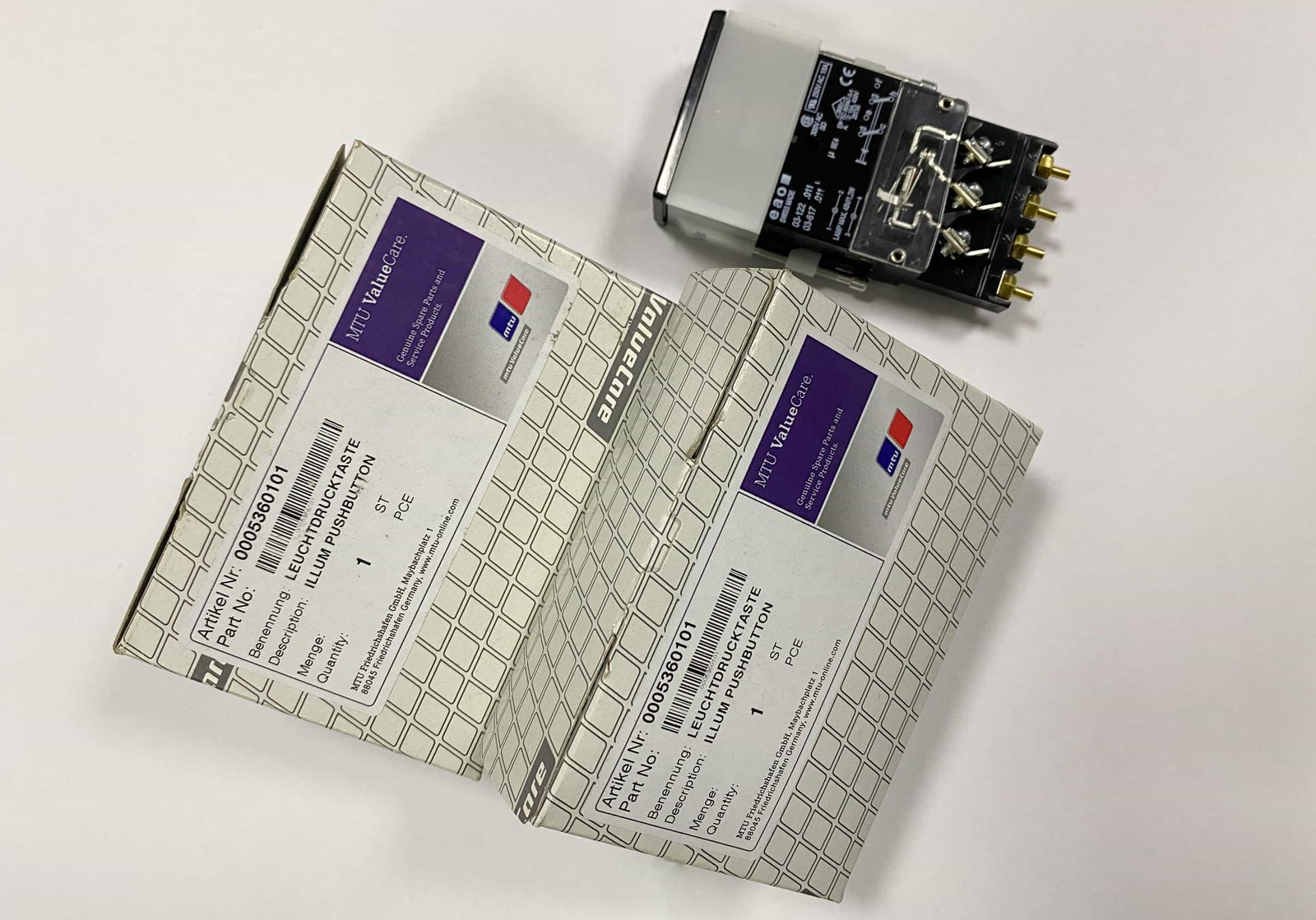

DESCRIPTION ILLUM PUSHBUTTON
DIMENSIONS 2XUM 2,8X0,8 STECKANSCHL.
UNIT WEIGHT 0.083 KG
HS CODE 85365007
NATO-VERS.-NR. 5930123348520
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Install drawings
  • original parts

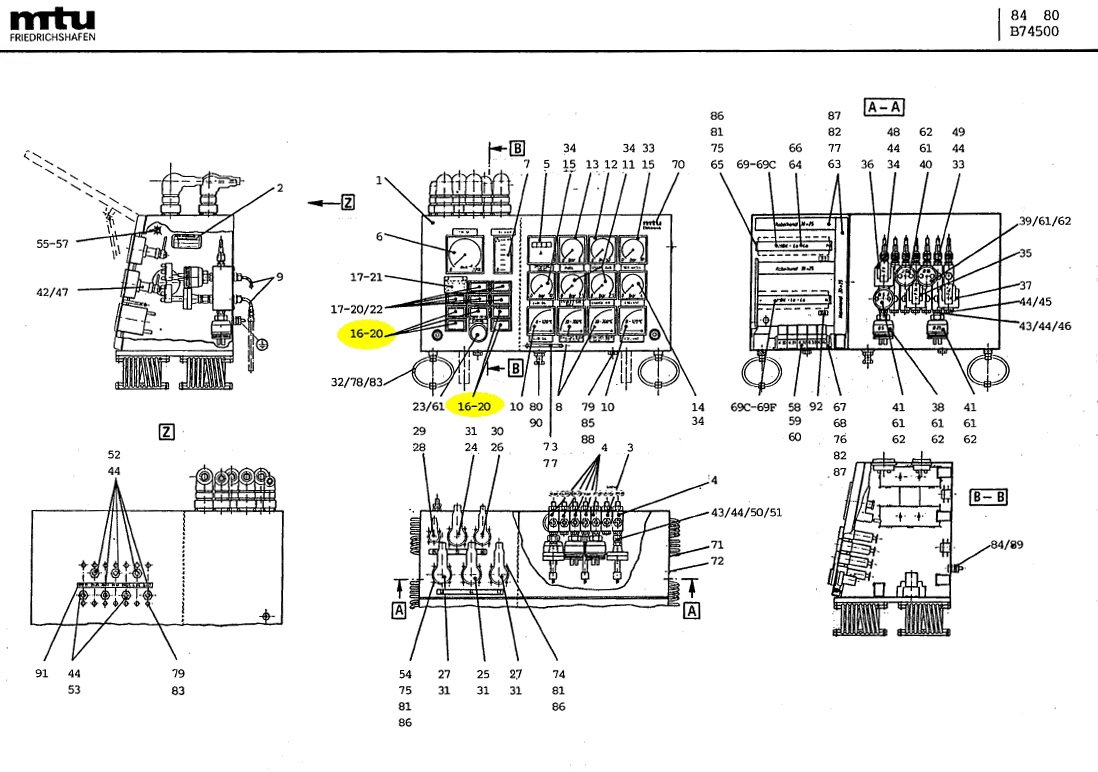

MTU 0005360101 Technical Engineering Exploded View

MTU 0005360101 Technical Engineering Exploded View

MTU 0005360101 Technical Engineering Exploded View

C/N Description Part-Number Qty
000 CONTROL CONSOLE 5175305694 001
01 HOUSING 5175336102 001
02 PLATE 5085335191 001
03 PLATE 5175333036 001
04 PLATE 5175334536 006
05 HOUR METER 0005361343 001
06 TACHOMETER ELECTRIC 0025362810 001
07 INSTRUMENT ELECTRIC 0005364214 001
08 TEMPERATURE GAUGE ELECTRIC 0005365211 002
09 ELBOW 5551500034 007
10 TEMPERATURE GAUGE ELECTRIC 5005306073 002
11 PRESSURE GAUGE MECHANICAL 0015361612 002
12 PRESSURE GAUGE ELECTRIC 0015367512 001
13 PRESSURE GAUGE MECHANICAL 0015361812 001
14 PRESSURE GAUGE MECHANICAL 0015361712 001
15 PRESSURE GAUGE MECHANICAL 0015361912 002
16 ILLUM PUSHBUTTON 0005360101 005
17 INCANDESCENT LAMP 0005318988 022
18 BUTTON CAP CLEAR 0015361102 011
19 PLUG-IN BOARD 5005303512 011
20 SPLASH WATER GUARD 0005592503 011
21 SWITCH 0005360201 001
22 LAMP 0005360001 005
23 PUSHBUTTON 0005344401 001
24 MALE CONNECTOR 0015317583 001
25 MALE CONNECTOR 0015317483 001
26 SEPARABLE CONNECTOR 0015312483 001
27 SEPARABLE CONNECTOR 0015317283 002
28 SEPARABLE CONNECTOR 0015316683 001
29 DUST CAP 0005332731 010
30 DUST CAP 0005333031 001
31 CAP 0005333131 004
32 DAMPER ELEMENT 0005334754 004
33 HIGH-PRESSURE HOSE 0169970382 001
34 HIGH-PRESSURE HOSE 0159979482 006
35 PRESSURE MONITOR 0015354102 001
36 PRESSURE MONITOR 0015354002 001
37 PRESSURE MONITOR 0015351602 001
38 PRESSURE SENSOR 0025351531 001
39 PRESSURE SENSOR 0025351131 001
40 PRESSURE SENSOR 0025351031 001
41 PRESSURE SENSOR 0025351431 002
42 SEALING RING 007603006106 007
43 SEALING RING 705057013000 009
44 SEALING RING 007603014102 037
45 PLUG 007604014107 013
46 SCREW-FITTING UNION 700419999037 005
47 UNION 5179970972 007
48 THREADED COUPLING 0019970089 006
49 SCREWED CONNECTION 0019970189 001
50 SCREW-FITTING UNION 003901010000 003
51 UNION 5175300047 003
52 CONNECTOR 915007006007 005
53 UNION 5179970772 002
54 RING TERMINAL 700500000882 006
55 PVC-INSULATED CORE 43912 000
56 END SLEEVE 43345 002
57 RING TERMINAL 46107 002
58 RELAY BASE 0025315260 005
59 RELAY 0015317960 005
60 DIODE 0005310140 005
61 BLADE RECEPTACLE 0005316481 021
62 BLADE RECEPTACLE 0085315683 005
63 CABLE DUCT 0005311882 001
64 SUPPORT RAIL 0005313983 000
65 TERMINAL 0005313781 004
66 TERMINAL 0015319181 070
67 SUPPORT RAIL 0055319583 000
68 TERMINAL 0015317081 002
69 MARKER STRIP 0005335089 001
69A MARKER STRIP 0005335189 001
69B MARKER STRIP 0005335289 001
69C MARKER STRIP 0005335389 001
69D MARKER STRIP 0005335489 001
69E MARKER STRIP 0005335589 001
69F MARKER STRIP 0005335689 001
70 ADHESIVE LABEL WITH MTU-LOGO 0005331390 001
71 PLATE 700425000032 001
72 RIVET 910001003100 002
73 HANDLE 0005330732 001
74 COUNTERSUNK HD SCREW 000963003018 018
75 COUNTERSUNK HD SCREW 000963003017 010
76 COUNTERSUNK HD SCREW 000963004016 002
77 COUNTERSUNK HD SCREW 000963004001 015
78 HEX SCREW 000933006089 008
79 HEX SCREW 000933006016 016
80 BOLT BANJO A8 F73 700223008001 001
81 TOOTHED WASHER J3.2 006797003222 028
82 TOOTHED WASHER J4.3 006797004232 015
83 CONICAL SPR. WASHER 206796006000 022
84 WASHER 000125006424 002
85 WASHER 000125006431 004
86 HEX NUT 000934003002 028
87 HEX NUT 000934004004 016
88 HEX NUT 000934006006 002
89 HEX NUT 000934006031 002
90 NUT 080705016004 002
91 LABELLING KIT 0005337390 001
92 PLATE 5185334690 001
93Z ATTACHING ELEMENT 0015318481 010
94Z QUICK-CATCH CLAMP 0005312081 020
95Z IDENTIFICATION PLATE 0005332190 015
96Z WIRING HARNESS 5175308020 001
