PART NUMBER 5502040403
ENGINE TYPE MTU 396 ENGINE
DESCRIPTION COVER
DIMENSIONS N/A
UNIT WEIGHT 3.664 KG
HS CODE 84099900
NATO-VERS.-NR. 5340123015321
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Install drawings
  • original parts

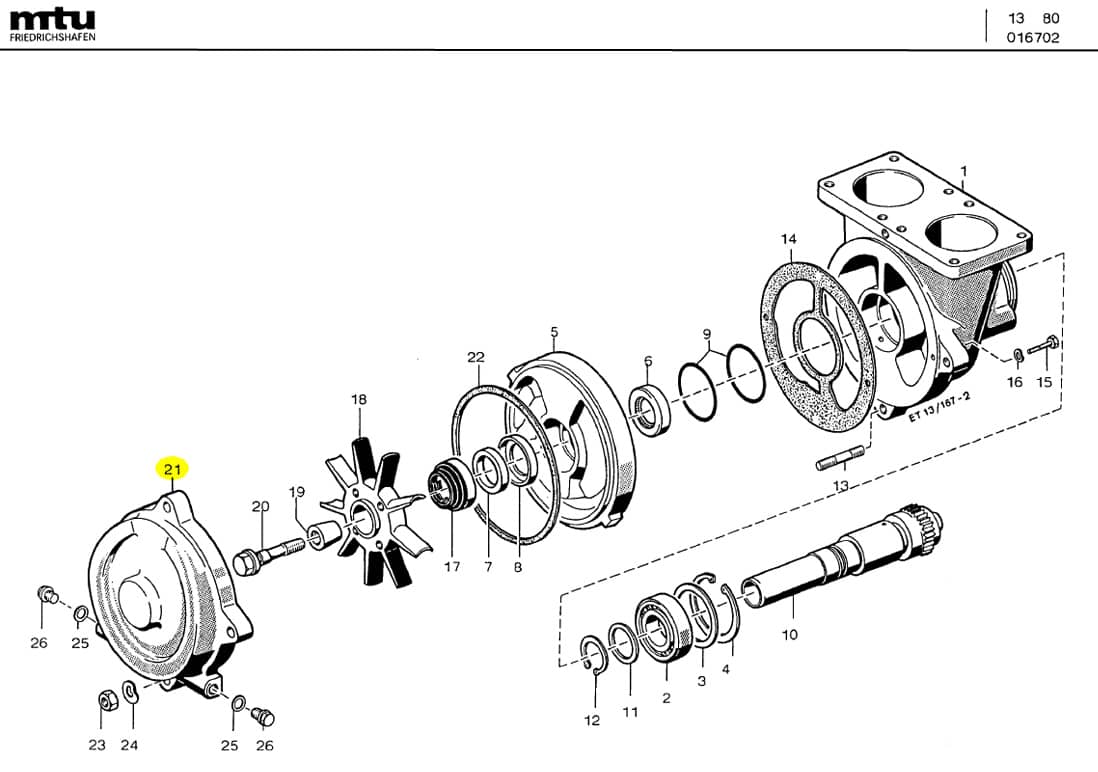

MTU 5502040403 Technical Engineering Exploded View

MTU 5502040403 Technical Engineering Exploded View

MTU 5502040403 Technical Engineering Exploded View

C/N Description Part-Number Qty
000 SEAWATER PUMP 5502003201 01
01 HOUSING 5502040901 01
02 BEARING BALL GROOVED 62 000625900175 01
03 RING SHIM 63 X 80 DI M 988 000988063100 01
04 SNAP RING 900055080210 01
05 PLATE CONTROL WASHER 5502040176 01
06 SEAL SHAFT 0049979947 01
07 RING THRUST 8692040010 01
08 GAITER 8692040020 01
09 O-RING 700429057000 02
10 DRIVE SHAFT 5502002002 01
11 RING SHIM 40 X 50 DI M 988 000988040100 01
12 SNAP RING 900055040200 01
13 STUD 000939012101 04
14 GASKET 5552040580 01
15 HEX SCREW 000933006083 02
16 WASHER SPRING B6 000137006205 02
17 SEAL ROTARY PUMP 0039978648 01
18 IMPELLER 5502040906 01
19 CONE 5502040050 01
20 BOLT STRESS 5509900719 01
21 COVER 5502040403 01
22 GASKET 8692040050 01
23 NUT HEX 000934012008 04
24 WASHER SPRING B12 000137012202 04
25 RING SEALING A13 X18 CU 705057013000 02
26 PLUG 000910999015 02

5502040403 SUPERSEDED PART AND EFFECTIVE DATE

5502040403 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 5502040403 8692040090 N/A
02 5502040403 0002041420 1991/10/01
03 5502040403 5502040103 1991/11/01
04 5502040403 5502040303 1991/12/01
05 5502040403 5502040403 1992/01/01
