PART NUMBER 8692030530
ENGINE TYPE MTU 396 ENGINE
DESCRIPTION PUMP
DIMENSIONS 200 / 440V 50 / 60HZ IP55
UNIT WEIGHT 10.550 KG
HS CODE 84133080
NATO-VERS.-NR. 4320123176272
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Install drawings
  • original parts

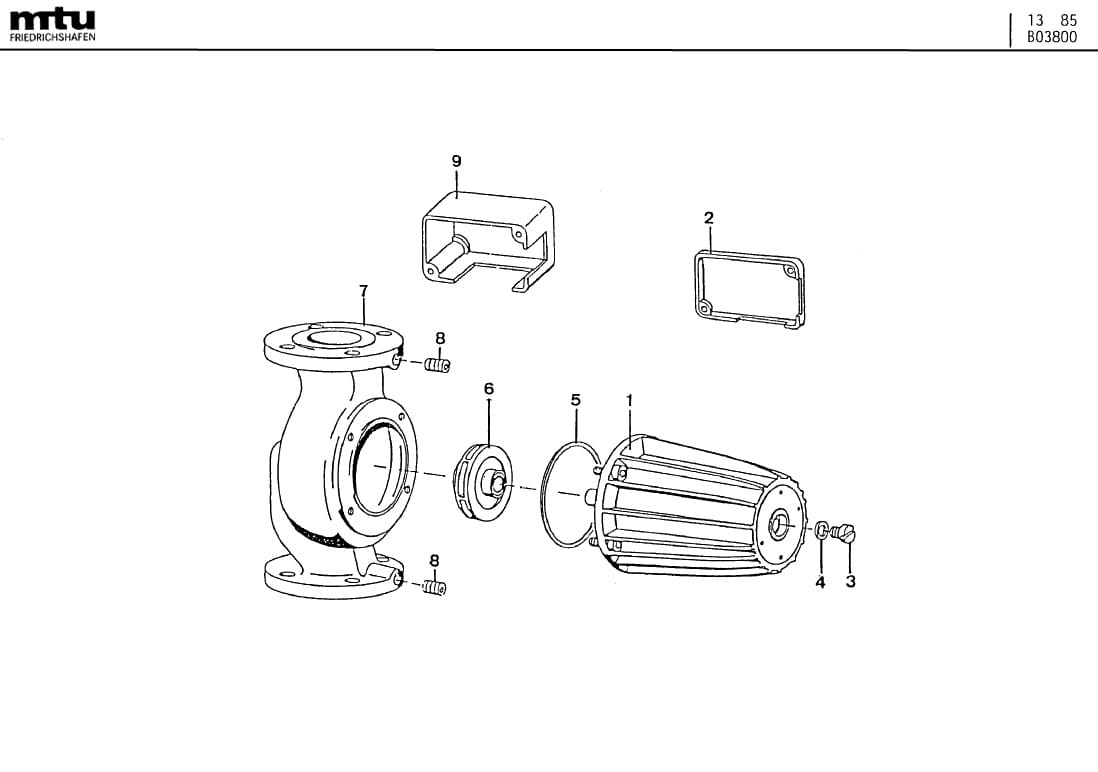

MTU 8692030530 Technical Engineering Exploded View

MTU 8692030530 Technical Engineering Exploded View

MTU 8692030530 Technical Engineering Exploded View

C/N Description Part-Number Qty
000 PUMP 8692030530 01
02 COVER =111246590 01
03 PLUG =500744695 01
04 GASKET 8499970400 01
05 GASKET 8499970410 01
06 IMPELLER =111246795 01
07 PUMP HOUSING =501223792 01
08 GRUB SCREW =501265591 02
09 COVER =111282494 01

8692030530 SUPERSEDED PART AND EFFECTIVE DATE

8692030530 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 XP58320300006 8692030110 N/A
02 XP58320300006 8692030410 2010/07/01
03 XP58320300006 Z=102303 2010/08/01
04 XP58320300006 8692030530 2010/08/02
05 XP58320300006 8692030600 2010/09/01
06 XP58320300006 8692030031 2010/10/01
07 XP58320300006 XP58320300006 2010/11/01
