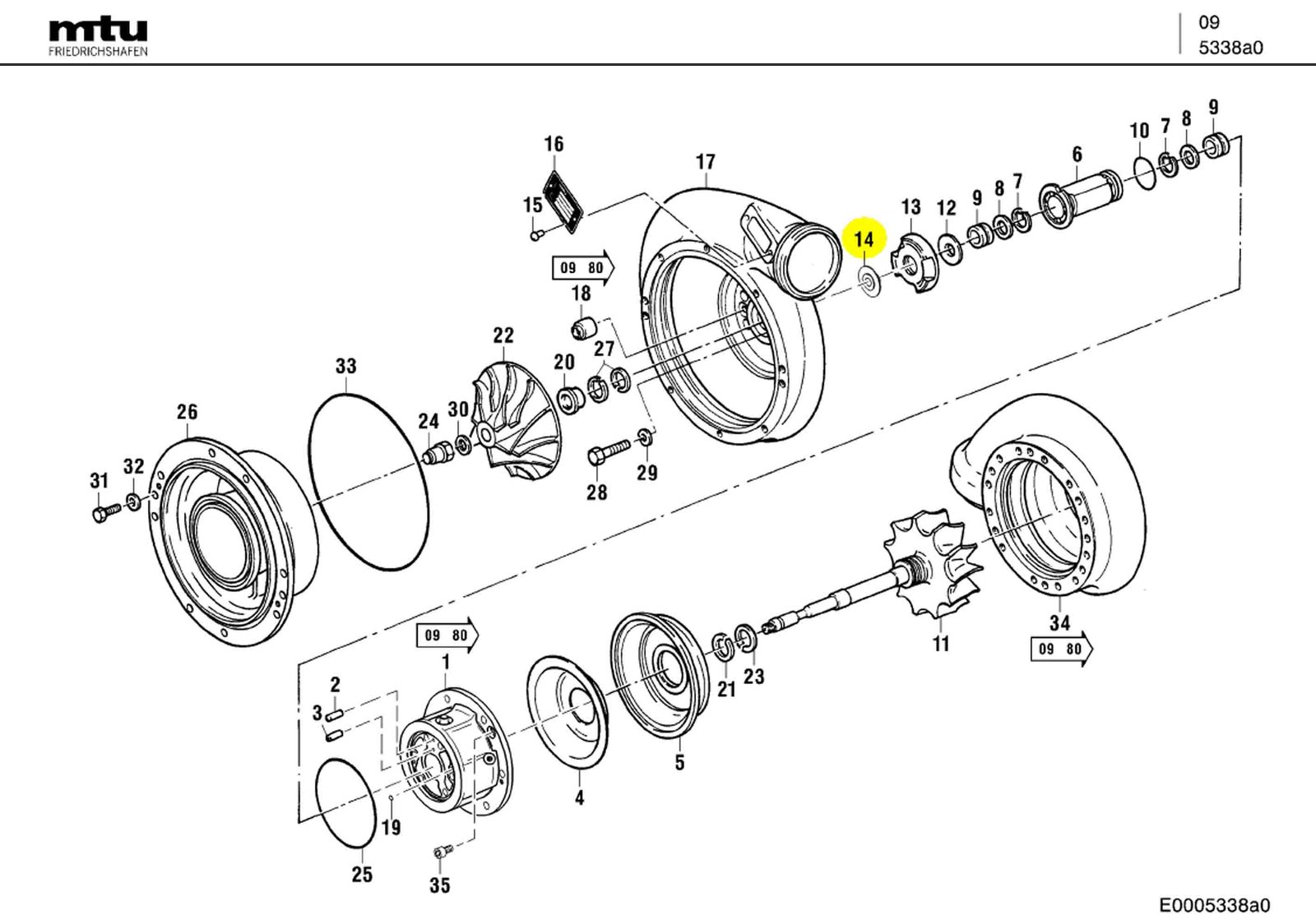

C/N | Description | Part-Number | Qty |
---|---|---|---|
000 | EXHAUST TURBOCHARGER | 5100202905 | 01 |
01 | BEARING HOUSING | 5100801201 | 01 |
02 | DOWEL PIN | 5119910060 | 01 |
03 | SPRING | 000007005115 | 01 |
04 | HEAT SHIELD | 5100820326 | 01 |
05 | HEAT SHIELD | 5100810303 | 01 |
06 | BEARING | 5100251610 | 01 |
07 | RING SNAP | 000472028000 | 02 |
08 | WASHER | 5100250276 | 02 |
09 | BEARING BUSHING | 5100250050 | 02 |
10 | O-RING | 700429031000 | 01 |
11 | TURBINE WHEEL | 5100801321 | 01 |
12 | WASHER | 5100251576 | 01 |
13 | THRUST BEARING | 5100200112 | 01 |

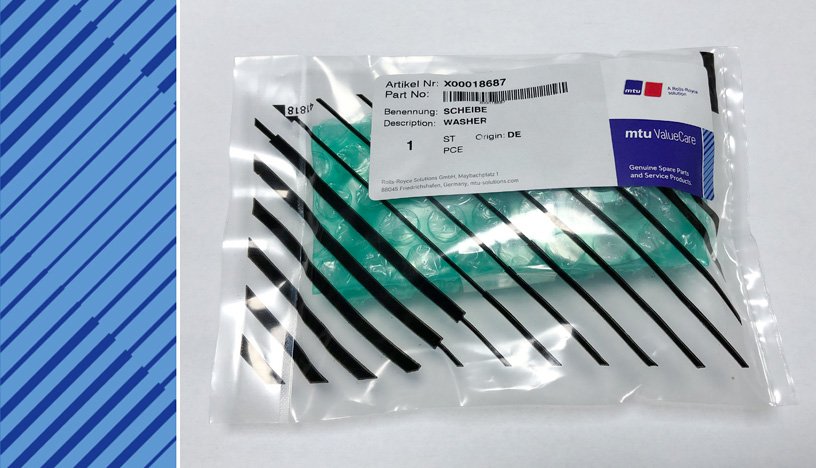

14 | WASHER | 5100251876 | 01 |
15 | PIN GROOVED | 001476003017 | 02 |
16 | LABEL | 700425000049 | 01 |
17 | COMPRESSOR HOUSING | 5100212701 | 01 |
18 | VALVE | 5110200278 | 02 |
19 | O-RING | 700429005001 | 01 |
20 | RING CARRIER | 5100251310 | 01 |
21 | PISTON RING F/TURBOCHARGER | 5100850160 | 01 |
22 | COMPRESSOR WHEEL | 5100253801 | 01 |
23 | PISTON RING F/TURBOCHARGER | 5100850260 | 01 |
24 | MAGNETIC NUT | 5205300071 | 01 |
25 | O-RING | 700429105001 | 01 |
26 | INTAKE HOUSING | 5100211702 | 01 |
27 | PISTON RING | 5090850060 | 02 |
28 | HEX SCREW | 000931010105 | 06 |
29 | WASHER SPRING B10 | 000137010202 | 06 |
30 | WASHER | 5100250376 | 01 |
31 | HEX SCREW | 000933008040 | 02 |
32 | WASHER | 000125008427 | 02 |
33 | 0-RING | 700429210000 | 01 |
34 | TURBINE HOUSING | 5100800630 | 01 |
35 | SCREW | 700384010015 | 01 |
C/N | New Part Number | Superseded Part Number | Valid From Date |
---|---|---|---|
01 | X00018687 | 5100251876 | N/A |
02 | X00018687 | 5100250876 | 2006/02/01 |
03 | X00018687 | X00018687 | 2006/03/01 |
Make | Year of construction | Power KW | U/MIN |
---|---|---|---|
12V 396 TC54 | N/A | 1125 | 1800 |
12V 396 TC54 | N/A | 1310 | 1800 |
12V 396 TC64 | N/A | 960 | 1600 |
12V 396 TE64 | N/A | 1020 | 1600 |
12V 396 TE74 | N/A | 1500 | 1900 |
12V 396 TE74L | N/A | 1500 | 1900 |
12V 396 TE74L | N/A | 1500 | 1800 |
12V 396 TE84 | N/A | 1500 | 1900 |
12V 396 TE94 | N/A | 1680 | 2000 |
12V 396 TB94 | N/A | 1920 | 2100 |
