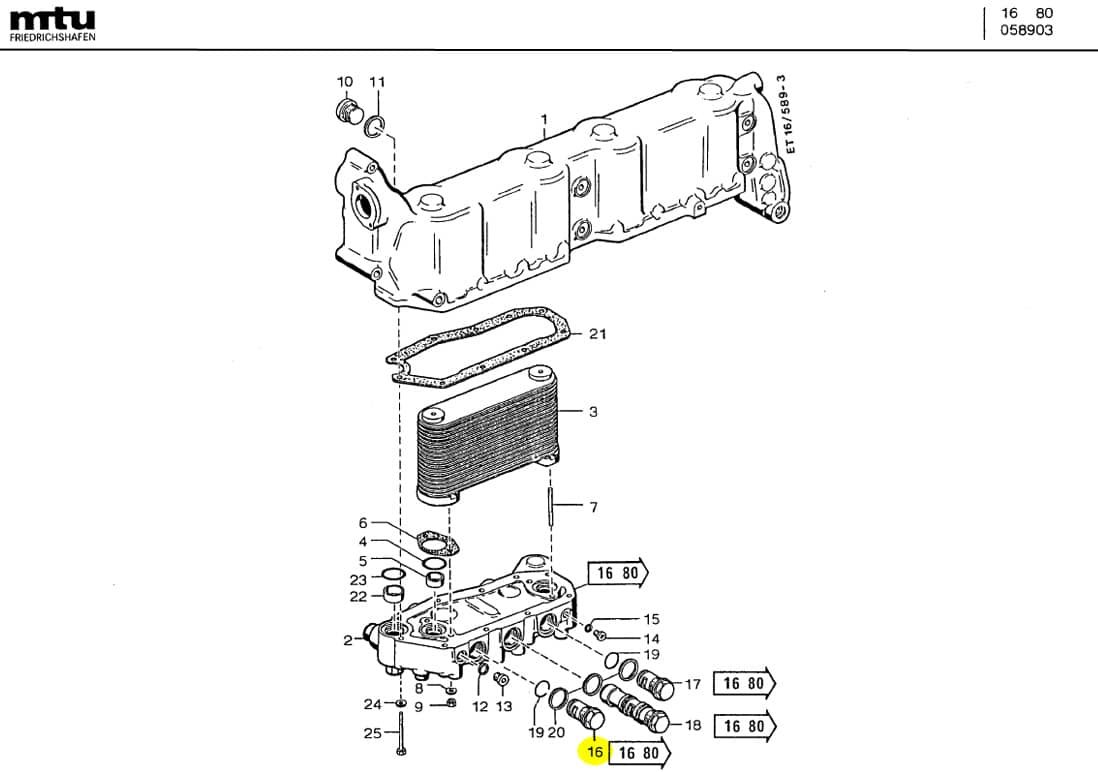

C/N | Description | Part-Number | Qty |
---|---|---|---|
000 | OIL HEAT EXCHANGER | 5531800765 | 01 |
01 | HOUSING | 5531800837 | 01 |
02 | COVER | 5501801338 | 02 |
03 | FLAT-TUBE OIL COOLER | 0011884501 | 02 |
04 | O-RING | 700429037001 | 04 |
05 | PIPE | 5371880053 | 04 |
06 | GASKET | 8381880280 | 04 |
07 | STUD | 5379900005 | 08 |
08 | WASHER SPRING B10 | 000137010202 | 08 |
09 | HEX NUT | 000934010022 | 08 |
10 | PLUG | 000908038000 | 01 |
11 | COPPER SEALING RING | 007603038101 | 01 |
12 | COPPER SEALING RING | 007603018101 | 02 |
13 | PLUG | 000908018002 | 02 |
14 | PLUG | 000908012003 | 02 |
15 | COPPER SEALING RING | 007603012111 | 02 |

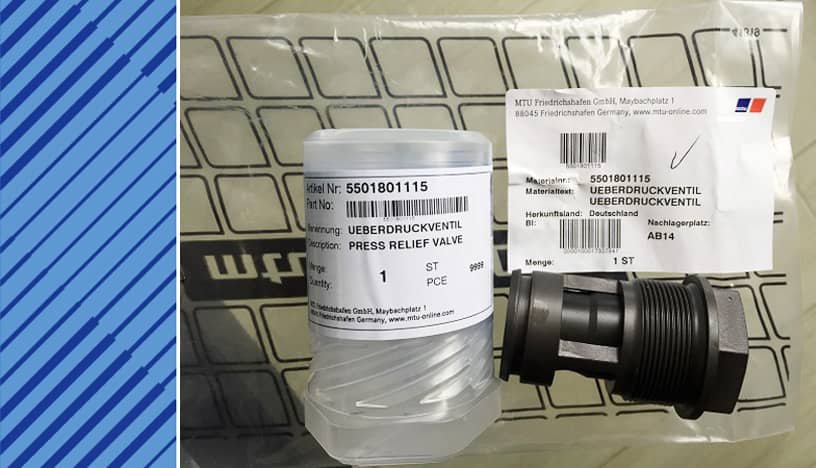

16 | PRESS RELIEF VALVE | 5501801115 | 02 |
17 | PRESS RELIEF VALVE | 5501801215 | 02 |
18 | PRESS RELIEF VALVE | 5501800915 | 02 |
19 | O-RING | 700429030004 | 04 |
20 | COPPER SEALING RING | 007603038101 | 06 |
21 | GASKET | 5551881280 | 02 |
22 | PIPE | 5371880153 | 02 |
23 | O-RING | 700429037001 | 02 |
24 | WASHER SPRING B10 | 000137010202 | 20 |
25 | HEX SCREW | 000931010239 | 20 |
C/N | New Part Number | Superseded Part Number | Valid From Date |
---|---|---|---|
01 | 5501801115 | 5371800115 | N/A |
02 | 5501801115 | 5501800415 | 1984/09/01 |
Make | Year of construction | Power KW | U/MIN |
---|---|---|---|
12V 396 TC54 | N/A | 1125 | 1800 |
12V 396 TC54 | N/A | 1310 | 1800 |
12V 396 TC64 | N/A | 960 | 1600 |
12V 396 TE64 | N/A | 1020 | 1600 |
12V 396 TE74 | N/A | 1500 | 1900 |
12V 396 TE74L | N/A | 1500 | 1900 |
12V 396 TE74L | N/A | 1500 | 1800 |
12V 396 TE84 | N/A | 1500 | 1900 |
12V 396 TE94 | N/A | 1680 | 2000 |
12V 396 TB94 | N/A | 1920 | 2100 |
