5110251476 WASHER

Other
Other X00018687 WASHER 5119910060 DOWEL PIN 0189978947 SEAL REAR CRANKSHAFT 5590981380 SEALING RING 5110800220 TURBINE WHEEL 5582040406 IMPELLER 5550162420 CYLINDER HEAD GASKET 5550162320 CYLINDER HEAD GASKET 000007005115 DOWEL PIN 5119940330 TAB WASHER 5119900051 HEX NUT 5110200278 VALVE 5110803201 BEARING HOUSING 0000533635 VALVE ROTATOR 5591420020 GUARD PLATE 5110251476 WASHER 0045426917 TEMPERATURE MONITOR 5500180280 GASKET 0030948104 AIR FILTER ELEMENT 5550100651 NOZZLE HOLDER W/NOZZLE 5550100051 NOZZLE HOLDER W/NOZZLE 0005360201 SWITCH 0005360101 ILLUM PUSHBUTTON 0030947404 AIR FILTER ELEMENT 0001510433 MULTIPLE-DISC CLUTCH 735074100000 COVER 5550101251 OIL SPRAY NOZZLE 5100250050 BEARING BUSHING 5500100330 CYLINDER HEAD COVER 8692030530 PUMP 8690920024 GAUGE VACUUM 0000925105 FILTER ELEMENT 0010928801 FUEL PREFILTER Z=30467 BALL COCK 0045457528 BLADE RECEPTACLE 0021540506 TRANSISTOR REGULATOR 0001536720 SPEED SENSOR 5502040403 COVER 5502040906 IMPELLER 0039978648 SEAL ROTARY PUMP 5502002002 DRIVE SHAFT 8692040010 RING THRUST 0049979947 SEAL SHAFT 5502040176 PLATE CONTROL WASHER 5502003201 SEAWATER PUMP 000908016001 THREADED PLUG 000908010002 SCREWED PLUG 5559901501 SCREW 700429028001 O-RING 5500980280 GASKET 700429270001 O-RING 000933008040 HEX SCREW 5205300171 MAGNETIC NUT 5100850060 RING SEAL 5110850460 PISTON RING 5110850560 PISTON RING 5110252110 RING CARRIER 5110250576 WASHER 5110200510 THRUST BEARING 5110250050 BEARING BUSHING 700429042001 O-RING 5110252210 BEARING 5501840832 VALVE PISTON 5551800015 PRESS LIMITING VALVE 700429150001 O-RING 0002010418 COUNTERRING 5592010007 IMPELLER 070852035000 SLOTTED NUT 270952035100 TAB WASHER 0009813527 ANGLR-CONT BALL BRG 5552010010 BEARING HOUSING 5552010005 COOLANT PUMP SHAFT 0079977247 SHAFT SEAL 0002017519 ROTARY SEAL 5370550050 BUSHING 700429260000 O-RING 5500160121 GASKET 0020172112 HOLE-TYPE NOZZLE 5550102451 NOZZLE HOLDER W/NOZZLE 5550170553 PRESSURE SLEEVE 5550170013 THRUST SCREW 0000170660 CE RING 5500170260 SUPPORT RING 0029977940 SEALING RING 700429014000 O-RING 5551800122 OIL LINE 5500160069 SCREW 700429021000 O-RING 5550160095 SPACER PLATE 5500160597 CLAMP 700429040003 O-RING 700429036001 O-RING 5501872401 PIPE 5500160119 SEALING RING 5500160432 PIPE 5550161420 CYLINDER HEAD GASKET 8700380171 CONROD BOLT 5500530232 VALVE SEAT INSERT EXHAUST 5500531231 VALVE SEAT INSERT INLET 5550170053 PROTECTIVE SLEEVE 0000530361 VALVE STEM SEAL 0000530126 VALVE COLLET 5500530020 VALVE SPRING OUTER 5550530105 EXHAUST VALVE 5500530401 INLET VALVE 5550105141 CYLINDER HEAD W/VALVE 0030944304 AIR FILTER 5550330130 CRANKSHAFT BEARING SIZE 0-0 5550302160 CONROD BEARING SIZE 0-0 5550307540 CRANKSHAFT BEARING SIZE 0-0 5501800106 IDLER GEAR 8381810625 BEARING PIN 5500160405 CYLINDER HEAD COVER 5501801015 PRESS RELIEF VALVE 5501801115 PRESS RELIEF VALVE 5501800915 PRESS LIMITING VALVE 5501800016 OIL FILTER ELEMENT 5500100061 OIL SEPARATOR 5500500334 ROCKER ARM EXHAUST 5500500333 ROCKER ARM INLET 5110809821TURBINE WHEEL 5100850260 PISTON RING 5100850160 PISTON RING
PART NUMBER 5110251476
TURBO MODEL ZR170 / 068
DESCRIPTION WASHER
DIMENSIONS SPECIAL PURITY TO MNN 370.9
UNIT WEIGHT 0.059 KG
HS CODE 73182200
NATO-VERS.-NR. 5365123794948
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Part details
  • original parts

MTU 5110251476 ZR170 TURBOCHARGER WASHER

MTU 5110251476 ZR170 TURBOCHARGER WASHER

MTU 5110251476 ZR170 TURBOCHARGER WASHER

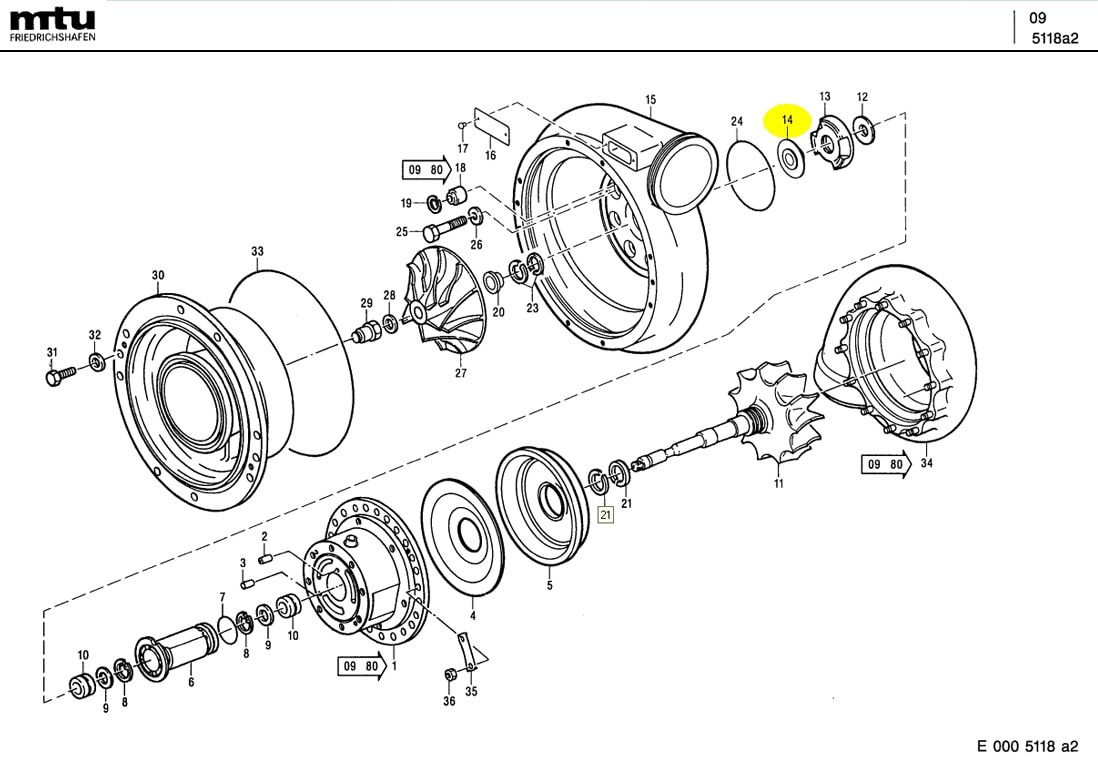

C/N Description Part-Number Qty
000 EXHAUST TURBOCHARGER 5110206807 01
01 BEARING HOUSING 5110803201 01
02 DOWEL PIN 5119910060 01
03 SPRING 000007005115 01
04 HEAT SHIELD 5110820226 01
05 HEAT SHIELD 5110812603 01
06 BEARING 5110252210 01
07 O-RING 700429042001 01
08 RING SNAP 5119940041 02
09 WASHER 5110250052 02
10 BEARING BUSHING 5110250050 02
11 TURBINE WHEEL 5110800220 01
12 WASHER 5110250276 01
13 THRUST BEARING 5110200412 01
14 WASHER 5110251476 01
15 COMPRESSOR HOUSING 5110212714 01
16 LABEL 700425000049 01
17 PIN GROOVED 001476003017 02
18 VALVE 5110200278 02
19 RING SNAP 000472020000 02
20 RING CARRIER 5110252110 01
21 PISTON RING F/TURBOCHARGER 5110850560 01
22 PISTON RING F/TURBOCHARGER 5110850460 01
23 RING SEAL 5100850060 02
24 O-RING 700429105001 01
25 HEX SCREW 000931010105 08
26 WASHER SPRING B10 000137010202 08
27 COMPRESSOR WHEEL 5110258201 01
28 WASHER 5110250376 01
29 MAGNETIC NUT 5205300171 01
30 INTAKE HOUSING 5110214802 01
31 HEX SCREW 304017008078 02
32 WASHER 000125008427 02
33 0-RING 700429270001 01
34 TURBINE HOUSING 5110805730 01
35 TAB WASHER 5119940330 06
36 HEX NUT 5119900051 12

5110251476 SUPERSEDED PART AND EFFECTIVE DATE

5110251476 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 X00024761 5110251476 N/A
02 X00024761 5110250576 2005/03/01
03 X00024761 X00024761 2006/01/01

MTU 396 Diesel Engine Models & Specifications

MTU 16 396 Diesel Engine

MTU 396 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
12V 396 TC54 N/A 1125 1800
12V 396 TC54 N/A 1310 1800
12V 396 TC64 N/A 960 1600
12V 396 TE64 N/A 1020 1600
12V 396 TE74 N/A 1500 1900
12V 396 TE74L N/A 1500 1900
12V 396 TE74L N/A 1500 1800
12V 396 TE84 N/A 1500 1900
12V 396 TE94 N/A 1680 2000
12V 396 TB94 N/A 1920 2100
