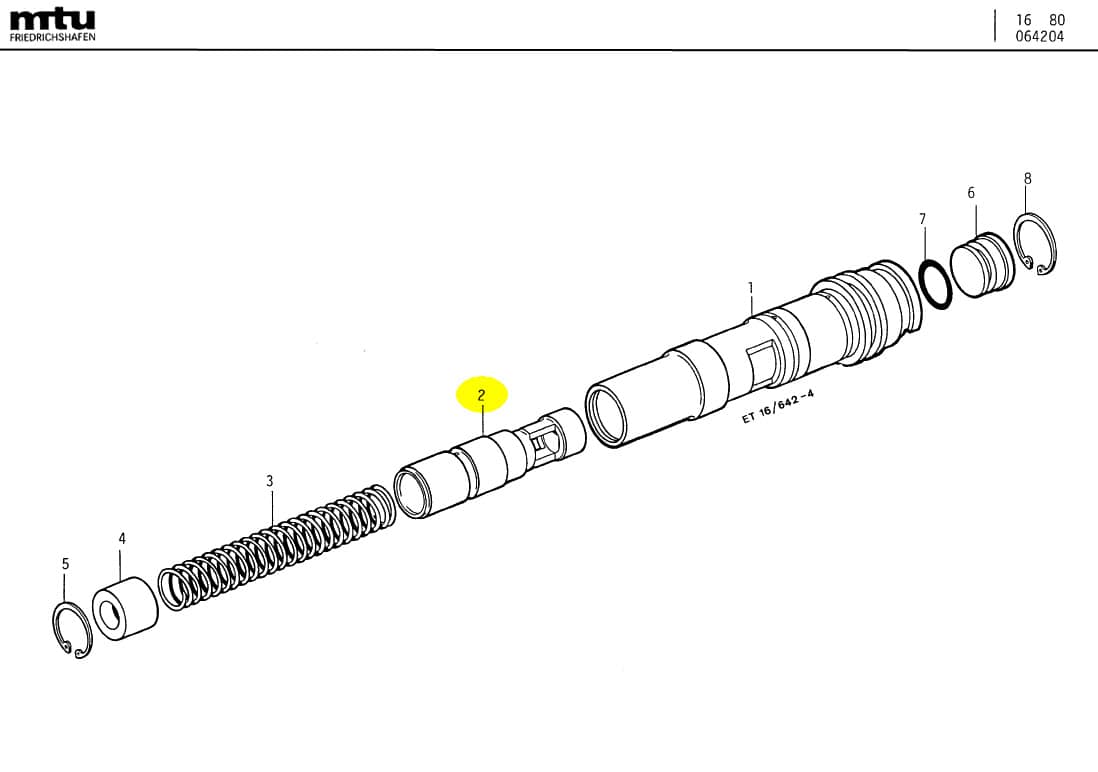

C/N | Description | Part-Number | Qty |
---|---|---|---|
000 | PRESS LIMITING VALVE | 5551800015 | 02 |
01 | VALVE HOUSING | 5551840229 | 02 |
02 | VALVE PISTON | 5501840832 | 02 |
03 | SPRING | 5379930101 | 02 |
04 | GUIDE SLEEVE | 5501840354 | 02 |
05 | SNAP RING | 000472026000 | 02 |
06 | PLUG | 5551840065 | 02 |
07 | O-RING | 700429017000 | 02 |
08 | RING SNAP | 000472028000 | 02 |
C/N | New Part Number | Superseded Part Number | Valid From Date |
---|---|---|---|
01 | 5501840832 | 5371840132 | 1984/09/01 |
Make | Year of construction | Power KW | U/MIN |
---|---|---|---|
12V 396 TC54 | N/A | 1125 | 1800 |
12V 396 TC54 | N/A | 1310 | 1800 |
12V 396 TC64 | N/A | 960 | 1600 |
12V 396 TE64 | N/A | 1020 | 1600 |
12V 396 TE74 | N/A | 1500 | 1900 |
12V 396 TE74L | N/A | 1500 | 1900 |
12V 396 TE74L | N/A | 1500 | 1800 |
12V 396 TE84 | N/A | 1500 | 1900 |
12V 396 TE94 | N/A | 1680 | 2000 |
12V 396 TB94 | N/A | 1920 | 2100 |
