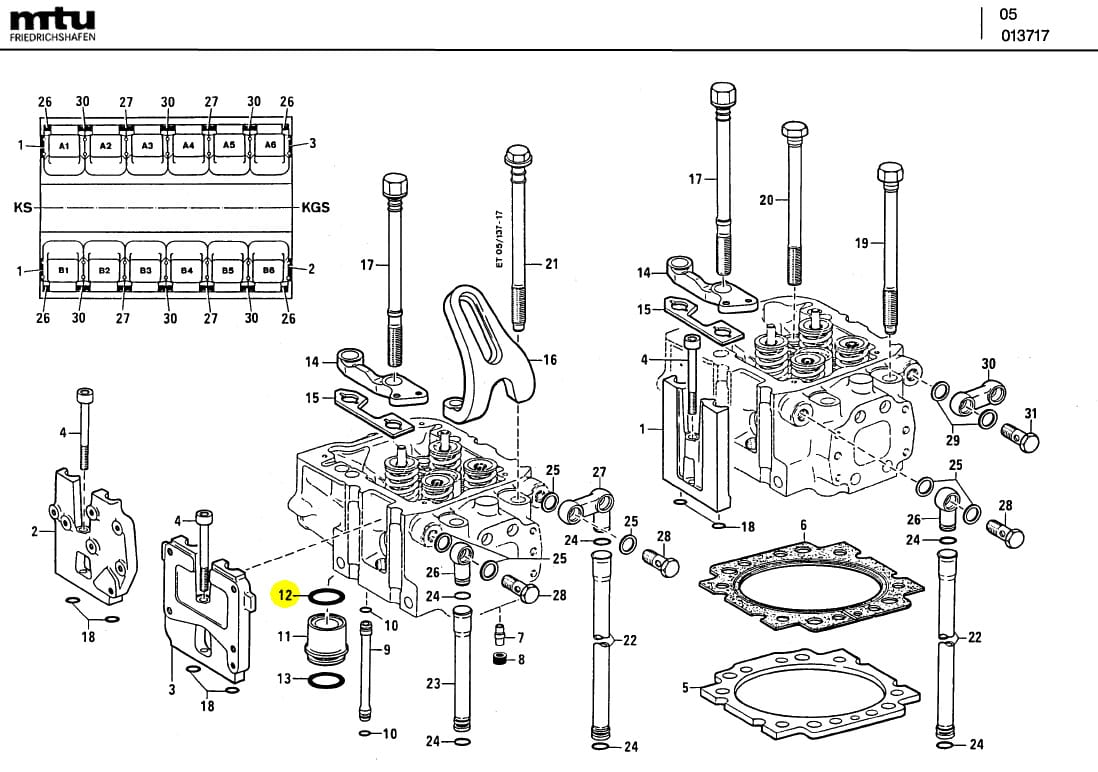

C/N | Description | Part-Number | Qty |
---|---|---|---|
01 | END PLATE | 5550160589 | 01 |
02 | END PLATE | 5500161589 | 00 |
03 | END PLATE AUX PTO END | 5560160289 | 01 |
04 | BOLT HEX SOC HD | 000912010048 | 04 |
05 | SUPPORT PLATE SIZE 1 | 5500160818 | 12 |
06 | CYLINDER HEAD GASKET | 5550161420 | 12 |
07 | PIPE | 5500160432 | 96 |
08 | SEALING RING | 5500160119 | 96 |
09 | PIPE | 5501872401 | 12 |
09 | PIPE | 5501872401 | 12 |
10 | O-RING | 700429009002 | 24 |
11 | SLEEVE | 5500540053 | 24 |

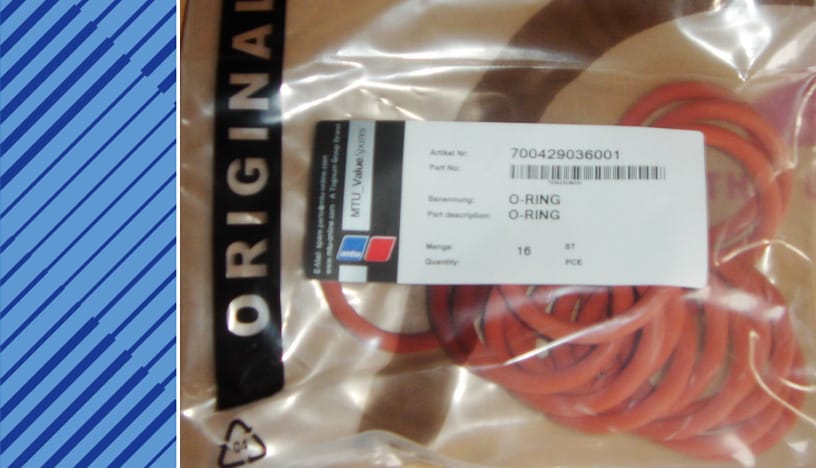

12 | O-RING | 700429036001 | 24 |
13 | O-RING | 700429040003 | 24 |
14 | CLAMP | 5500160597 | 14 |
15 | SPACER PLATE | 5550160095 | 14 |
16 | LIFTING STIRRUP | 5502230541 | 04 |
17 | HEX SCREW | 5500160769 | 28 |
18 | O-RING | 700429021000 | 28 |
19 | SCREW | 5500160069 | 16 |
20 | SCREW | 5500160169 | 24 |
21 | SCREW | 5559900204 | 08 |
22 | OIL LINE | 5551800022 | 07 |
23 | OIL LINE | 5551800122 | 01 |
24 | O-RING | 700429014000 | 16 |
25 | SEALING RING | 0029977940 | 24 |
26 | BANJO UNION | 8379900188 | 04 |
27 | DOUBLE BANJO UNION | 5379900086 | 04 |
28 | BANJO SCREW | 915011013102 | 12 |
29 | SEALING RING | 0029977940 | 24 |
30 | DOUBLE BANJO UNION | 5379900186 | 06 |
31 | BANJO SCREW | 915011013102 | 12 |
C/N | New Part Number | Superseded Part Number | Valid From Date |
---|---|---|---|
01 | 700429036001 | 0019970348 | N/A |
02 | 700429036001 | 0019972245 | 1985/01/01 |
Make | Year of construction | Power KW | U/MIN |
---|---|---|---|
12V 396 TC54 | N/A | 1125 | 1800 |
12V 396 TC54 | N/A | 1310 | 1800 |
12V 396 TC64 | N/A | 960 | 1600 |
12V 396 TE64 | N/A | 1020 | 1600 |
12V 396 TE74 | N/A | 1500 | 1900 |
12V 396 TE74L | N/A | 1500 | 1900 |
12V 396 TE74L | N/A | 1500 | 1800 |
12V 396 TE84 | N/A | 1500 | 1900 |
12V 396 TE94 | N/A | 1680 | 2000 |
12V 396 TB94 | N/A | 1920 | 2100 |
