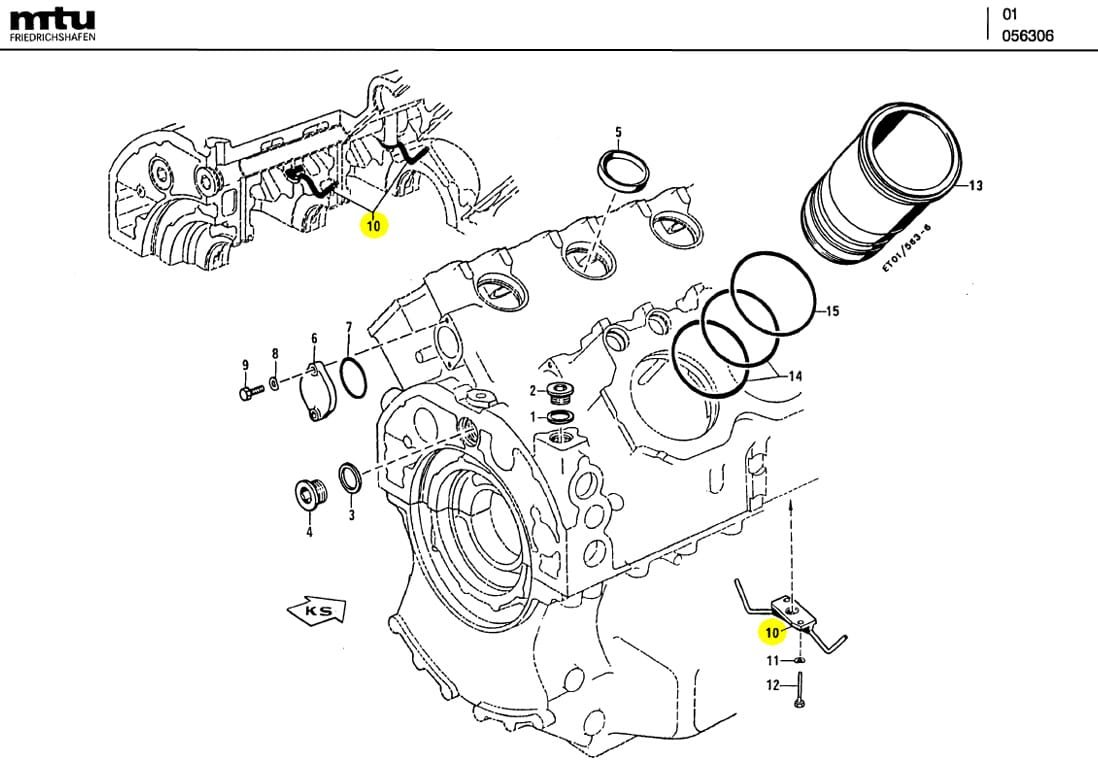

C/N | Description | Part-Number | Qty |
---|---|---|---|
01 | COPPER SEALING RING | 007603045101 | 02 |
02 | PLUG | 000908045003 | 02 |
03 | COPPER SEALING RING | 007603048101 | 02 |
04 | PLUG | 000908048004 | 02 |
05 | COVER | 735074100000 | 12 |
06 | COVER | 5500110132 | 01 |
07 | O-RING | 700429075002 | 02 |
08 | WASHER SPRING B8 | 000137008203 | 04 |
09 | HEX SCREW | 000933008115 | 04 |

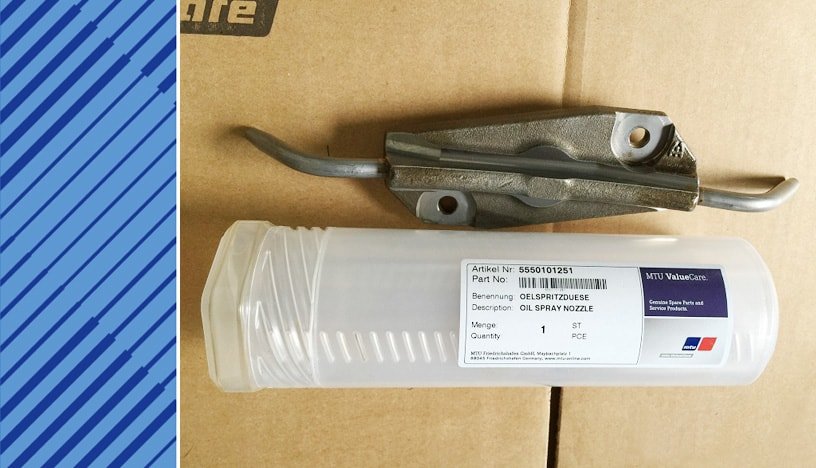

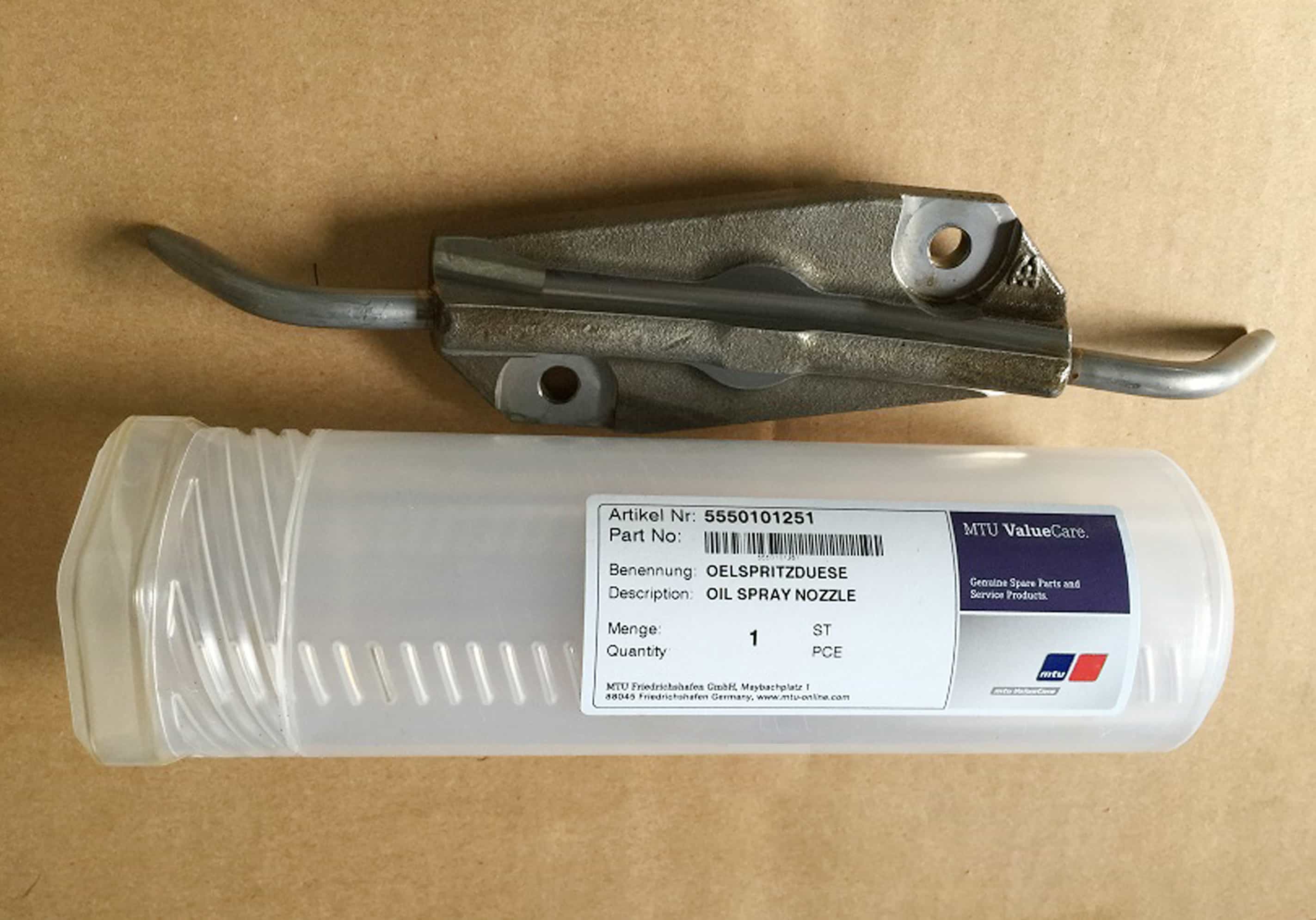

10 | OIL SPRAY NOZZLE | 5550101251 | 06 |
11 | WASHER SPRING B8 | 000137008203 | 12 |
12 | HEX SCREW | 000933008242 | 12 |
13 | CYLINDER LINER SIZE 0-0 | 5550111610 | 12 |
13A | CYLINDER LINER SIZE 0-1 | 5550111710 | 00 |
13B | CYLINDER LINER SIZE 0-2 | 5550111810 | 00 |
13C | CYLINDER LINER SIZE 1-1 | 5550111910 | 00 |
13D | CYLINDER LINER SIZE 1-2 | 5550112010 | 00 |
13E | CYLINDER LINER SIZE 2-2 | 5550112110 | 00 |
14 | SEALING RING | 5500110659 | 24 |
15 | O-RING | 5500110559 | 12 |
C/N | New Part Number | Superseded Part Number | Valid From Date |
---|---|---|---|
01 | 5550101251 | 5500100651 | N/A |
02 | 5550101251 | 5550100951 | 1991/04/01 |
03 | 5550101251 | 5500101451 | 1991/05/01 |
04 | 5550101251 | 5550101251 | 1991/06/01 |
Make | Year of construction | Power KW | U/MIN |
---|---|---|---|
12V 396 TC54 | N/A | 1125 | 1800 |
12V 396 TC54 | N/A | 1310 | 1800 |
12V 396 TC64 | N/A | 960 | 1600 |
12V 396 TE64 | N/A | 1020 | 1600 |
12V 396 TE74 | N/A | 1500 | 1900 |
12V 396 TE74L | N/A | 1500 | 1900 |
12V 396 TE74L | N/A | 1500 | 1800 |
12V 396 TE84 | N/A | 1500 | 1900 |
12V 396 TE94 | N/A | 1680 | 2000 |
12V 396 TB94 | N/A | 1920 | 2100 |
