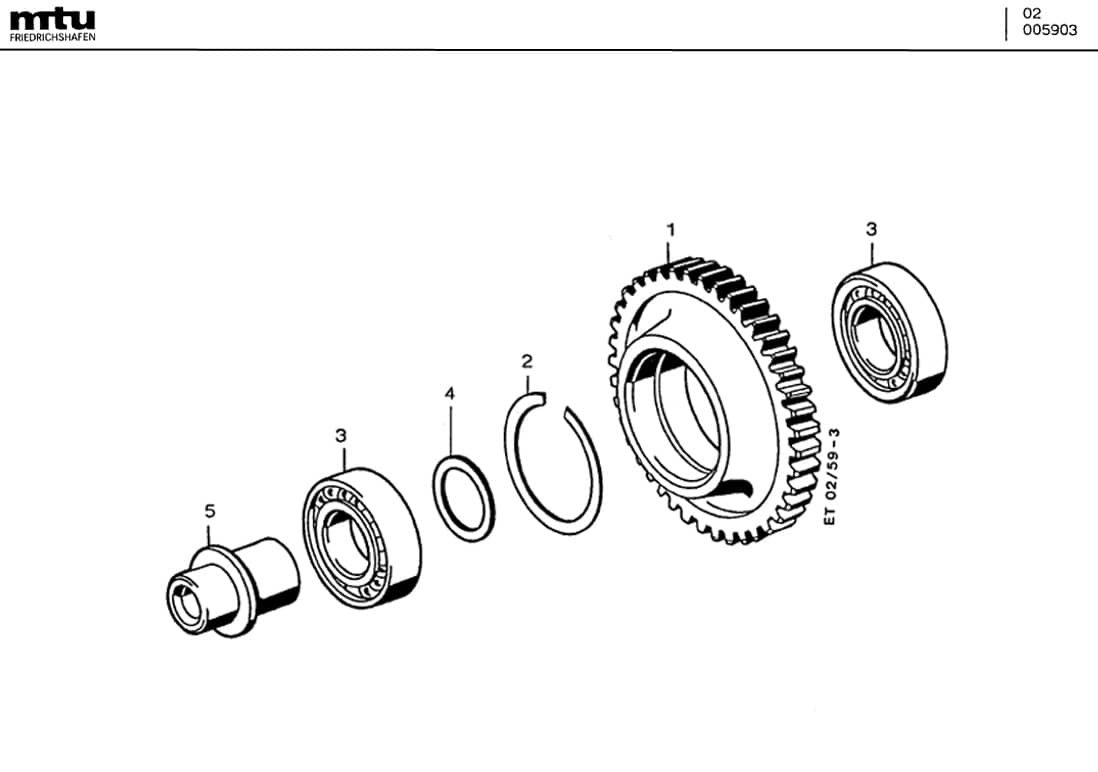

C/N | Description | Part-Number | Qty |
---|---|---|---|

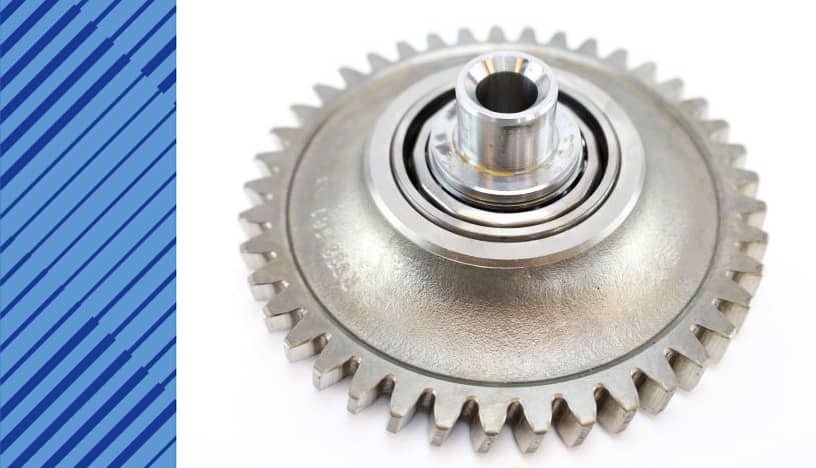

000 | IDLER GEAR | 5501800106 | 01 |
01 | IDLER GEAR | 8381810313 | 01 |
02 | SNAP RING | 5509940034 | 01 |
03 | ANGLR-CONT BALL BRG | 0009813527 | 02 |
04 | WASHER | 8381810852 | 01 |
05 | BEARING PIN | 8381810625 | 01 |
C/N | New Part Number | Superseded Part Number | Valid From Date |
---|---|---|---|
01 | 5501800106 | 5501800006 | N/A |
02 | 5501800106 | 5501800106 | 1990/12/01 |
Make | Year of construction | Power KW | U/MIN |
---|---|---|---|
12V 396 TC54 | N/A | 1125 | 1800 |
12V 396 TC54 | N/A | 1310 | 1800 |
12V 396 TC64 | N/A | 960 | 1600 |
12V 396 TE64 | N/A | 1020 | 1600 |
12V 396 TE74 | N/A | 1500 | 1900 |
12V 396 TE74L | N/A | 1500 | 1900 |
12V 396 TE74L | N/A | 1500 | 1800 |
12V 396 TE84 | N/A | 1500 | 1900 |
12V 396 TE94 | N/A | 1680 | 2000 |
12V 396 TB94 | N/A | 1920 | 2100 |
