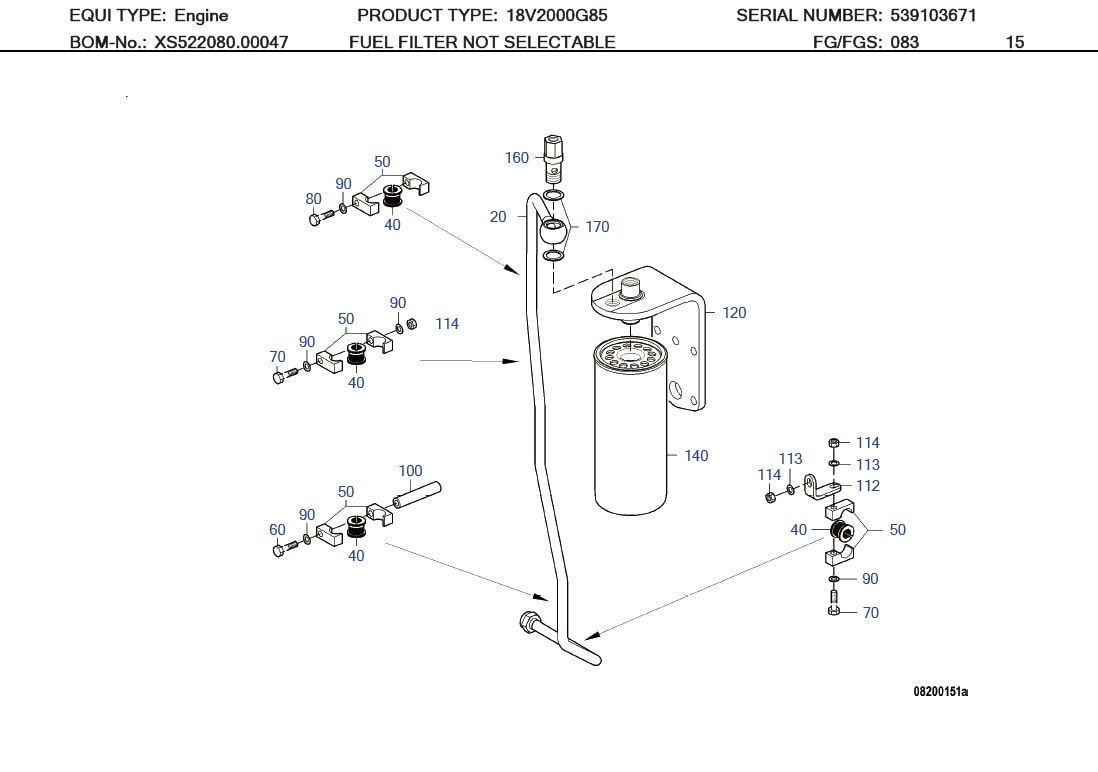

C/N | Description | Part-Number | Qty |
---|---|---|---|
20 | FUEL PIPELINE | X00018919 | 001 |
40 | GROMMET | 700327015000 | 004 |
50 | CLAMP HALF TUBE 1/1 D9-22 | 700325022100 | 008 |
60 | HEX SCREW | 000931008219 | 001 |
70 | HEX SCREW | 204017008028 | 002 |
80 | HEX SCREW | 204014008023 | 001 |
90 | WASHER | 000125008427 | 005 |
100 | SPACER BUSHING | 5531530153 | 001 |
112 | RETAINER | 5220180340 | 001 |
113 | WASHER | 007349008000 | 002 |
114 | NUT HEX 8 A3C | 304032008014 | 003 |
120 | RETAINER | X00014447 | 001 |

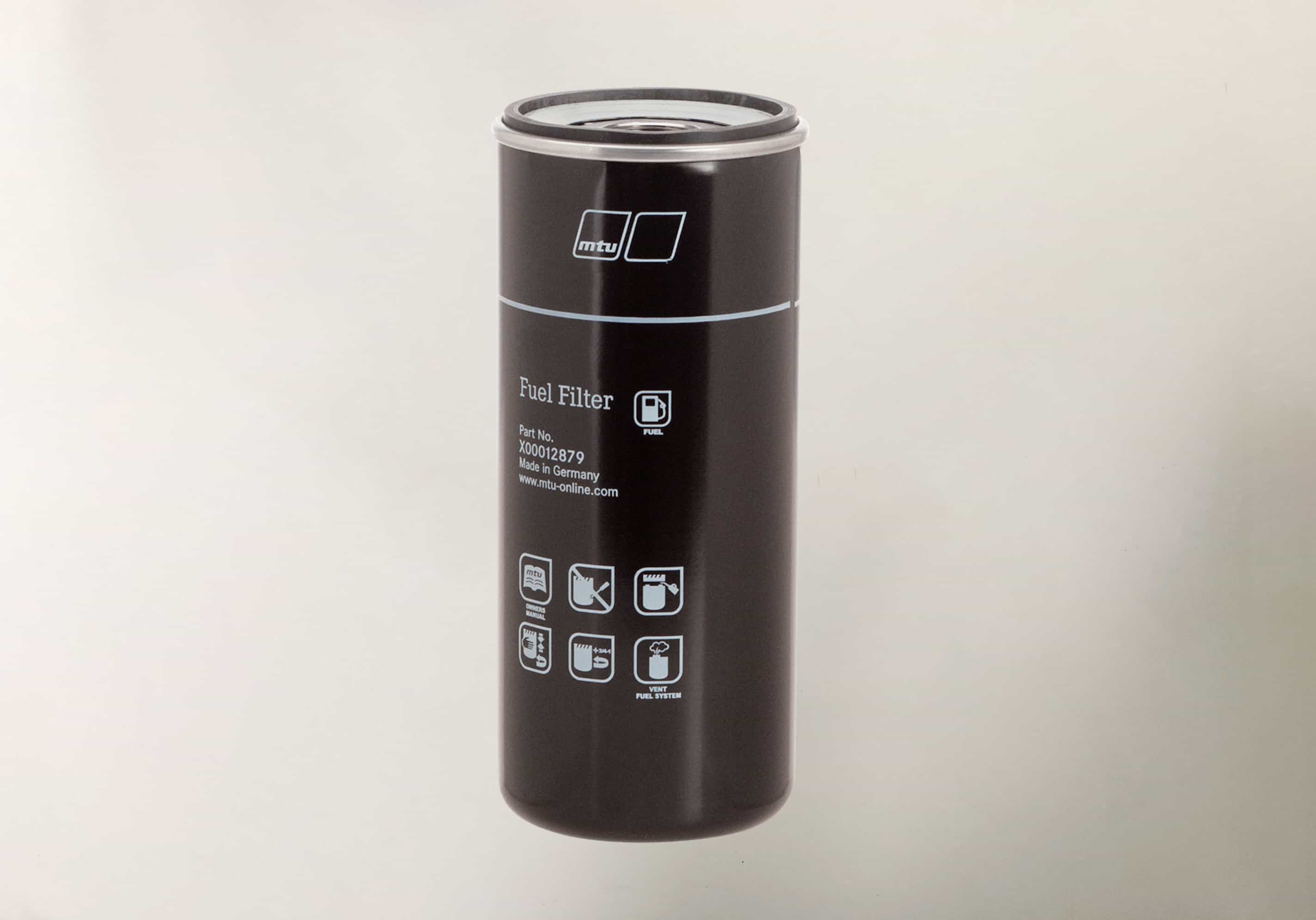

140 | FUEL FILTER SPIN-ON | 0020922801 | 001 |
160 | THREADED BUSHING FOR TEMPERATURE | X00014429 | 001 |
170 | COPPER SEALING RING | 007603022102 | 002 |
C/N | New Part Number | Superseded Part Number | Valid From Date |
---|---|---|---|
01 | X00012879 | SUA85613 | N/A |
02 | X00012879 | 0020922801 | 2016/01/15 |
03 | X00012879 | X59408300094 | 2017/01/10 |
04 | X00012879 | X00012879 | 2018/10/06 |
Make | Rated power kW | Speed rpm | Bore/stroke mm (in) |
---|---|---|---|
8V 2000 M72 | 720 | 2250 | 135/156 (5.3/6.1) |
10V 2000 M72 | 900 | 2250 | 135/156 (5.3/6.1) |
12V 2000 M93 | 1340 | 2450 | 135/156 (5.3/6.1) |
16V 2000 M93 | 1790 | 2450 | 135/156 (5.3/6.1) |
12V 2000 M92 | 1220 | 2450 | 135/156 (5.3/6.1) |
16V 2000 M92 | 1630 | 2450 | 135/156 (5.3/6.1) |
12V 2000 M72 | 1080 | 2250 | 135/156 (5.3/6.1) |
16V 2000 M72 | 1440 | 2250 | 135/156 (5.3/6.1) |
8V 2000 M94 | 932 | 2450 | 135/156 (5.3/6.1) |
8V 2000 M84 | 810 | 2450 | 135/156 (5.3/6.1) |
8V 2000 M84L | 895 | 2450 | 135/156 (5.3/6.1) |
12V 2000 M61 | 600 | 1800 | 130/150 (5.1/5.9) |
16V 2000 M61 | 800 | 1800 | 130/150 (5.1/5.9) |
8V 2000 M61 | 400 | 1800 | 130/150 (5.1/5.9) |
10V 2000 M86 | 1015 | 2450 | 135/156 (5.3/6.1) |
12V 2000 M86 | 1268 | 2450 | 135/156 (5.3/6.1) |
16V 2000 M86 | 1630 | 2450 | 135/156 (5.3/6.1) |
10V 2000 M96 | 1120 | 2450 | 135/156 (5.3/6.1) |
