| PART NUMBER | X53620200052/87 |
| ENGINE TYPE | MTU 2000 ENGINE |
| DESCRIPTION | COOLANT PUMP |
| DIMENSIONS | N/A |
| UNIT WEIGHT | 32.520 KG |
| HS CODE | 84133080 |
| NATO-VERS.-NR. | 2930124068679 |

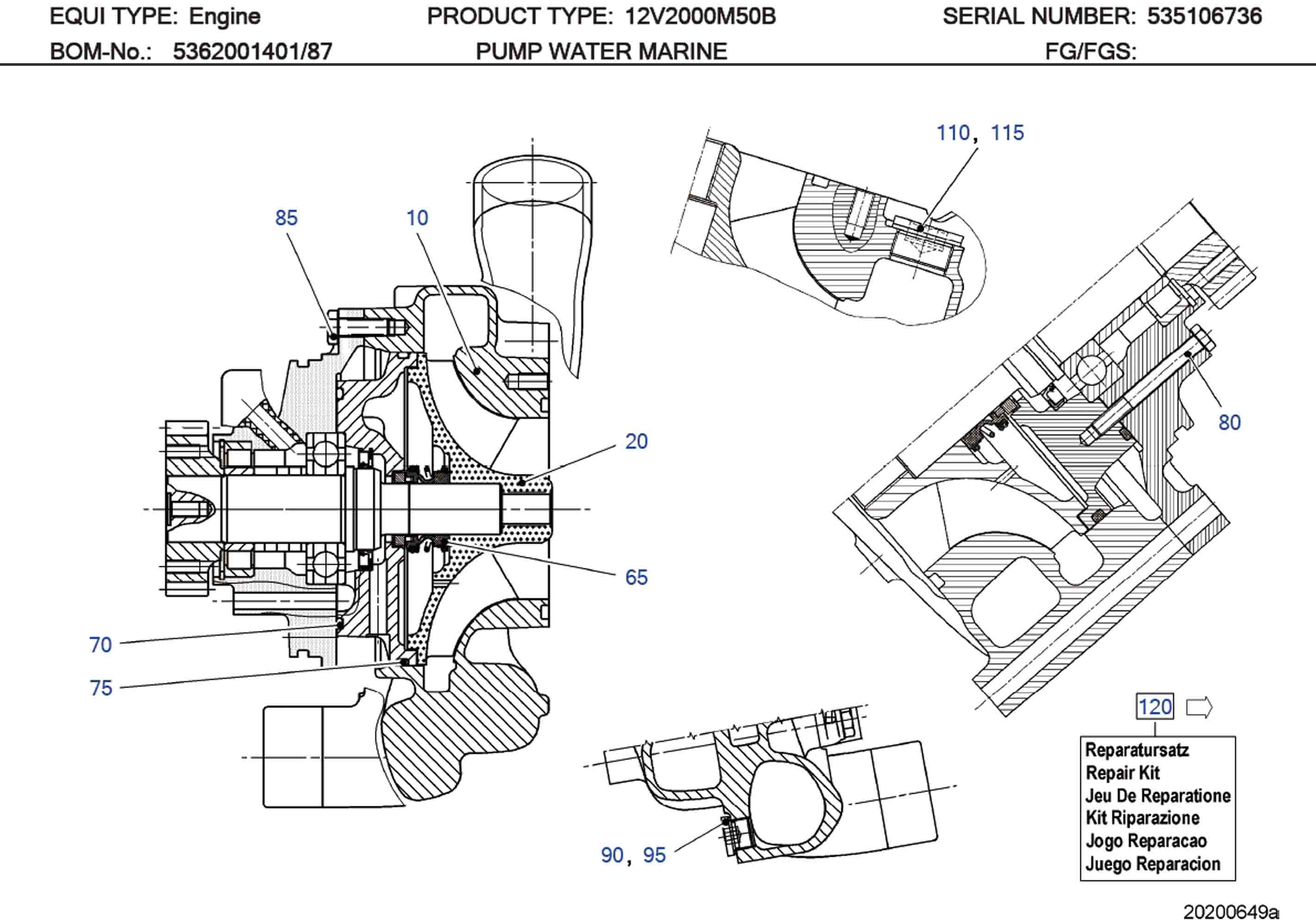

| C/N | Description | Part-Number | Qty |
|---|---|---|---|
| 000 | PUMP WATER MARINE | 5362001401/87 | 001 |
| 10 | VOLUTE | 5362010801 | 001 |
| 20 | IMPELLER F/ENGINE COOLANT PM | 5362010907 | 001 |
| 65 | SEAL ROTARY | 0012011619 | 001 |
| 70 | O-RING | 700429135000 | 001 |
| 75 | O-RING | 700429172000 | 001 |
| 80 | BOLT HEX | 000931008241 | 004 |
| 85 | BOLT HEX | 000933010092 | 004 |
| 90 | COPPER SEALING RING | 007603018101 | 001 |
| 95 | PLUG | 000908018008 | 001 |
| 110 | COPPER SEALING RING | 007603030101 | 001 |
| 115 | THREAD PLUG | 000908030002 | 001 |
| 120 | REPAIR KIT | 8695860521 | 001 |
| C/N | New Part Number | Superseded Part Number | Valid From Date |
|---|---|---|---|
| 01 | X53620200052/87 | 5362001101/87 | N/A |
| 02 | X53620200052/87 | E5362001101/87 | 1997/09/01 |
| 03 | X53620200052/87 | 5362001301/87 | 1998/10/01 |
| 04 | X53620200052/87 | E5362001301/87 | 1998/11/01 |
| 05 | X53620200052/87 | E5362001401/87 | 2014/10/01 |
| 06 | X53620200052/87 | EX53620200052/87 | 2014/11/01 |
| 07 | X53620200052/87 | 5362001401/87 | 2014/12/01 |
| 08 | X53620200052/87 | X53620200052/87 | 2015/01/01 |
| Make | Rated power kW | Speed rpm | Bore/stroke mm (in) |
|---|---|---|---|
| 8V 2000 M72 | 720 | 2250 | 135/156 (5.3/6.1) |
| 10V 2000 M72 | 900 | 2250 | 135/156 (5.3/6.1) |
| 12V 2000 M93 | 1340 | 2450 | 135/156 (5.3/6.1) |
| 16V 2000 M93 | 1790 | 2450 | 135/156 (5.3/6.1) |
| 12V 2000 M92 | 1220 | 2450 | 135/156 (5.3/6.1) |
| 16V 2000 M92 | 1630 | 2450 | 135/156 (5.3/6.1) |
| 12V 2000 M72 | 1080 | 2250 | 135/156 (5.3/6.1) |
| 16V 2000 M72 | 1440 | 2250 | 135/156 (5.3/6.1) |
| 8V 2000 M94 | 932 | 2450 | 135/156 (5.3/6.1) |
| 8V 2000 M84 | 810 | 2450 | 135/156 (5.3/6.1) |
| 8V 2000 M84L | 895 | 2450 | 135/156 (5.3/6.1) |
| 12V 2000 M61 | 600 | 1800 | 130/150 (5.1/5.9) |
| 16V 2000 M61 | 800 | 1800 | 130/150 (5.1/5.9) |
| 8V 2000 M61 | 400 | 1800 | 130/150 (5.1/5.9) |
| 10V 2000 M86 | 1015 | 2450 | 135/156 (5.3/6.1) |
| 12V 2000 M86 | 1268 | 2450 | 135/156 (5.3/6.1) |
| 16V 2000 M86 | 1630 | 2450 | 135/156 (5.3/6.1) |
| 10V 2000 M96 | 1120 | 2450 | 135/156 (5.3/6.1) |
