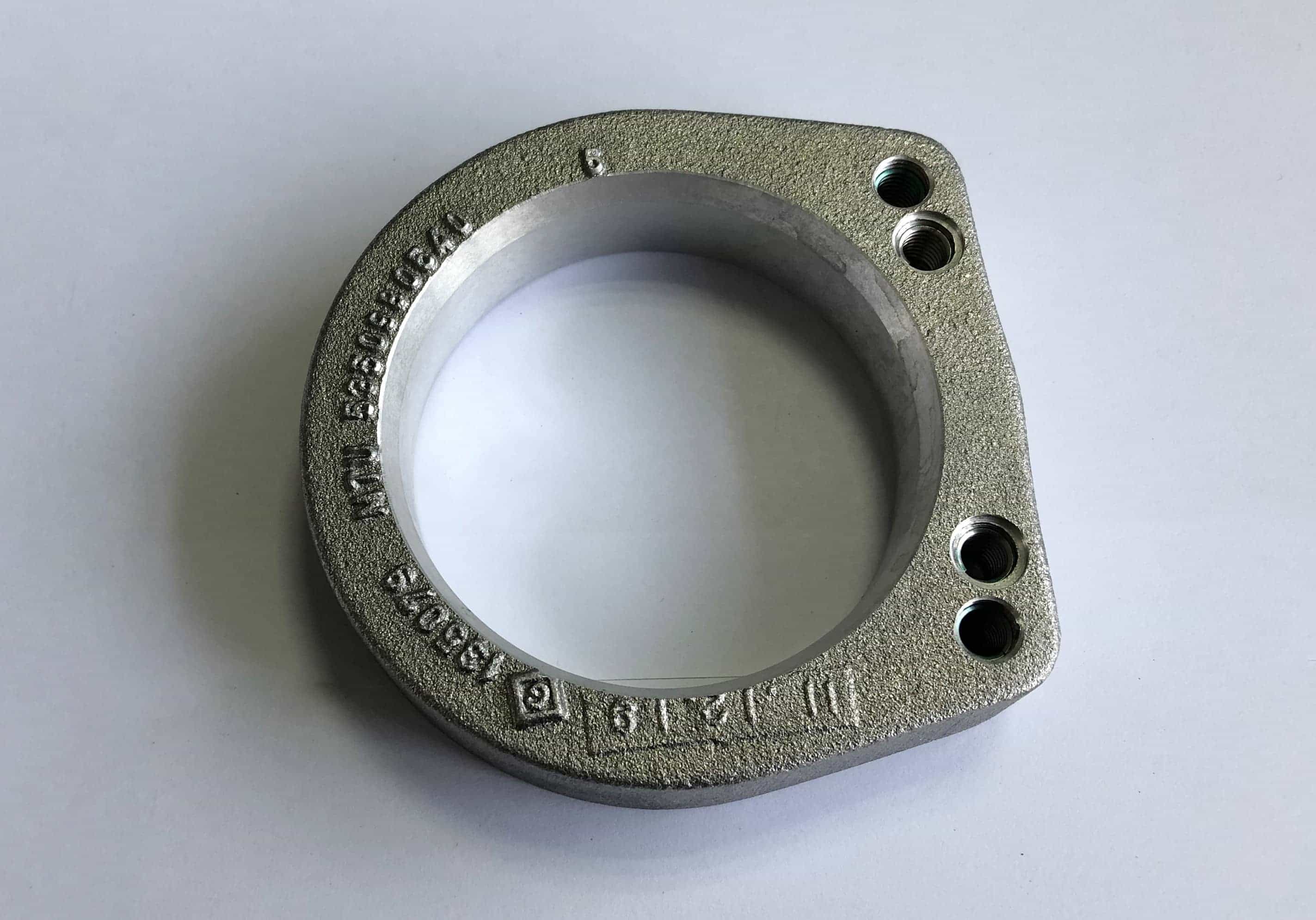

| PART NUMBER | X51510100022 |
| ENGINE TYPE | MTU 2000 ENGINE |
| DESCRIPTION | FLANGE |
| DIMENSIONS | N/A |
| UNIT WEIGHT | 0.290 KG |
| HS CODE | 73079100 |
| NATO-VERS.-NR. | 4730123874962 |

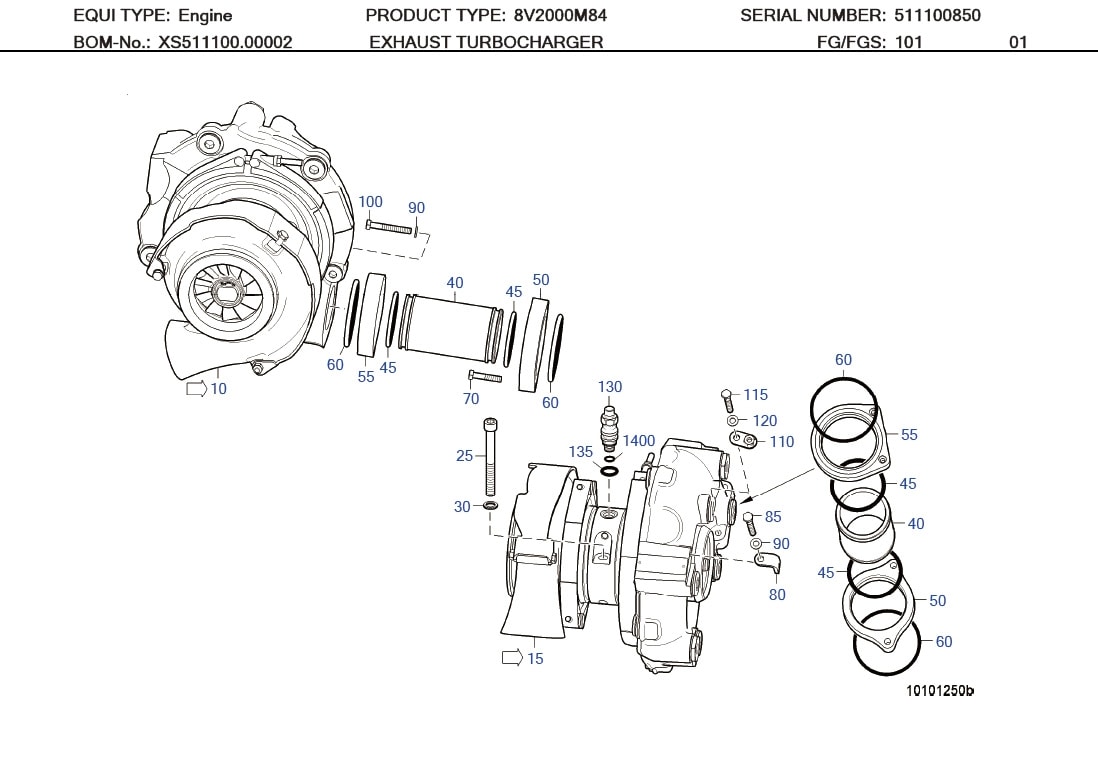

| C/N | Description | Part-Number | Qty |
|---|---|---|---|
| 10 | EXHAUST TURBOCHARGER LEFT SIDE | XT1310100336 | 001 |
| 15 | EXHAUST TURBOCHARGER RIGHT SIDE | XT1310100337 | 001 |
| 25 | SCREW | 000912012074 | 004 |
| 30 | WASHER | 200433013001 | 004 |
| 40 | PLUG-IN PIPE | 5320900136 | 002 |
| 43 | GREASE | 50667 | 001 |
| 45 | O-RING | 700429070000 | 004 |
| 50 | FLANGE | X51110100040 | 002 |
| 55 | FLANGE | X51510100022 | 002 |
| 60 | O-RING | 700429090002 | 004 |
| 70 | HEX SCREW | 304017008085 | 003 |
| 80 | ANGLE | 5502030043 | 001 |
| 85 | HEX SCREW | 304017008086 | 001 |
| 90 | WASHER | 000125008427 | 004 |
| 100 | HEX SCREW | 304017008089 | 003 |
| 110 | BRACKET FLAT W/MB NU T H:60 | 8331501573 | 001 |
| 115 | HEX SCREW | 000933008242 | 001 |
| 120 | WASHER | 000125008427 | 004 |
| 130 | UNION | 5329900068 | 002 |
| 135 | O-RING | 700429018005 | 002 |
| 1400 | O-RING | 735221011000 | 002 |
| C/N | New Part Number | Superseded Part Number | Valid From Date |
|---|---|---|---|
| 01 | X51510100022 | 5350900044 | N/A |
| 02 | X51510100022 | X51510100022 | 2008/01/01 |
| Make | Rated power kW | Speed rpm | Bore/stroke mm (in) |
|---|---|---|---|
| 8V 2000 M72 | 720 | 2250 | 135/156 (5.3/6.1) |
| 10V 2000 M72 | 900 | 2250 | 135/156 (5.3/6.1) |
| 12V 2000 M93 | 1340 | 2450 | 135/156 (5.3/6.1) |
| 16V 2000 M93 | 1790 | 2450 | 135/156 (5.3/6.1) |
| 12V 2000 M92 | 1220 | 2450 | 135/156 (5.3/6.1) |
| 16V 2000 M92 | 1630 | 2450 | 135/156 (5.3/6.1) |
| 12V 2000 M72 | 1080 | 2250 | 135/156 (5.3/6.1) |
| 16V 2000 M72 | 1440 | 2250 | 135/156 (5.3/6.1) |
| 8V 2000 M94 | 932 | 2450 | 135/156 (5.3/6.1) |
| 8V 2000 M84 | 810 | 2450 | 135/156 (5.3/6.1) |
| 8V 2000 M84L | 895 | 2450 | 135/156 (5.3/6.1) |
| 12V 2000 M61 | 600 | 1800 | 130/150 (5.1/5.9) |
| 16V 2000 M61 | 800 | 1800 | 130/150 (5.1/5.9) |
| 8V 2000 M61 | 400 | 1800 | 130/150 (5.1/5.9) |
| 10V 2000 M86 | 1015 | 2450 | 135/156 (5.3/6.1) |
| 12V 2000 M86 | 1268 | 2450 | 135/156 (5.3/6.1) |
| 16V 2000 M86 | 1630 | 2450 | 135/156 (5.3/6.1) |
| 10V 2000 M96 | 1120 | 2450 | 135/156 (5.3/6.1) |
