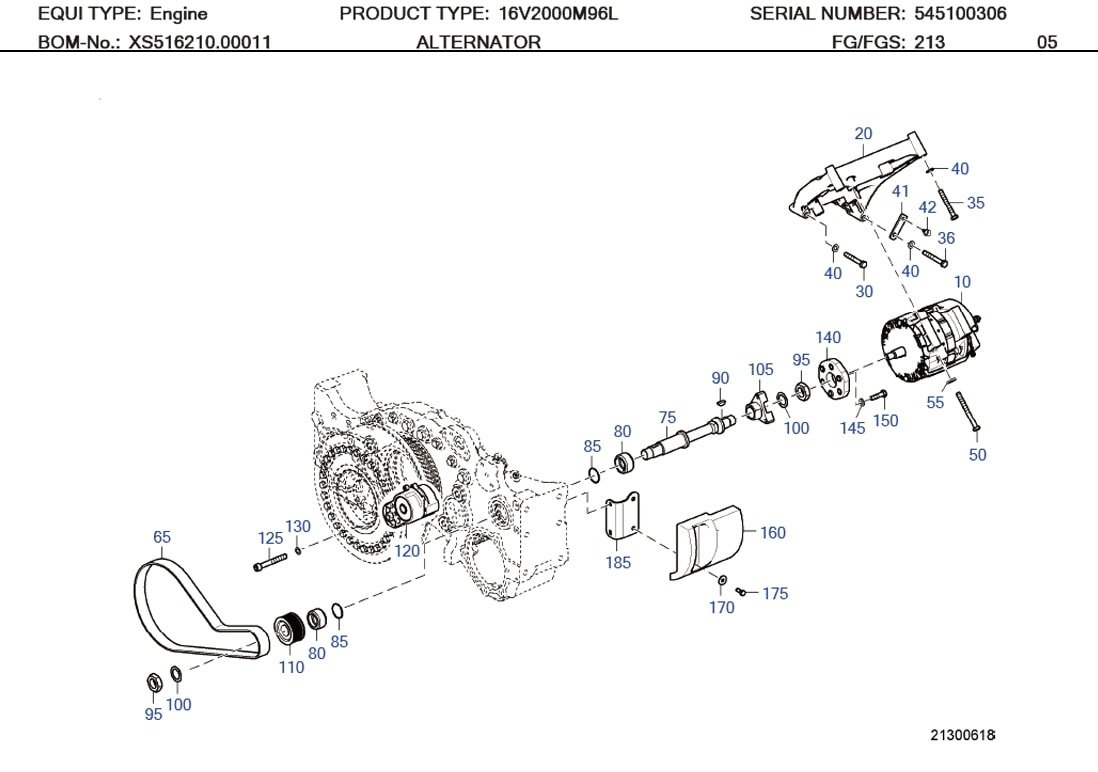

C/N | Description | Part-Number | Qty |
---|---|---|---|
10 | GENERATOR | X51621300033 | 001 |
20 | SUPPORT FOR GENERATOR | X51621300038 | 001 |
30 | HEX SCREW | 000000001076 | 001 |
35 | HEX SCREW | 000000000906 | 002 |
36 | HEX SCREW | 000000004742 | 001 |
40 | WASHER | 000125010524 | 004 |
42 | CLAMP CABLE DN10 | 0001596440 | 001 |
50 | HEX SCREW | 000000003922 | 004 |
55 | WASHER | 007349010002 | 004 |

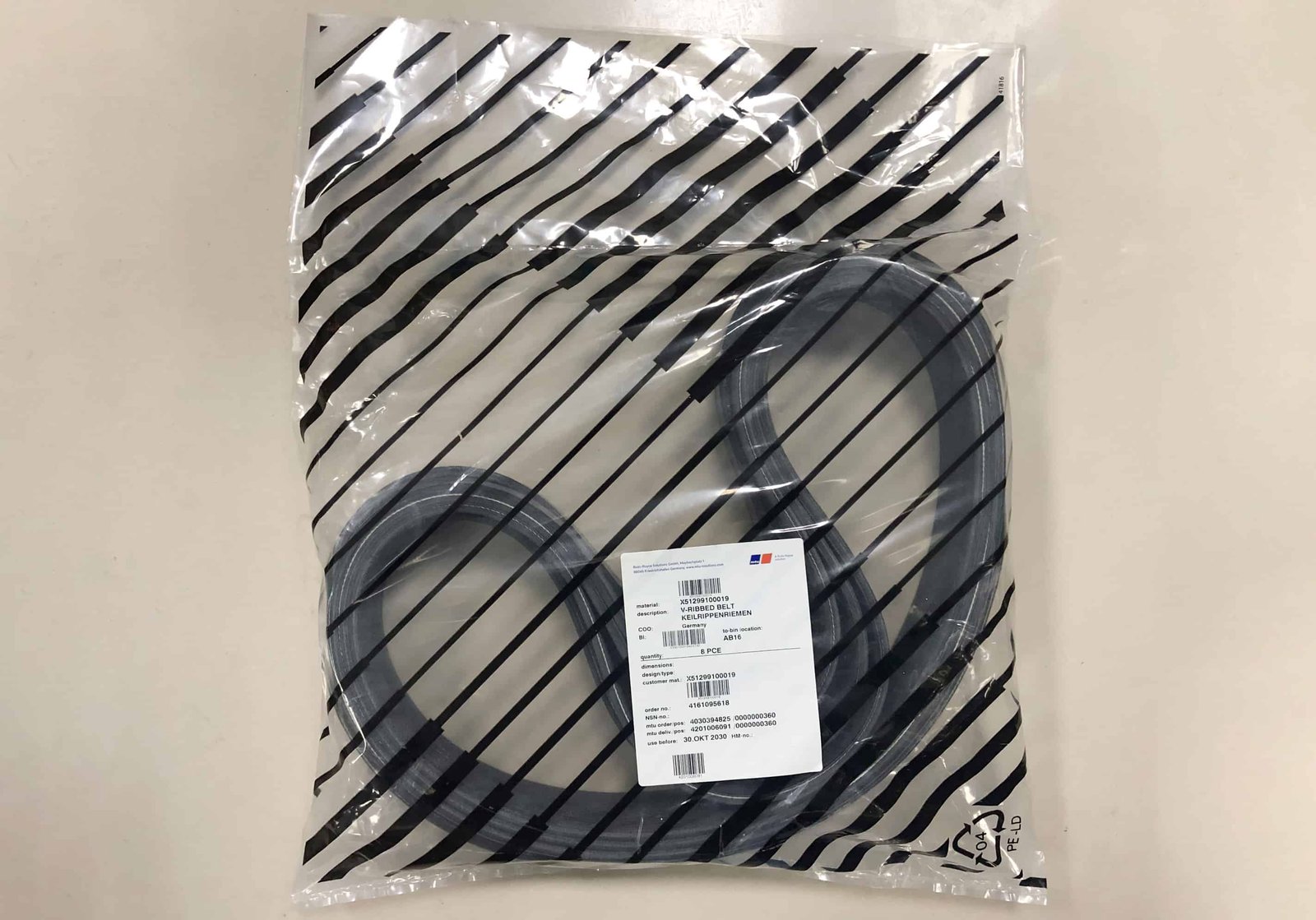

65 | V-RIBBED BELT | X51299100019 | 001 |
75 | SHAFT | 5321550403 | 001 |
80 | SPACER SLEEVE | X53202700002 | 002 |
85 | O-RING | 700429034000 | 002 |
90 | WOODRUFF KEY | 006888008005 | 002 |
95 | HEX NUT | 000000002779 | 002 |
100 | ADJUSTING WASHER | 000988028001 | 002 |
105 | FLANGE | 5321550244 | 001 |
110 | BELT PULLEY | X51299100018 | 001 |
120 | V-BELT TENSIONER | 0005590471 | 001 |
125 | SCREW | 000912012091 | 001 |
130 | ADJUSTING WASHER | 000988013001 | 001 |
140 | JOINT PLATE | X51621300006 | 001 |
145 | WASHER | 000125010524 | 006 |
150 | HEX SCREW | 000000001039 | 006 |
160 | PROTECTIVE COVER FOR GENERATOR | X51221300007 | 001 |
170 | WASHER | 009021008204 | 002 |
175 | HEX SCREW | 304017008079 | 002 |
185 | RETAINER | X51699100245 | 001 |
Make | Rated power kW | Speed rpm | Bore/stroke mm (in) |
---|---|---|---|
8V 2000 M72 | 720 | 2250 | 135/156 (5.3/6.1) |
10V 2000 M72 | 900 | 2250 | 135/156 (5.3/6.1) |
12V 2000 M93 | 1340 | 2450 | 135/156 (5.3/6.1) |
16V 2000 M93 | 1790 | 2450 | 135/156 (5.3/6.1) |
12V 2000 M92 | 1220 | 2450 | 135/156 (5.3/6.1) |
16V 2000 M92 | 1630 | 2450 | 135/156 (5.3/6.1) |
12V 2000 M72 | 1080 | 2250 | 135/156 (5.3/6.1) |
16V 2000 M72 | 1440 | 2250 | 135/156 (5.3/6.1) |
8V 2000 M94 | 932 | 2450 | 135/156 (5.3/6.1) |
8V 2000 M84 | 810 | 2450 | 135/156 (5.3/6.1) |
8V 2000 M84L | 895 | 2450 | 135/156 (5.3/6.1) |
12V 2000 M61 | 600 | 1800 | 130/150 (5.1/5.9) |
16V 2000 M61 | 800 | 1800 | 130/150 (5.1/5.9) |
8V 2000 M61 | 400 | 1800 | 130/150 (5.1/5.9) |
10V 2000 M86 | 1015 | 2450 | 135/156 (5.3/6.1) |
12V 2000 M86 | 1268 | 2450 | 135/156 (5.3/6.1) |
16V 2000 M86 | 1630 | 2450 | 135/156 (5.3/6.1) |
10V 2000 M96 | 1120 | 2450 | 135/156 (5.3/6.1) |
