| PART NUMBER | XP51529700004 |
| ENGINE TYPE | MTU 2000 ENGINE |

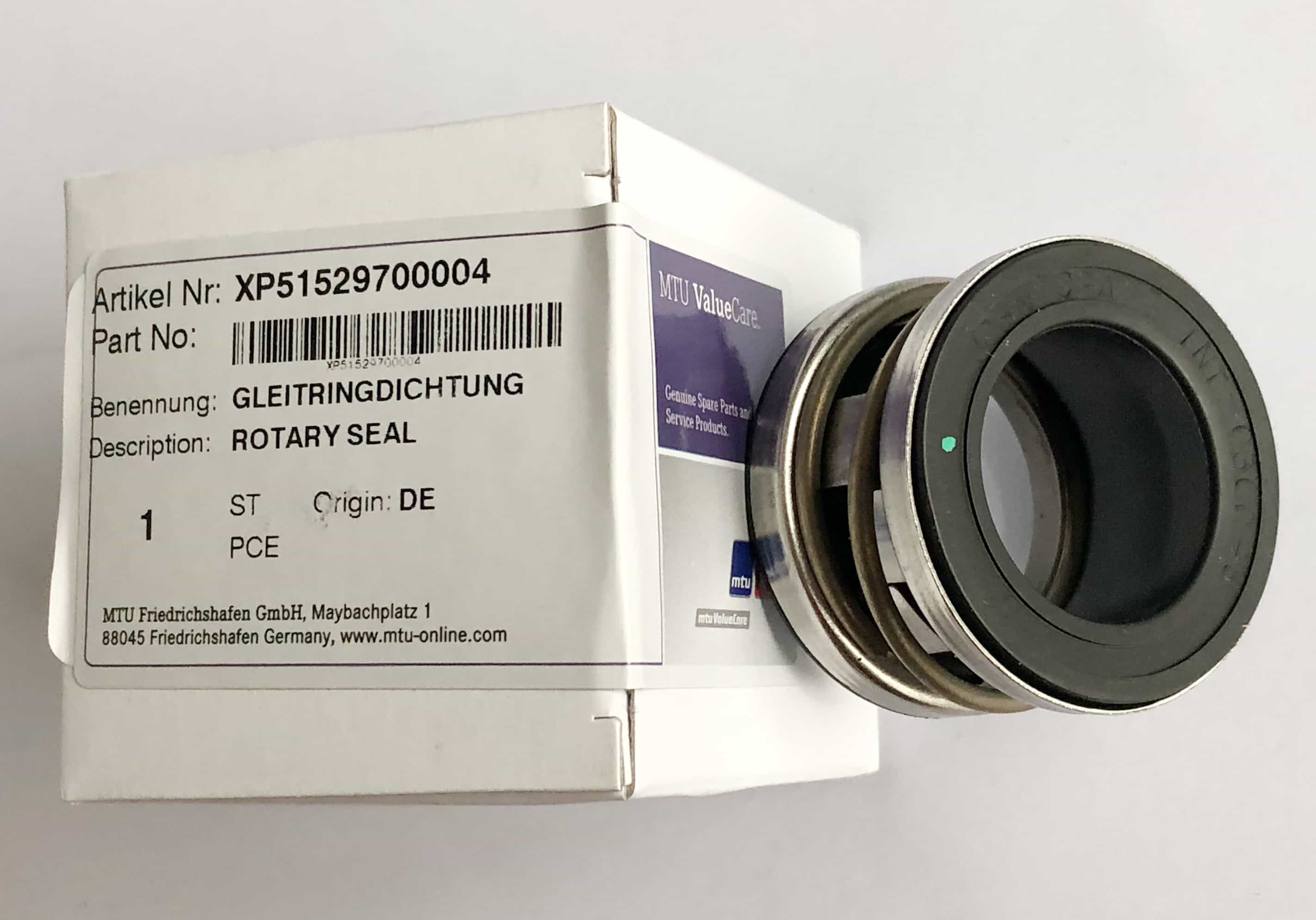

| DESCRIPTION | ROTARY SEAL |
| DIMENSIONS | N/A |
| UNIT WEIGHT | 0.080 KG |
| HS CODE | 84842000 |
| NATO-VERS.-NR. | 4320123845990 |

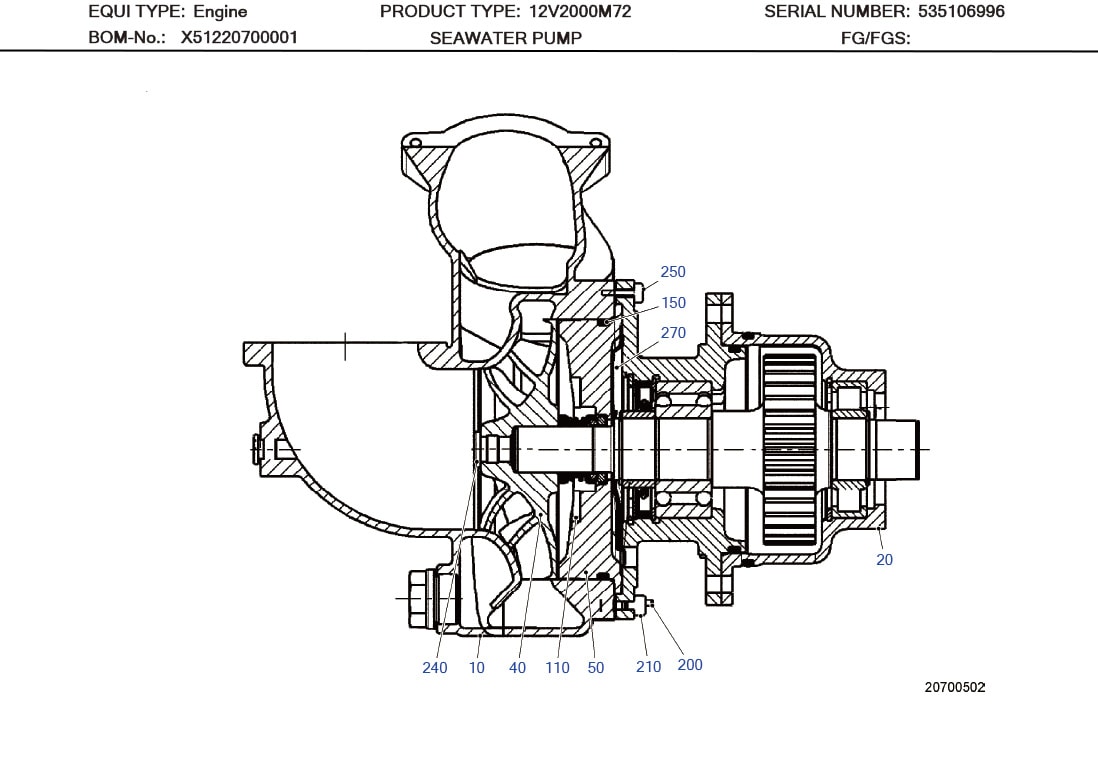

| C/N | Description | Part-Number | Qty |
|---|---|---|---|
| 10 | HOUSING | Z=BGE170L-MTUSF01 | 001 |
| 20 | CONDITIONING UNITZU PKZT170L--062730 | XP51220700004 | 001 |
| 40 | IMPELLER | X00017269 | 001 |
| 50 | INTERMEDIATE MEMBER | XP51529700001 | 001 |
| 110 | ROTARY SEAL | XP51529700004 | 001 |
| 150 | O-RING | XP51529700005 | 001 |
| 200 | STUD | 000939008078 | 004 |
| 210 | NUT HEX | 000934008008 | 004 |
| 240 | PLUG | 8699970412 | 001 |
| 250 | HEX SCREW | 000933008114 | 002 |
| 270 | SPLASH GUARD | XP51299100033 | 001 |
| Make | Rated power kW | Speed rpm | Bore/stroke mm (in) |
|---|---|---|---|
| 8V 2000 M72 | 720 | 2250 | 135/156 (5.3/6.1) |
| 10V 2000 M72 | 900 | 2250 | 135/156 (5.3/6.1) |
| 12V 2000 M93 | 1340 | 2450 | 135/156 (5.3/6.1) |
| 16V 2000 M93 | 1790 | 2450 | 135/156 (5.3/6.1) |
| 12V 2000 M92 | 1220 | 2450 | 135/156 (5.3/6.1) |
| 16V 2000 M92 | 1630 | 2450 | 135/156 (5.3/6.1) |
| 12V 2000 M72 | 1080 | 2250 | 135/156 (5.3/6.1) |
| 16V 2000 M72 | 1440 | 2250 | 135/156 (5.3/6.1) |
| 8V 2000 M94 | 932 | 2450 | 135/156 (5.3/6.1) |
| 8V 2000 M84 | 810 | 2450 | 135/156 (5.3/6.1) |
| 8V 2000 M84L | 895 | 2450 | 135/156 (5.3/6.1) |
| 12V 2000 M61 | 600 | 1800 | 130/150 (5.1/5.9) |
| 16V 2000 M61 | 800 | 1800 | 130/150 (5.1/5.9) |
| 8V 2000 M61 | 400 | 1800 | 130/150 (5.1/5.9) |
| 10V 2000 M86 | 1015 | 2450 | 135/156 (5.3/6.1) |
| 12V 2000 M86 | 1268 | 2450 | 135/156 (5.3/6.1) |
| 16V 2000 M86 | 1630 | 2450 | 135/156 (5.3/6.1) |
| 10V 2000 M96 | 1120 | 2450 | 135/156 (5.3/6.1) |
