PART NUMBER X53604200005
ENGINE TYPE MTU 2000 ENGINE
DESCRIPTION SEALING PLATE INNER
DIMENSIONS BR2000 CR
UNIT WEIGHT 0.380 KG
HS CODE 84099900
NATO-VERS.-NR. 5340123861070
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Part details
  • original parts

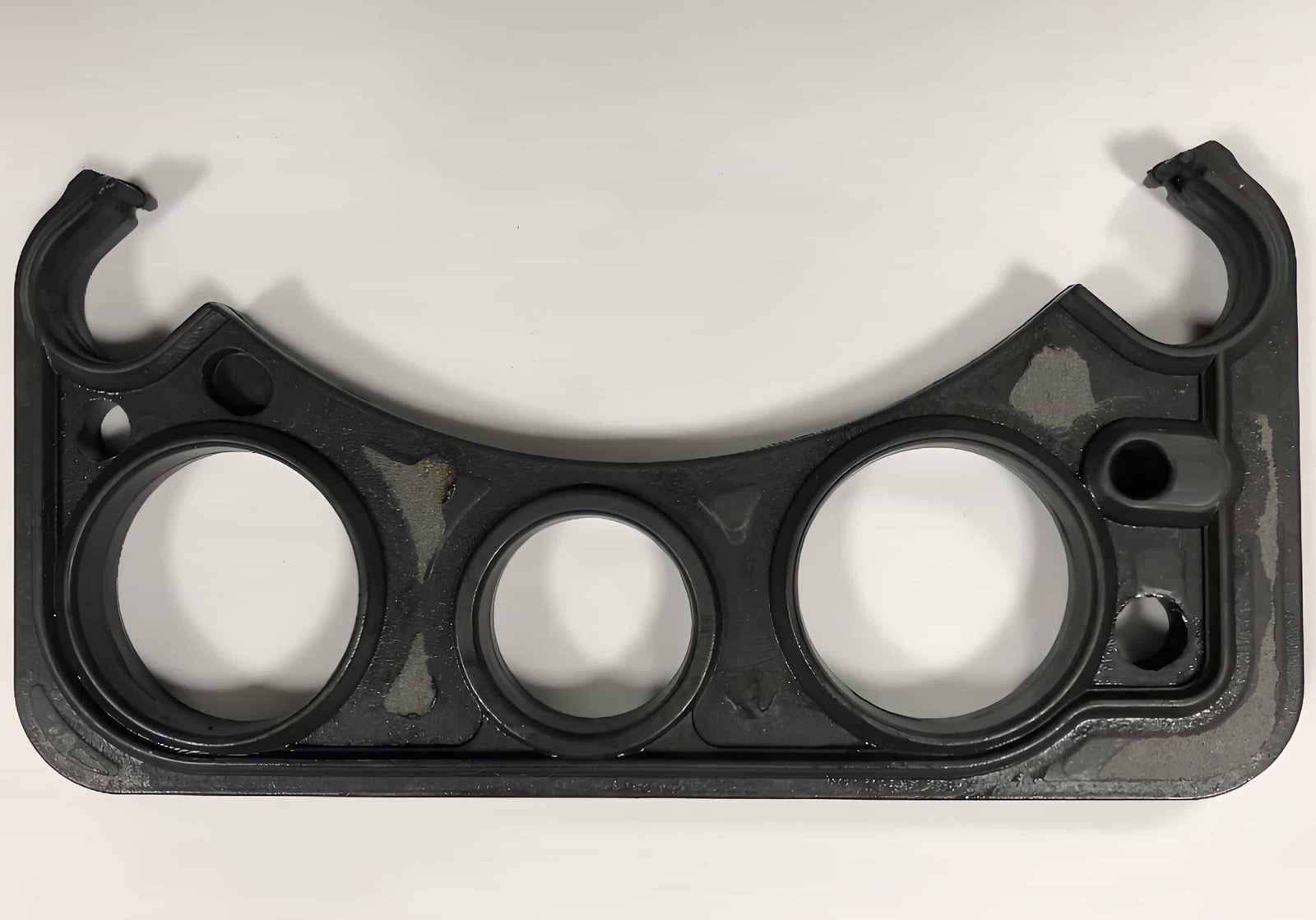

MTU X53604200005 CYLINDER HEAD SEALING PLATE

MTU X53604200005 Technical Engineering Exploded View MTU X53604200005 CYLINDER HEAD SEALING PLATE

MTU X53604200005 CYLINDER HEAD SEALING PLATE

C/N Description Part-Number Qty
40 CYLINDER HEAD 5360101420 012
50 BOLT 12 PT CYL HD MTG 5419900501 048
55 CYLINDER HEAD GASKET X00029801 012
75 SPRING PIN 5329910241 024
80 SPRING PIN 007346008009 024
90 GASKET PLATE INNER X00004885 012
95 GASKET PLATE OUTER X00004884 012

X53604200005 SUPERSEDED PART AND EFFECTIVE DATE

X53604200005 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 X53604200009 X00004885 N/A
02 X53604200009 X53604200005 2010/09/01
03 X53604200009 X53604200009 2023/12/01

MTU 2000 Diesel Engine Models & Specifications

MTU 2000 M96 Family

MTU 2000 Diesel Engine Models & Specifications

Make Rated power kW Speed rpm Bore/stroke mm (in)
8V 2000 M72 720 2250 135/156 (5.3/6.1)
10V 2000 M72 900 2250 135/156 (5.3/6.1)
12V 2000 M93 1340 2450 135/156 (5.3/6.1)
16V 2000 M93 1790 2450 135/156 (5.3/6.1)
12V 2000 M92 1220 2450 135/156 (5.3/6.1)
16V 2000 M92 1630 2450 135/156 (5.3/6.1)
12V 2000 M72 1080 2250 135/156 (5.3/6.1)
16V 2000 M72 1440 2250 135/156 (5.3/6.1)
8V 2000 M94 932 2450 135/156 (5.3/6.1)
8V 2000 M84 810 2450 135/156 (5.3/6.1)
8V 2000 M84L 895 2450 135/156 (5.3/6.1)
12V 2000 M61 600 1800 130/150 (5.1/5.9)
16V 2000 M61 800 1800 130/150 (5.1/5.9)
8V 2000 M61 400 1800 130/150 (5.1/5.9)
10V 2000 M86 1015 2450 135/156 (5.3/6.1)
12V 2000 M86 1268 2450 135/156 (5.3/6.1)
16V 2000 M86 1630 2450 135/156 (5.3/6.1)
10V 2000 M96 1120 2450 135/156 (5.3/6.1)
