5090250350 BEARING BUSHING

Other
Other 5320900001 AIR FILTER X59320200040 FILTER CARTRIDGE FOR COOLANT X00041465 GAITER 8699890005 ADHESIVE X00E50200664/76 PLUG-IN BOARD X00E50208847 PLUG-IN BOARD 5255380580 MEMORY MODULE X53220200002 SEALING SLEEVE 0020922801 FUEL FILTER SPIN-ON X00028017 GASKET X53604200005 SEALING PLATE INNER X53604200004 GASKET PLATE OUTER 5321800001 OIL PUMP 0180945802 CLEANER AIR W/ADAP FTG 5241840501 LUBE OIL FULL FLOW FILTER 5320900136 PLUG-IN PIPE XP51529700006 ROTARY SEAL 5321800143 OIL SPRAY NOZZLE 5361800515 VALVE ASM OIL PRESS RELIEF 916016006202 CLAMP X51610100001 NOZZLE X51510100022 FLANGE 916016012201 CLAMP X00005363 OIL SEPARATOR 5320140022 GASKET XP51108300002 FILTER CARTRIDGE X00E50209325 LEVEL MONITOR 5360702032 FUEL LINE 5360780131 ELBOW 05132155 RING SEALING 5360780180 GASKET FOR FUEL 5369970040 SEALING RING 5360780441 RETAINER 5314770056 PLUG 05122439 SEAL 05144768 CLAMP 5362030180 GASKET X51621300033 GENERATOR X51299100019 V-RIBBED BELT 5090850160 PISTON RING F/TURBOCHARGER 5090850060 PISTON RING 0001427157 LAMELLAR RING 234110196000 PISTON RING, COMP 5090250350 BEARING BUSHING X51214200004 GASKET 5800150460 SEALING RING 5310900337 CHARGE-AIR LINE X00014782 GASKET XP51107300001 SUCTION RESTR. VALVE X51199100026 STRAINER 8699810032 CYL ROLLER BEARING 8699810033 ANGLR-CONT BALL BRG X00005852 PROTECTIVE SLEEVE 4570530001 INLET VALVE 5410530226 VALVE COLLET 3669900240 WASHER VALVE SPRING 5320530020 VALVE SPRING 5500511710 CAMSHAFT BEARING 8699970498 SEALING RING 0031845201 OIL FILTER SPIN-ON 0031845301 OIL FILTER SPIN-ON 5320700246 RELIEF VALVE 0009953502 CLAMP X00028031 GASKET 5360900250 FUEL DELIVERY PUMP X00E50201022 GOVERNOR 8692040113 WASHER 8692040115 WASHER 8699970497 SEALING RING X00028154 SEALING RING 8699970499 RADIAL-LIP SHFT SEAL XP52229700007 TRACK RING XP51529700005 O-RING XP51529700004 ROTARY SEAL X00017269 IMPELLER 50773 SILCONE RUBBER LOCTI 5350980065 SEALING RING 5320980080 GASKET 700429460001 O-RING 40041 PASTE MOLYKOTE G-N-PLUS 0000943268 INDICATOR AIR FILTER RESTRISTER 5360900001 AIR FILTER 5410180233 DIAPHRAGM F OIL SEPARATOR 5410100163 OIL SEPARATOR 0005355303 LEVEL MONITOR 0005355103 LEVEL MONITOR 0005356430 TEMPERATURE SENSOR 0035352931 PRESSURE SENSOR 5205304531 PRESSURE SENSOR 0035351731 PRESSURE SENSOR 0035352731 PRESSURE SENSOR 0035352531 PRESSURE SENSOR 0005357933 SPEED SENSOR 0005358233 SPEED SENSOR X00011800 WIRING HARNESS FOR SENSO X00012160 WIRING HARNESS TO INJECTOR 0000180680 GASKET 700429540000 O-RING 5090251301 COMPRESSOR WHEEL XT1310100012 MAGNETIC NUT 5090200071 MAGNETIC NUT 5090250141 RETAINING RING X00010425 WASHER 5090200512 THRUST BEARING X00010421 WASHER X00003277 BEARING BUSHING 700429108000 O-RING 700429126000 O-RING 0020921901 FUEL FILTER SPIN-ON X00023888 SEALING WASHER X00009196 DAMPER RING FOR INJECTOR X00005152 INJECTOR 5320100130 CYLINDER HEAD COVER 5410530532 VALVE SEAT INSERT EXHAUST 5410532730 VALVE GUIDE 5410532131 VALVE SEAT INSERT INLET 5410530225 VALVE SPRNG RETAINER 5410500227 EXHAUST VALVE 5410501336 ROCKER SHAFT SUPPORT X00004882 CYLINDER HEAD GASKET 5419900501 12-POINT HEAD SCREW 5410380250 CONROD BUSHING 5360330262 THRUST WASHER 5410330605 CRANKSHAFT BEARING SIZE 0-0 5410337101 CRANKSHAFT BEARING SIZE 0-0 5320110027 RING 5320110110 CYLINDER LINER 8800110159 SEALING RING
PART NUMBER 5090250350
ENGINE TYPE MTU 2000 ENGINE
DESCRIPTION BEARING BUSHING
DIMENSIONS N/A
UNIT WEIGHT 0.024 KG
HS CODE 84833080
NATO-VERS.-NR. N/A
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Part details
  • original parts

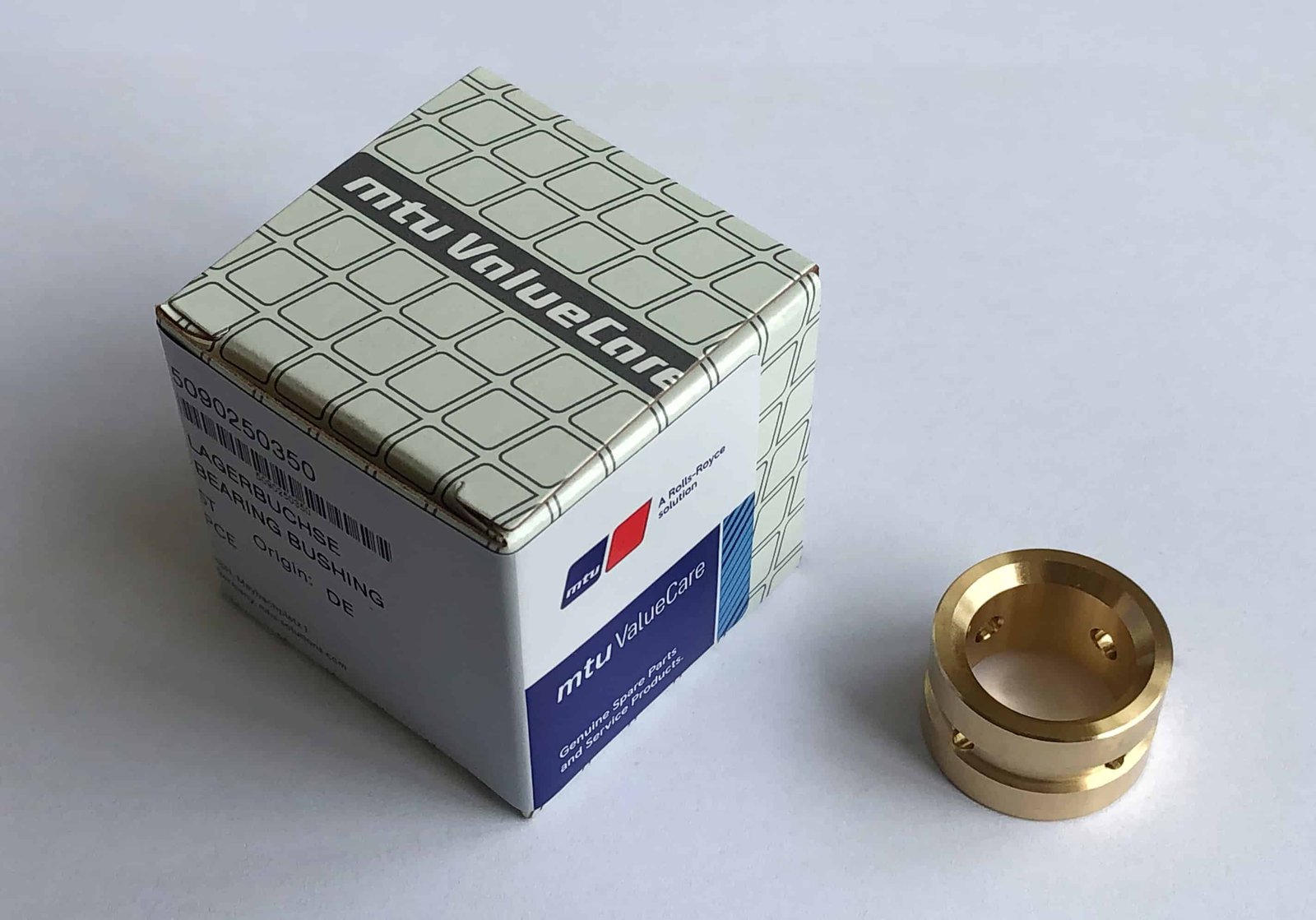

MTU 5090250350 ZR125 TURBOCHARGER BEARING BUSHING

MTU 5090250350 ZR125 TURBOCHARGER Technical Engineering Exploded View MTU 5090250350 ZR125 TURBOCHARGER BEARING BUSHING

MTU 5090250350 ZR125 TURBOCHARGER BEARING BUSHING

C/N Description Part-Number Qty
05 O-RING 700429126000 002
10 O-RING 700429108000 001
15 O-RING 700429200002 001
20 BEARING HOUSING X00008050 001
25 HEAT SHIELD 5090810803 001
30 SNAP RING 5099940041 003
35 WASHER 5090250176 001
40 BEARING BUSHING X00003277 001
41 BEARING BUSHING 5090250350 001
45 TURBINE WHEEL X00005432 001
50 WASHER X00010421 001
55 THRUST BEARING 5090200512 001
60 WASHER X00010425 001
65 PLATE 700425000049 001
70 GROOVED PIN 001476003017 002
80 SCREW 000000000895 003
85 RETAINING RING 5090250141 001
90 WASHER 200125008400 003
95 RING CARRIER X00010415 001
100 PISTON RING 5090850060 002
105 PISTON RING 5090850160 001
110 COMPRESSOR WHEEL 5090251301 001
115 NUT 5090200071 001
120 COMPRESSOR HOUSING X00003306 001
121 THREADED BUSHING 394387/1 002
122 PLUG 000908022001 003
123 SEALING RING 007603022105 005
130 CLAMP 0009953502 001
135 TURBINE HOUSING 5090817001 001
145 CLAMP 0009951502 001
155 GAITER 5320980082 001
160 CLAMP 000000000676 001

5090250350 SUPERSEDED PART AND EFFECTIVE DATE

5090250350 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 5090250350 5090250050 N/A
02 5090250350 5090250350 1900/01/01

MTU 2000 Diesel Engine Models & Specifications

MTU 2000 M96 Family

MTU 2000 Diesel Engine Models & Specifications

Make Rated power kW Speed rpm Bore/stroke mm (in)
8V 2000 M72 720 2250 135/156 (5.3/6.1)
10V 2000 M72 900 2250 135/156 (5.3/6.1)
12V 2000 M93 1340 2450 135/156 (5.3/6.1)
16V 2000 M93 1790 2450 135/156 (5.3/6.1)
12V 2000 M92 1220 2450 135/156 (5.3/6.1)
16V 2000 M92 1630 2450 135/156 (5.3/6.1)
12V 2000 M72 1080 2250 135/156 (5.3/6.1)
16V 2000 M72 1440 2250 135/156 (5.3/6.1)
8V 2000 M94 932 2450 135/156 (5.3/6.1)
8V 2000 M84 810 2450 135/156 (5.3/6.1)
8V 2000 M84L 895 2450 135/156 (5.3/6.1)
12V 2000 M61 600 1800 130/150 (5.1/5.9)
16V 2000 M61 800 1800 130/150 (5.1/5.9)
8V 2000 M61 400 1800 130/150 (5.1/5.9)
10V 2000 M86 1015 2450 135/156 (5.3/6.1)
12V 2000 M86 1268 2450 135/156 (5.3/6.1)
16V 2000 M86 1630 2450 135/156 (5.3/6.1)
10V 2000 M96 1120 2450 135/156 (5.3/6.1)
