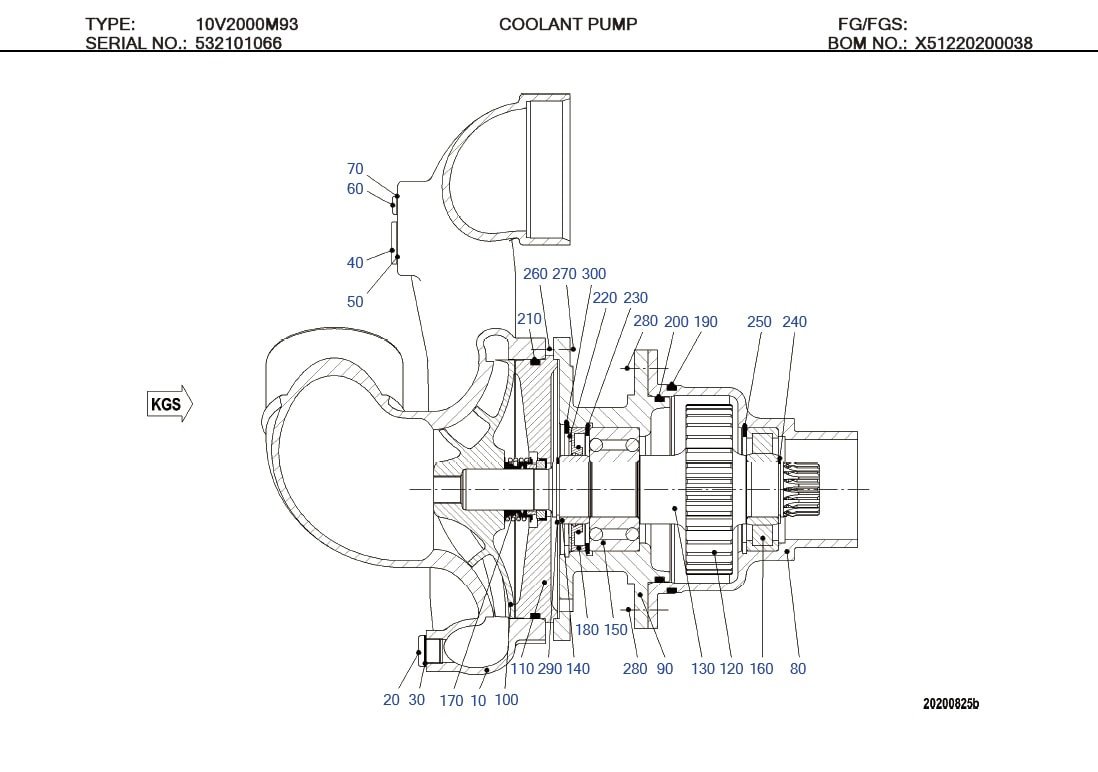

C/N | Description | Part-Number | Qty |
---|---|---|---|
10 | HOUSING | Z=BGE190L-MTUGD01 | 001 |
20 | PLUG | 000908018008 | 001 |
30 | WASHER A COP | 007603018101 | 001 |
40 | PLUG | XP52229700001 | 001 |
50 | SEALING RING | XP52229700002 | 001 |
60 | PLUG | X00032037 | 001 |
70 | SEALING RING | X00032041 | 001 |
80 | BEARING HOUSING | X00023121 | 001 |
90 | BEARING HOUSING | X00023184 | 001 |
100 | IMPELLER | XP51229700002 | 001 |
110 | INTERMEDIATE MEMBER | XP52229700006 | 001 |
120 | GEAR | X00017270 | 001 |
130 | COOLANT PUMP SHAFT | X00023195 | 001 |
140 | TRACK RING | XP52229700007 | 001 |
150 | ANGLR-CONT BALL BRG | 8699810033 | 001 |
160 | CYL ROLLER BEARING | 8699810032 | 001 |

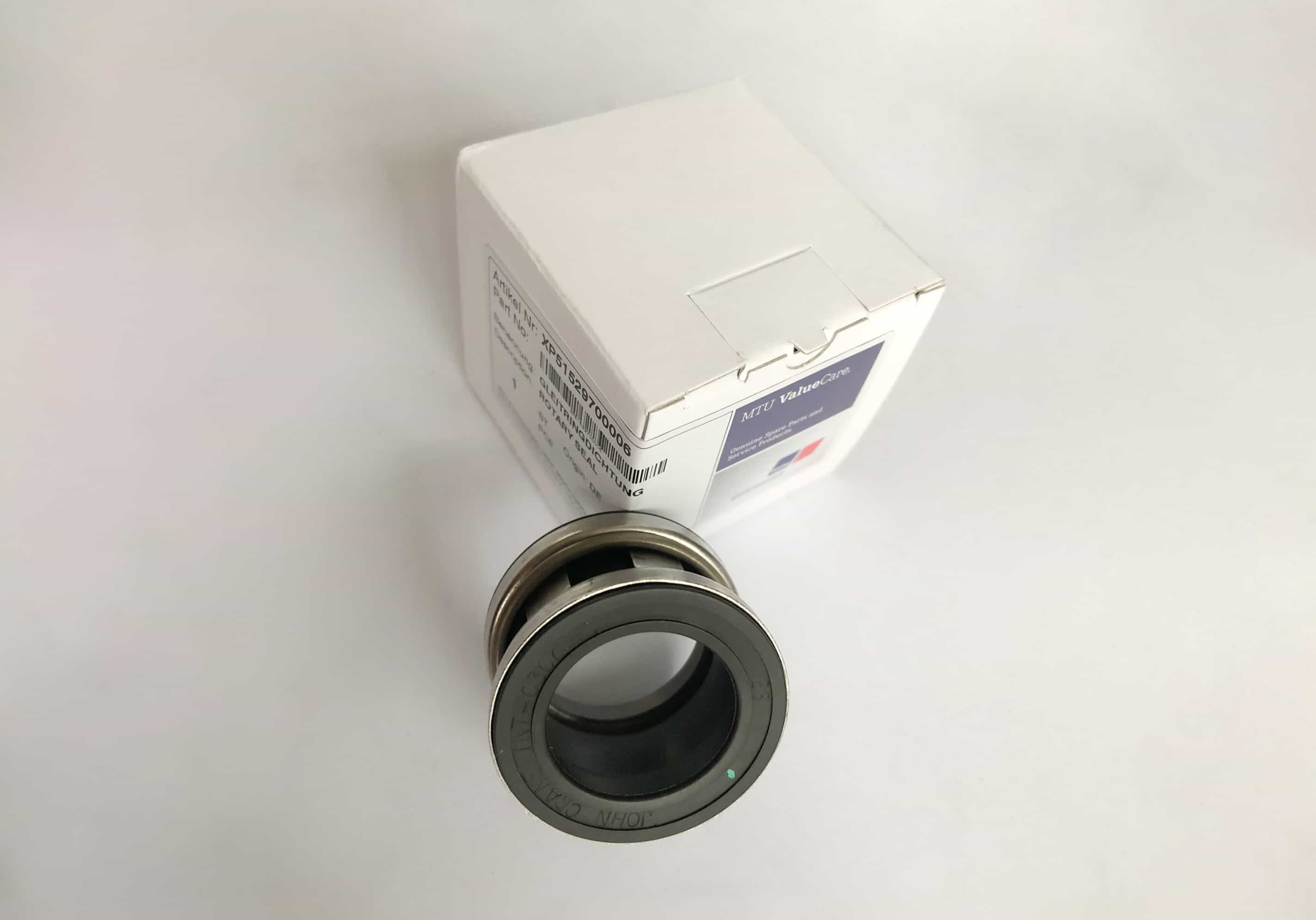

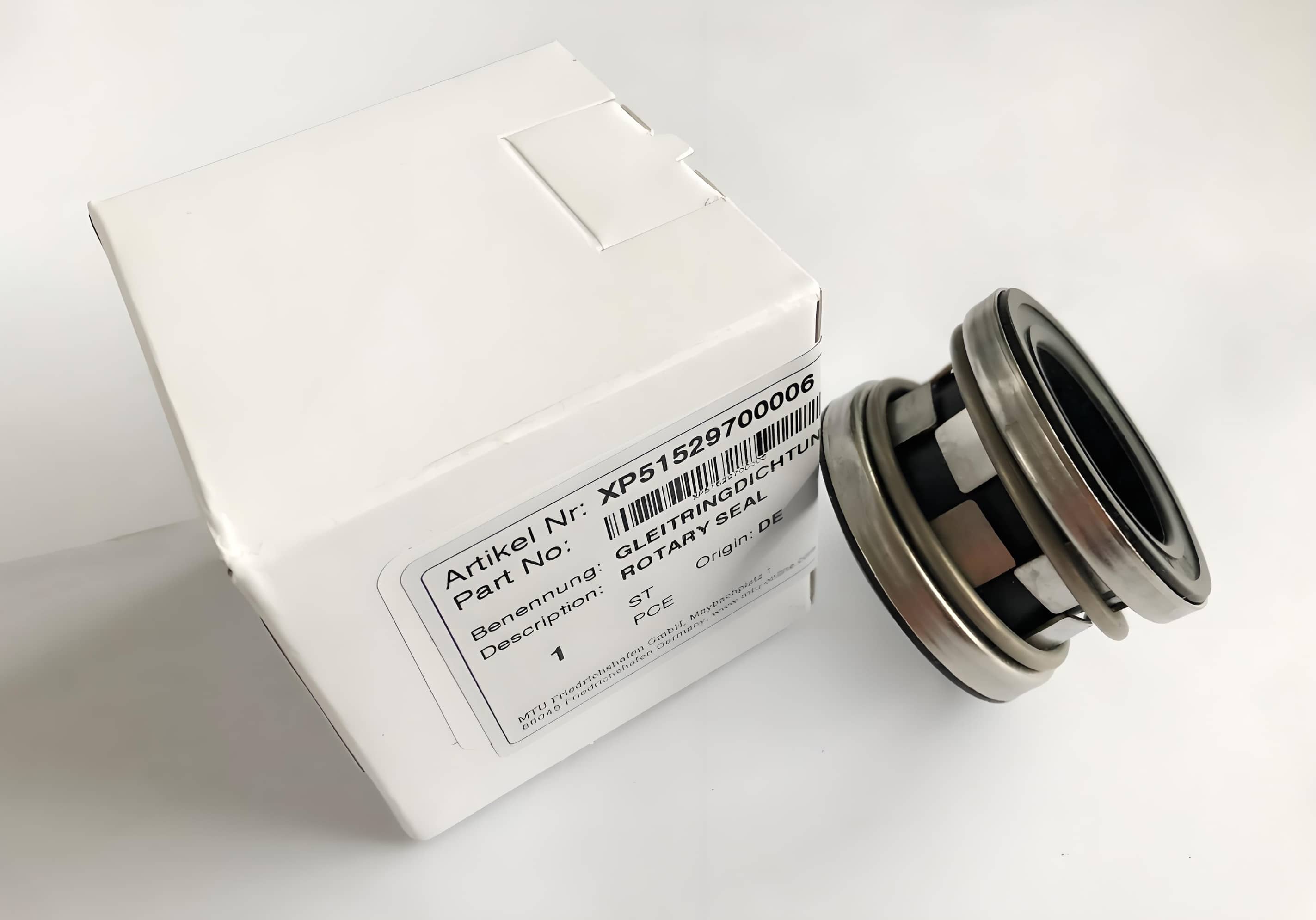

170 | ROTARY SEAL | XP51529700006 | 001 |
180 | RADIAL-LIP SHFT SEAL | 8699970499 | 001 |
190 | SEALING RING | X00028154 | 001 |
200 | SEALING RING | 8699970497 | 001 |
210 | SEALING RING | 8699970498 | 001 |
220 | WASHER | 8692040115 | 001 |
230 | RING | Z=ITZ090 | 001 |
240 | SNAP RING | 000471040000 | 002 |
250 | SNAP RING | 000472090000 | 001 |
260 | STUD | 000939008074 | 006 |
270 | NUT HEX | 000934008008 | 006 |
280 | BOLT HEX | 000933006175 | 002 |
290 | WASHER | 8692040113 | 001 |
300 | SNAP RING | 000472095000 | 001 |
Make | Rated power kW | Speed rpm | Bore/stroke mm (in) |
---|---|---|---|
8V 2000 M72 | 720 | 2250 | 135/156 (5.3/6.1) |
10V 2000 M72 | 900 | 2250 | 135/156 (5.3/6.1) |
12V 2000 M93 | 1340 | 2450 | 135/156 (5.3/6.1) |
16V 2000 M93 | 1790 | 2450 | 135/156 (5.3/6.1) |
12V 2000 M92 | 1220 | 2450 | 135/156 (5.3/6.1) |
16V 2000 M92 | 1630 | 2450 | 135/156 (5.3/6.1) |
12V 2000 M72 | 1080 | 2250 | 135/156 (5.3/6.1) |
16V 2000 M72 | 1440 | 2250 | 135/156 (5.3/6.1) |
8V 2000 M94 | 932 | 2450 | 135/156 (5.3/6.1) |
8V 2000 M84 | 810 | 2450 | 135/156 (5.3/6.1) |
8V 2000 M84L | 895 | 2450 | 135/156 (5.3/6.1) |
12V 2000 M61 | 600 | 1800 | 130/150 (5.1/5.9) |
16V 2000 M61 | 800 | 1800 | 130/150 (5.1/5.9) |
8V 2000 M61 | 400 | 1800 | 130/150 (5.1/5.9) |
10V 2000 M86 | 1015 | 2450 | 135/156 (5.3/6.1) |
12V 2000 M86 | 1268 | 2450 | 135/156 (5.3/6.1) |
16V 2000 M86 | 1630 | 2450 | 135/156 (5.3/6.1) |
10V 2000 M96 | 1120 | 2450 | 135/156 (5.3/6.1) |
