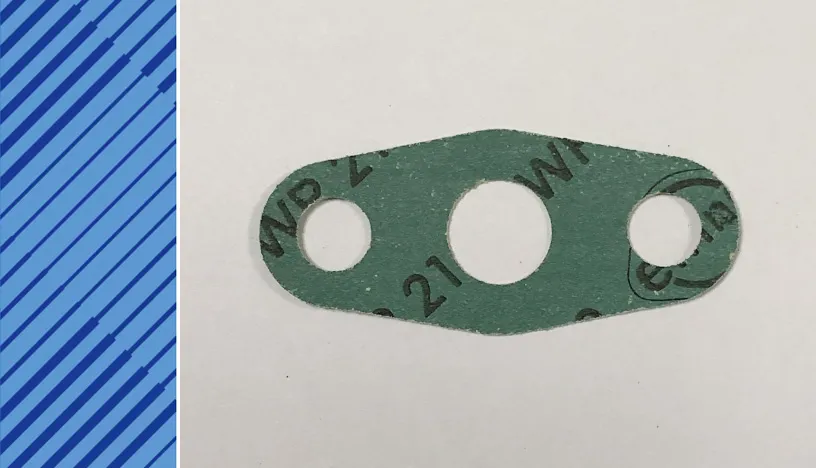

| PART NUMBER | 4421870180 |
| ENGINE TYPE | MTU 2000 ENGINE |
| DESCRIPTION | GASKET |
| DIMENSIONS | N/A |
| UNIT WEIGHT | 0.001 KG |
| HS CODE | 68030090 |
| NATO-VERS.-NR. | 5330123393566 |
| C/N | Description | Part-Number | Qty |
|---|---|---|---|

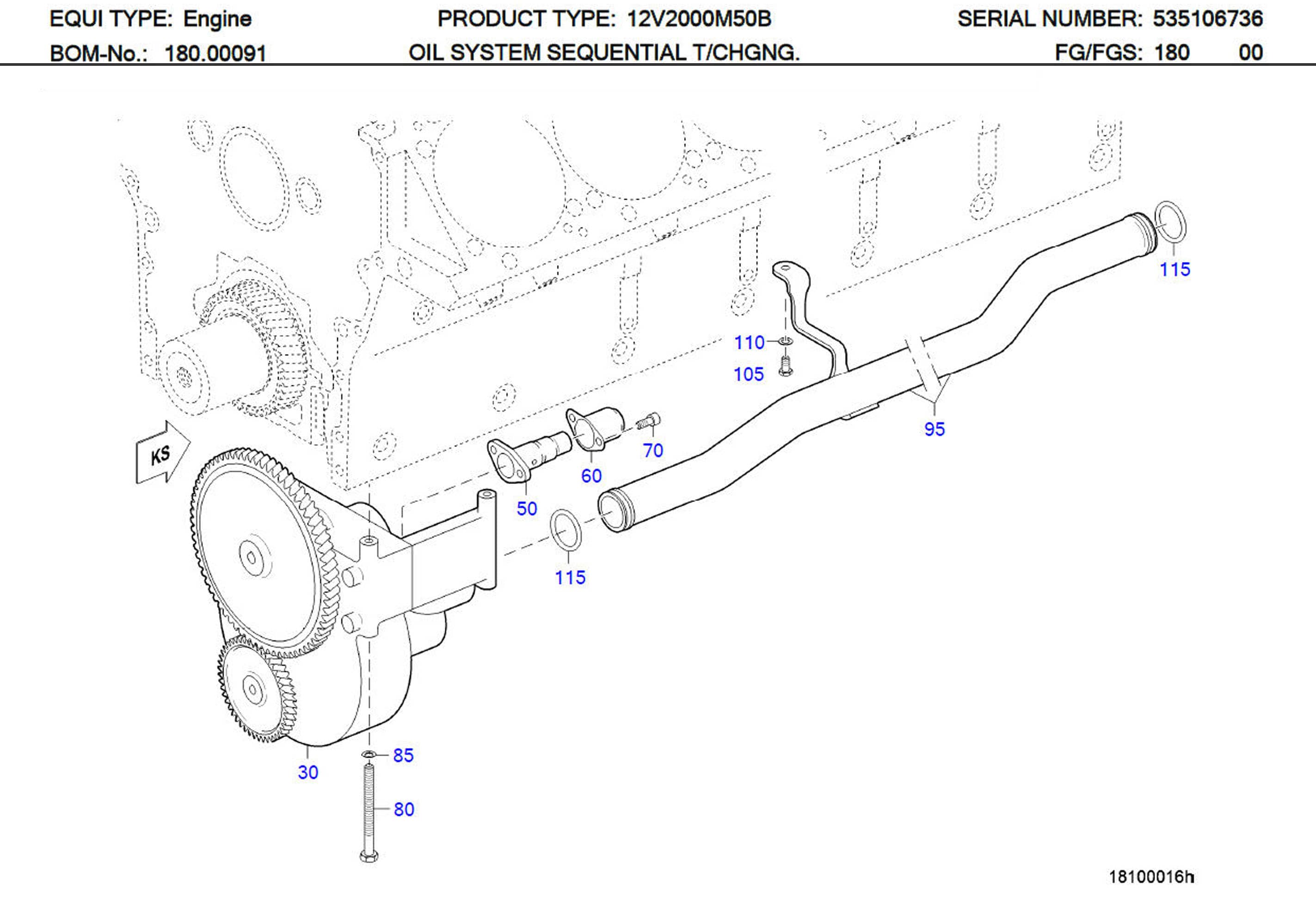

| 30 | PUMP ASM OIL | 0021805101 | 001 |
| 50 | VALVE ASM OIL PRESS RELIEF 8.5 BAR | 5361800515 | 002 |
| 60 | CAP | 4049885235 | 002 |
| 70 | BOLT HEX SOC HD | 000912008006 | 004 |
| 80 | HEX SCREW | 000931010154 | 003 |
| 85 | WASHER | 000125010524 | 003 |
| 95 | OIL TUBE | 5351800620 | 001 |
| 105 | BOLT HEX A3C S2000/4000 | 304017008077 | 001 |
| 110 | WASHER | 000125008427 | 001 |
| 115 | O-RING | 700429037001 | 002 |
| 125 | ADAPTER OIL SUPPLY | 5361870145 | 001 |
| 135 | BOLT HEX A3C | 304017008083 | 003 |
| 145 | GASKET | 5361870280 | 001 |
| 150 | ELBOW | 5361800158 | 001 |
| 160 | BOLT HEX | 000933010144 | 002 |
| 165 | WASHER | 007349010002 | 002 |
| 170 | O-RING | 700429054000 | 001 |
| 175 | O-RING | 700429050006 | 001 |
| 185 | ELBOW | 5361870224 | 001 |
| 190 | PIPE PLUG-IN | 735078040008 | 001 |

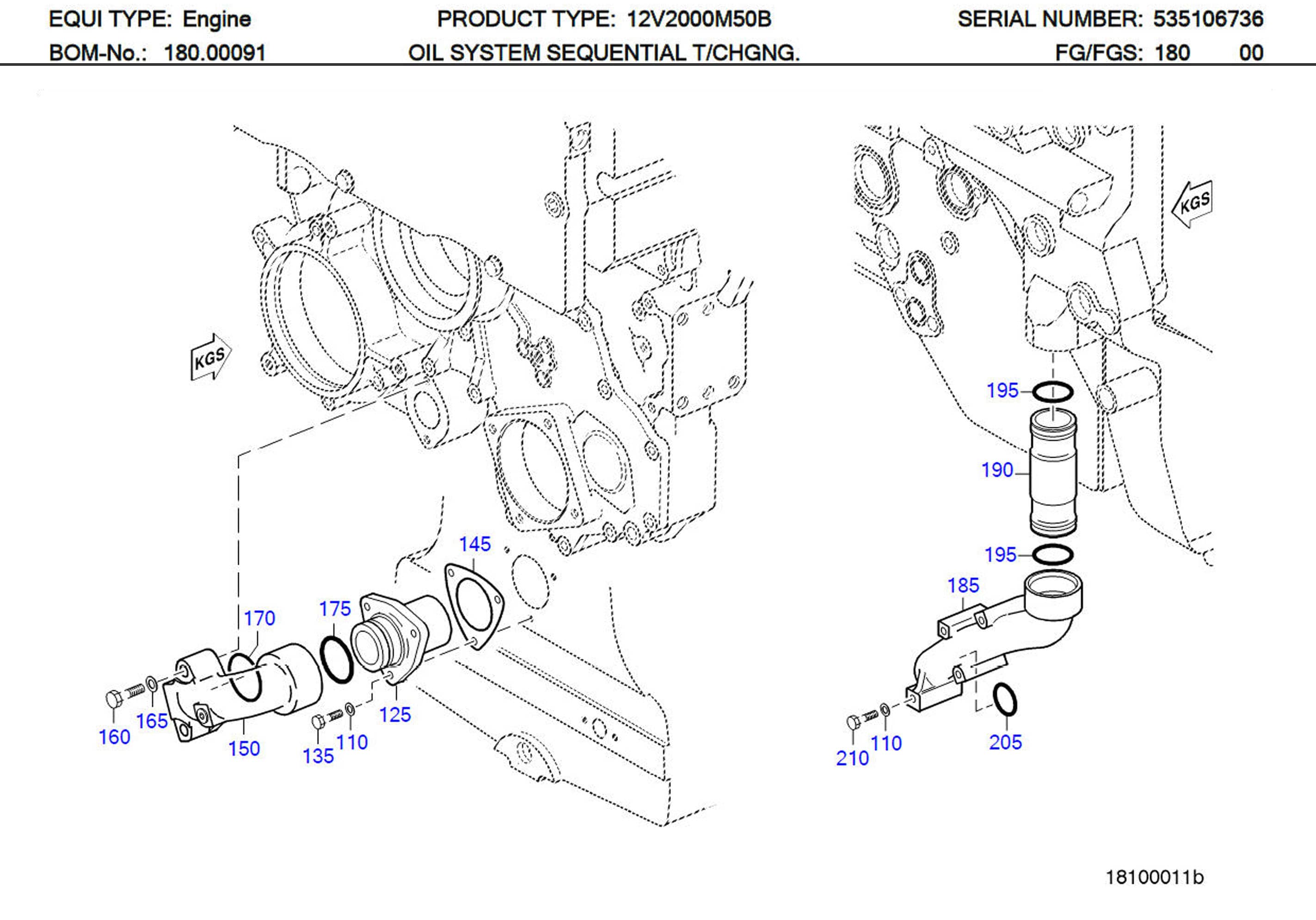

| 195 | O-RING | 700429045000 | 002 |
| 205 | O-RING | 700429038000 | 001 |
| 210 | BOLT HEX A3C S2000/4000 | 304014008032 | 004 |
| 225 | HOUSING | 5361800034 | 001 |
| 235 | VALVE SLIDE | 5361800167 | 001 |
| 240 | O-RING | 700429060002 | 001 |
| 245 | LEVER | X00027276 | 001 |
| 250 | BOLT HEX S2000/4000 | 000933010180 | 001 |

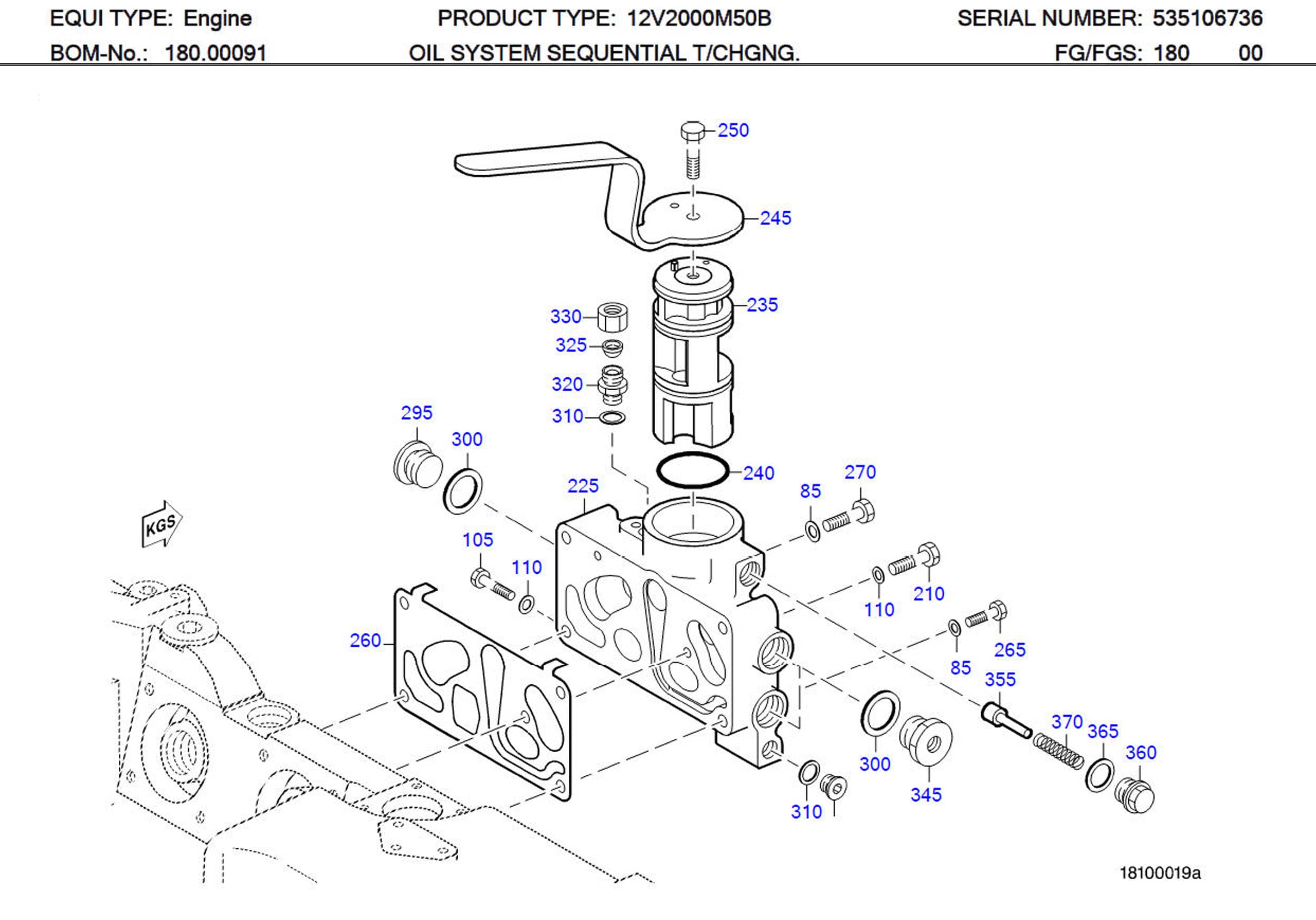

| 260 | GASKET | 5361840680 | 001 |
| 265 | BOLT HEX | 000931010236 | 003 |
| 270 | BOLT HEX | 000931010292 | 001 |
| 295 | THREAD PLUG | 000908030002 | 001 |
| 300 | COPPER SEALING RING | 007603030101 | 001 |
| 305 | THREADED PLUG | 000908016001 | 001 |
| 310 | COPPER SEALING RING | 007603016105 | 001 |
| 320 | UNION | 915013010001 | 001 |
| 325 | CONE SEALING 12 | 915005010000 | 001 |
| 330 | NUT | 915001010004 | 001 |
| 345 | BUSHING THREADED | 5369970116 | 002 |
| 355 | STUD BALL | 5369910220 | 001 |
| 360 | PLUG | 5361840156 | 001 |
| 365 | COPPER SEALING RING | 007603022102 | 001 |
| 370 | SPRING PRESSURE | 002098001022 | 001 |

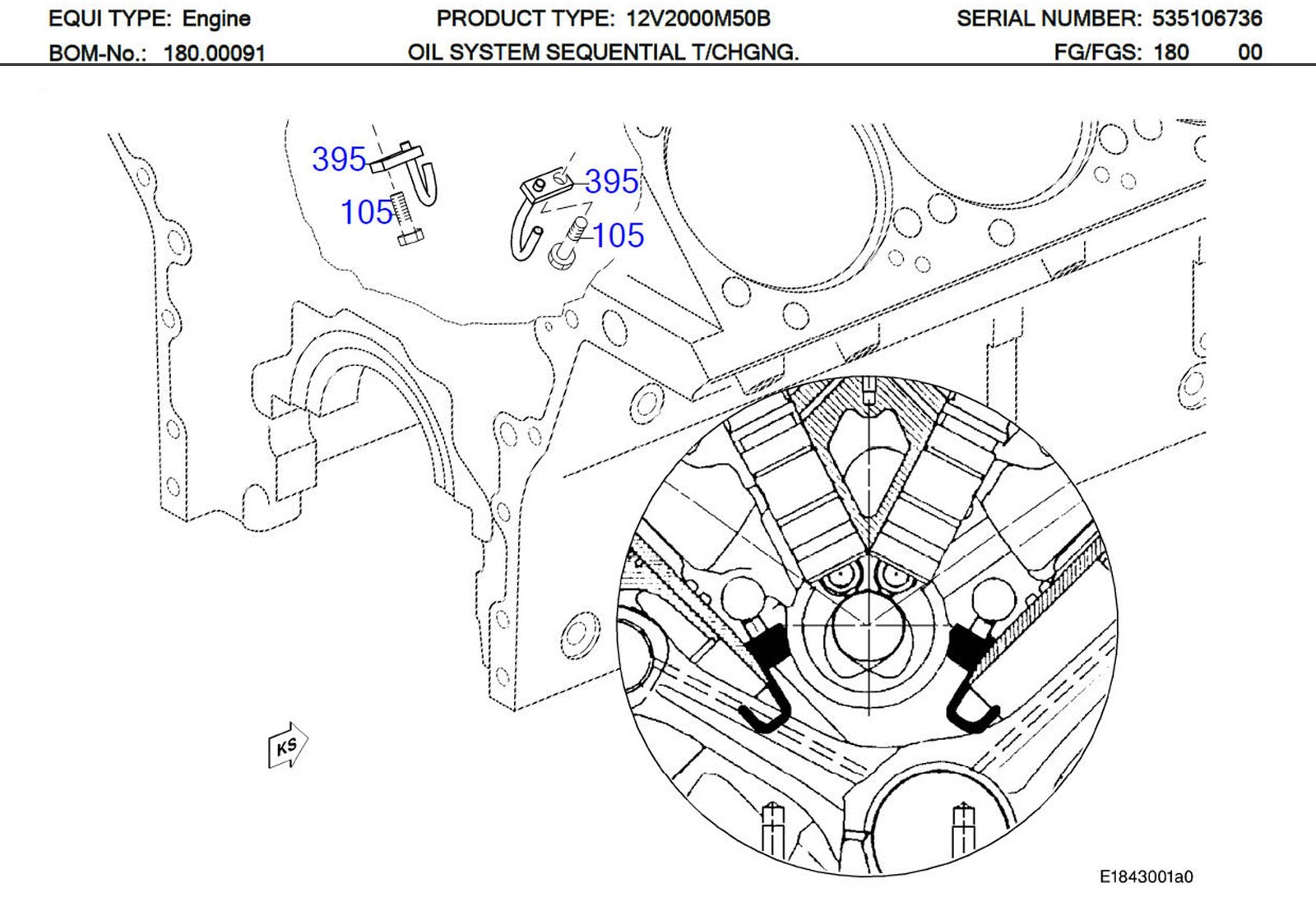

| 395 | NOZZLE ASM | 5411800743 | 012 |

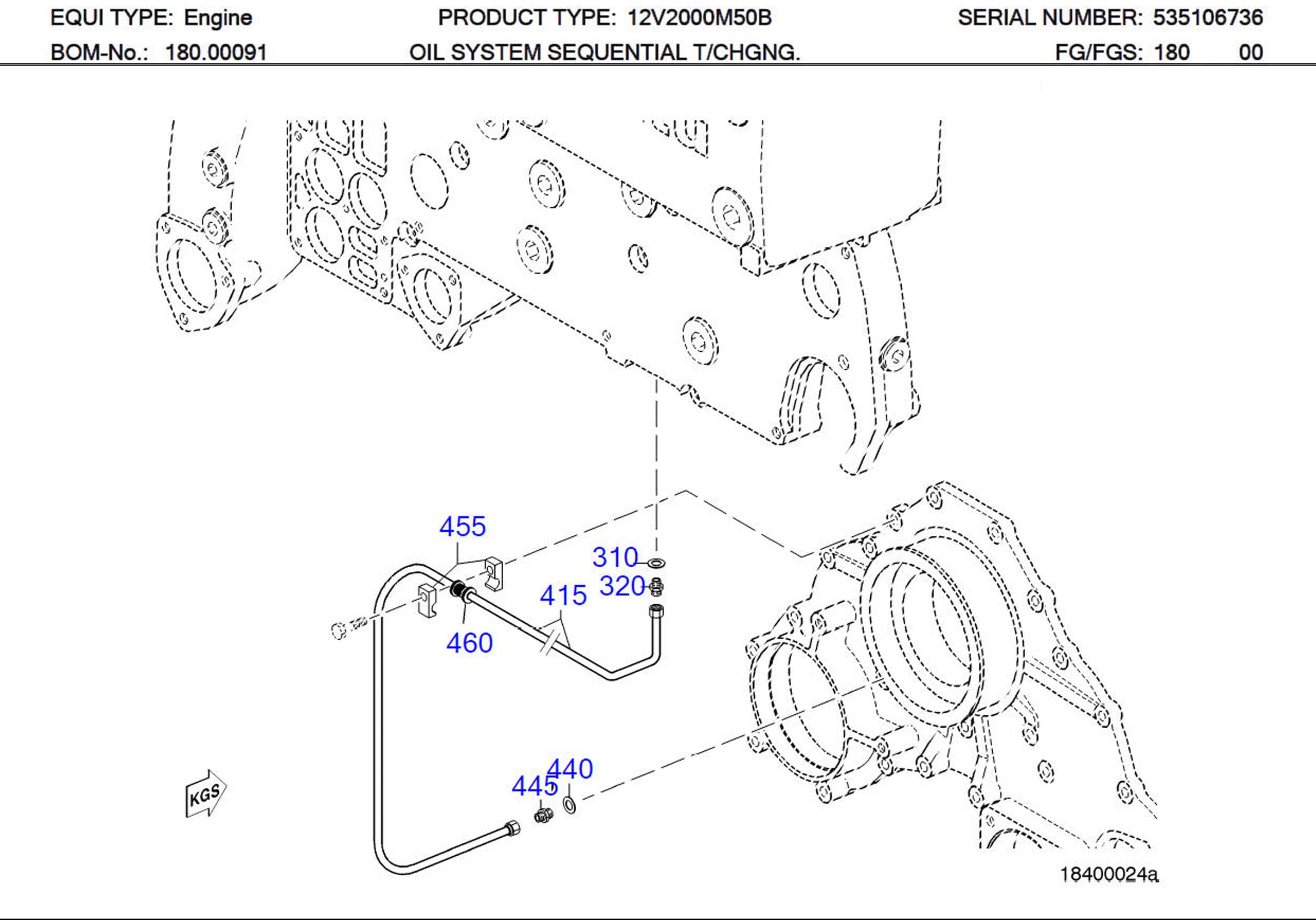

| 415 | OIL LINE | 5361800119 | 001 |
| 440 | WASHER A COP | 007603014106 | 001 |
| 445 | SCREW NECK | 915013008002 | 001 |
| 455 | CLAMP HALF TUBE 1/1 D11-15 | 700325015110 | 002 |
| 460 | GROMMET | 700327010000 | 001 |
| 485 | TUBE ASM OIL LINE | 5351800819 | 001 |
| 490 | FITTING TEE | 5569970674 | 001 |
| 500 | BOLT BANJO A 8 | 915011008101 | 001 |
| 505 | COPPER SEALING RING | 007603014102 | 002 |
| 525 | OIL LINE | 5361802619 | 001 |
| 535 | TUBE ASM OIL LINE | 5351800919 | 001 |
| 545 | TUBE ASM OIL LINE | 5351801019 | 001 |

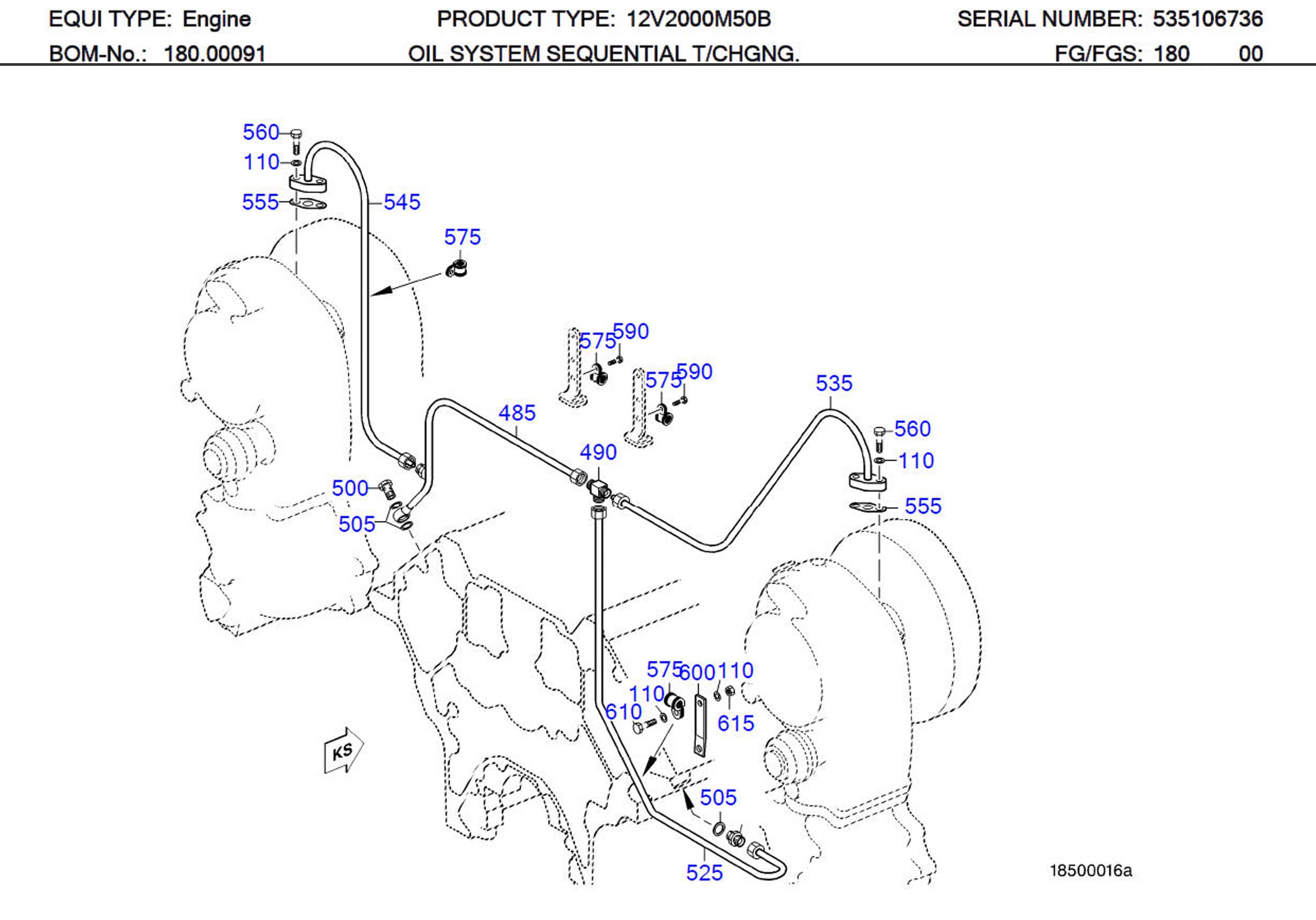

| 555 | GASKET | 4421870180 | 002 |
| 560 | BOLT HEX SOC HD CAP | 000912008011 | 004 |
| 575 | CLAMP | 916016010203 | 001 |
| 590 | BOLT HEX | 304017008079 | 002 |
| 600 | BRACKET REWORKED | 5561531140 | 001 |
| 610 | HEX BOLT | 304017008081 | 001 |
| 615 | NUT HEX | 000934008008 | 001 |
| 630 | TUBE OIL RETURN LINE | 5351800722 | 001 |
| 635 | TUBE ASM TURBO DRAIN LB | 531SK0928 | 001 |
| 645 | TUBE OIL LINE RETURN | 5351800622 | 001 |
| 650 | TUBE ASM TURBO DRAIN RB | 531SK0929 | 001 |
| 660 | GASKET | 5061870080 | 002 |
| 665 | BOLT HEX | 000933008114 | 004 |
| 680 | BOLT HEX SOC HD | 000912008019 | 004 |
| 685 | WASHER | 200433008400 | 004 |
| 690 | GASKET | 271511030000 | 002 |
| 700 | SLEEVE RUBBER | 700368022001 | 002 |
| 705 | CLAMP | 000000000667 | 004 |

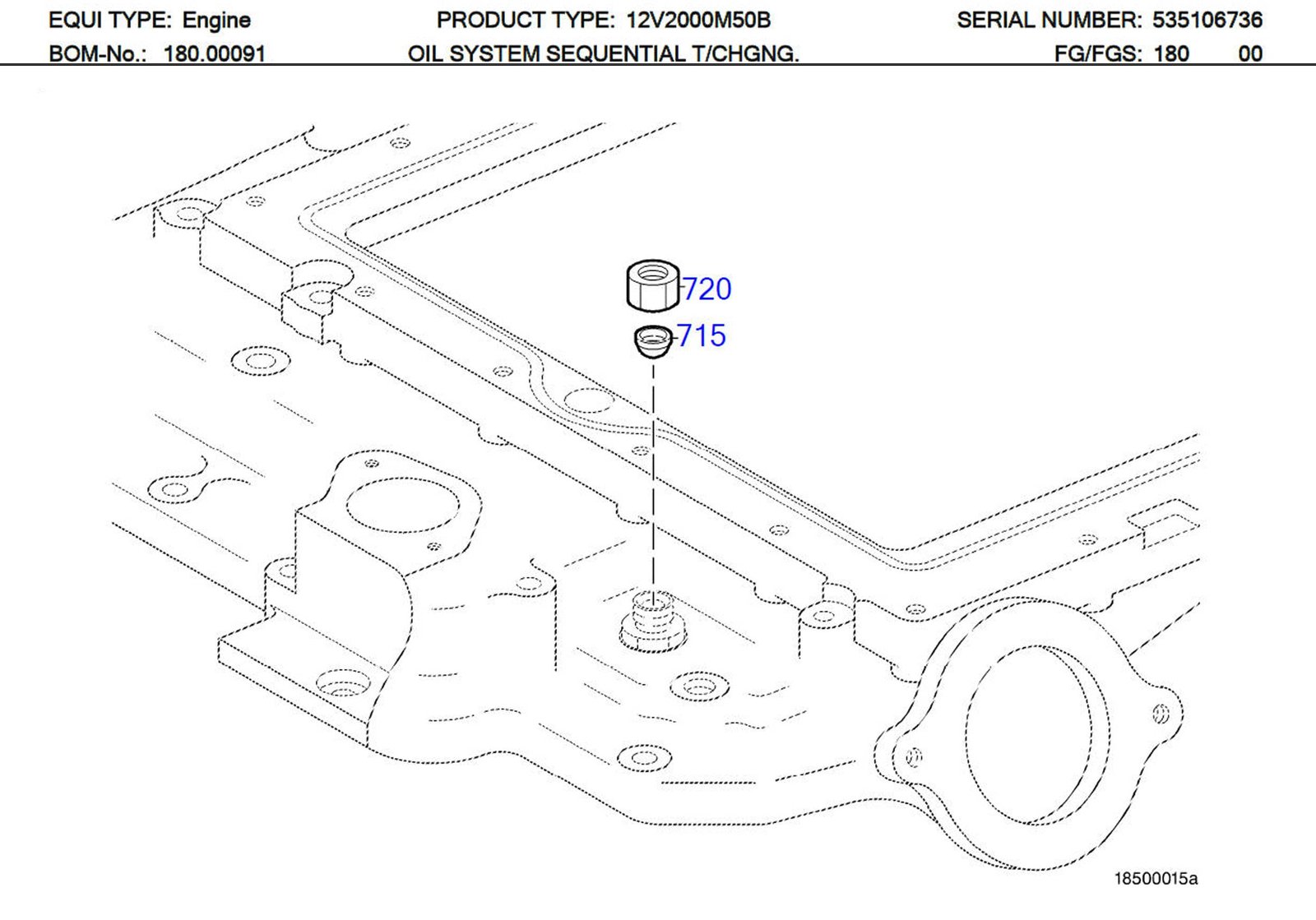

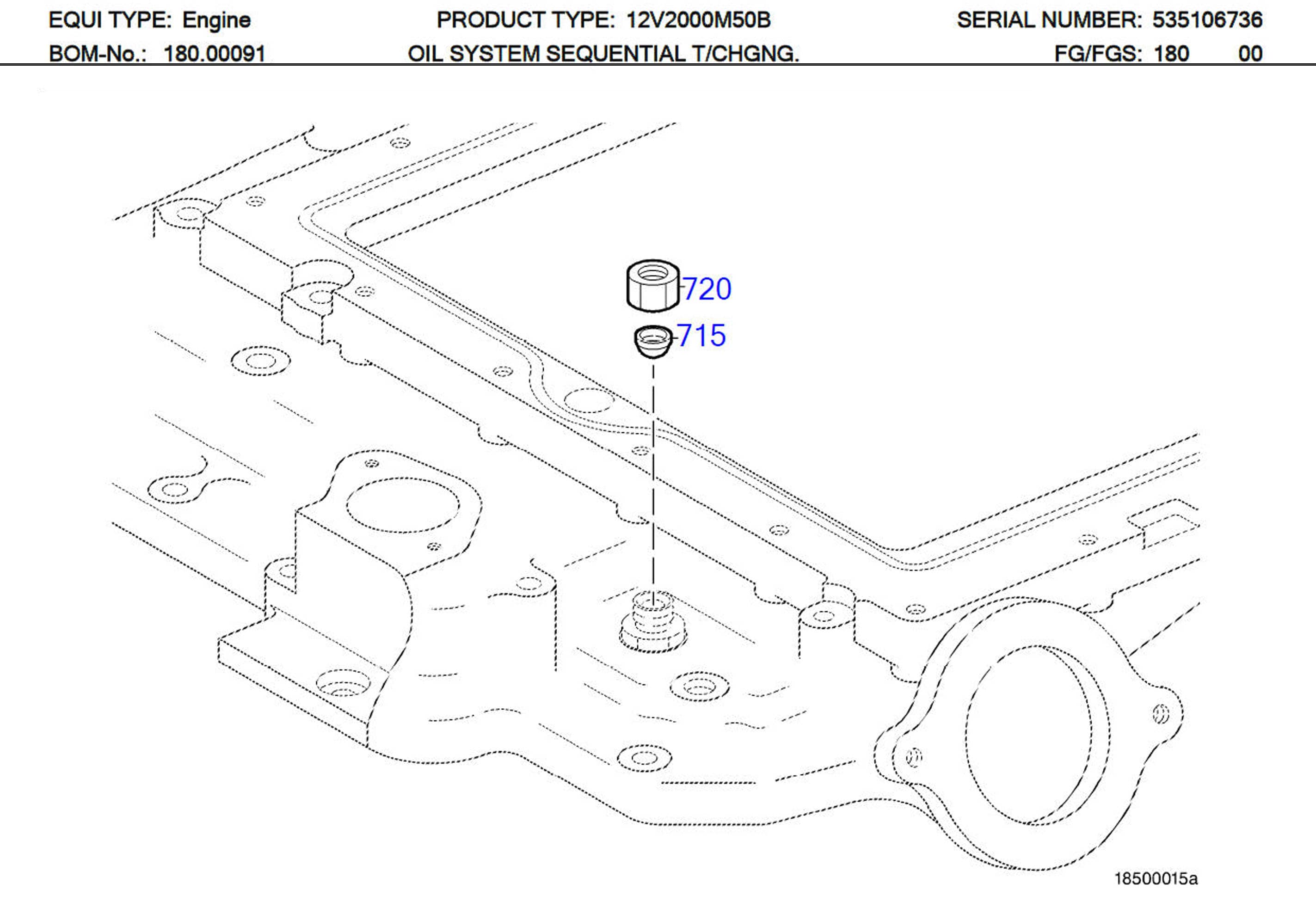

| 715 | CONE SEALING 10 | 915005008001 | 001 |
| 720 | NUT | 915001008003 | 001 |
| C/N | New Part Number | Superseded Part Number | Valid From Date |
|---|---|---|---|
| 01 | 4421870180 | 6171870180 | N/A |
| 02 | 4421870180 | 4421870180 | 1991/09/01 |
| Make | Rated power kW | Speed rpm | Bore/stroke mm (in) |
|---|---|---|---|
| 8V 2000 M72 | 720 | 2250 | 135/156 (5.3/6.1) |
| 10V 2000 M72 | 900 | 2250 | 135/156 (5.3/6.1) |
| 12V 2000 M93 | 1340 | 2450 | 135/156 (5.3/6.1) |
| 16V 2000 M93 | 1790 | 2450 | 135/156 (5.3/6.1) |
| 12V 2000 M92 | 1220 | 2450 | 135/156 (5.3/6.1) |
| 16V 2000 M92 | 1630 | 2450 | 135/156 (5.3/6.1) |
| 12V 2000 M72 | 1080 | 2250 | 135/156 (5.3/6.1) |
| 16V 2000 M72 | 1440 | 2250 | 135/156 (5.3/6.1) |
| 8V 2000 M94 | 932 | 2450 | 135/156 (5.3/6.1) |
| 8V 2000 M84 | 810 | 2450 | 135/156 (5.3/6.1) |
| 8V 2000 M84L | 895 | 2450 | 135/156 (5.3/6.1) |
| 12V 2000 M61 | 600 | 1800 | 130/150 (5.1/5.9) |
| 16V 2000 M61 | 800 | 1800 | 130/150 (5.1/5.9) |
| 8V 2000 M61 | 400 | 1800 | 130/150 (5.1/5.9) |
| 10V 2000 M86 | 1015 | 2450 | 135/156 (5.3/6.1) |
| 12V 2000 M86 | 1268 | 2450 | 135/156 (5.3/6.1) |
| 16V 2000 M86 | 1630 | 2450 | 135/156 (5.3/6.1) |
| 10V 2000 M96 | 1120 | 2450 | 135/156 (5.3/6.1) |
