| PART NUMBER | 5311550215 |
| ENGINE TYPE | MTU 2000 ENGINE |
| DESCRIPTION | BELT PULLEY FOR GENERATOR |
| DIMENSIONS | N/A |
| UNIT WEIGHT | 0.995 KG |
| HS CODE | 84835020 |
| NATO-VERS.-NR. | 3020123860099 |

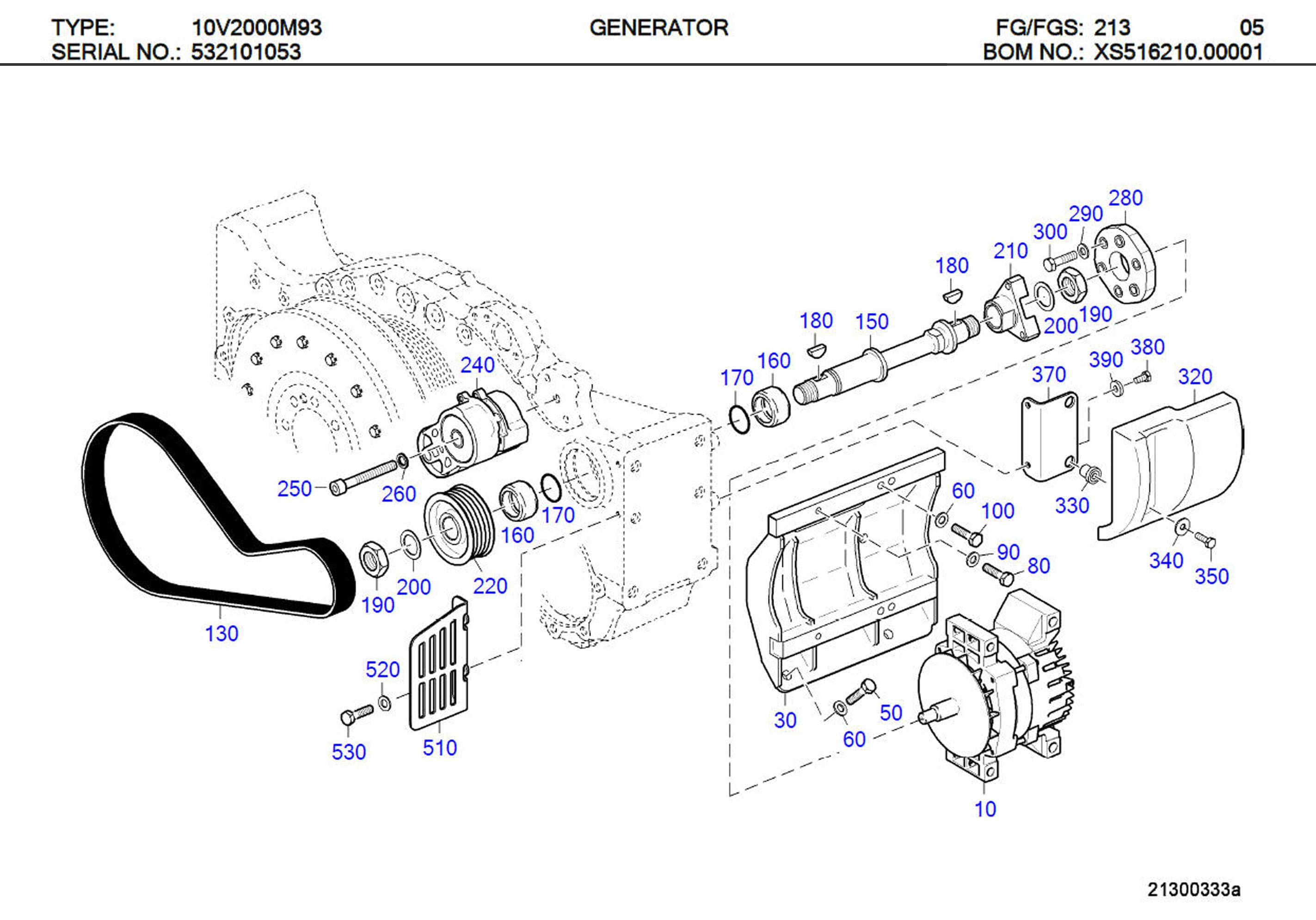

| C/N | Description | Part-Number | Qty |
|---|---|---|---|
| 10 | GENERATOR | X51621300004 | 001 |
| 30 | SUPPORT | X51521300002 | 001 |
| 50 | BOLT HEX | 000933012056 | 004 |
| 60 | WASHER | 000125013012 | 006 |
| 80 | BOLT HEX | 000931010315 | 002 |
| 90 | WASHER | 007349010002 | 002 |
| 100 | BOLT HEX | 000931012148 | 002 |
| 115 | WASHER | 007349013002 | 002 |
| 130 | RIBBED BELT | 0159974492 | 001 |
| 150 | SHAFT | 5321550403 | 001 |
| 160 | SPACER SLEEVE | X53202700002 | 002 |
| 170 | O-RING | 700429034000 | 002 |
| 180 | WOODRUFF KEY | 006888008005 | 002 |
| 190 | HEX NUT | 000000002779 | 002 |
| 200 | ADJUSTING WASHER | 000988028001 | 002 |
| 210 | FLANGE | 5321550244 | 001 |
| 220 | BELT PULLEY FOR GENERATOR | 5311550215 | 001 |
| 240 | V-BELT TENSIONER | 0005590471 | 001 |
| 250 | SCREW | 000912012091 | 001 |
| 260 | ADJUSTING WASHER | 000988013001 | 001 |
| 280 | JOINT PLATE | 0004110315 | 001 |
| 290 | WASHER | 000125010524 | 006 |
| 300 | BOLT HEX A3C | 000000001039 | 006 |
| 320 | PROTECTIVE COVER | 5321500166 | 001 |
| 330 | SCREW ANCHOR | 5320980025 | 002 |
| 340 | WASHER | 009021008204 | 002 |
| 350 | BOLT HEX A3C | 304017008081 | 002 |
| 370 | RETAINER | X00008544 | 001 |
| 380 | BOLT HEX A3C S2000/4000 | 304017008077 | 002 |
| 390 | WASHER | 000125008427 | 002 |
| 510 | COVER PLATE | X00044604 | 001 |
| 520 | WASHER | 200433008400 | 002 |
| 530 | BOLT HEX SOC HD | 000912008006 | 002 |
| Make | Rated power kW | Speed rpm | Bore/stroke mm (in) |
|---|---|---|---|
| 8V 2000 M72 | 720 | 2250 | 135/156 (5.3/6.1) |
| 10V 2000 M72 | 900 | 2250 | 135/156 (5.3/6.1) |
| 12V 2000 M93 | 1340 | 2450 | 135/156 (5.3/6.1) |
| 16V 2000 M93 | 1790 | 2450 | 135/156 (5.3/6.1) |
| 12V 2000 M92 | 1220 | 2450 | 135/156 (5.3/6.1) |
| 16V 2000 M92 | 1630 | 2450 | 135/156 (5.3/6.1) |
| 12V 2000 M72 | 1080 | 2250 | 135/156 (5.3/6.1) |
| 16V 2000 M72 | 1440 | 2250 | 135/156 (5.3/6.1) |
| 8V 2000 M94 | 932 | 2450 | 135/156 (5.3/6.1) |
| 8V 2000 M84 | 810 | 2450 | 135/156 (5.3/6.1) |
| 8V 2000 M84L | 895 | 2450 | 135/156 (5.3/6.1) |
| 12V 2000 M61 | 600 | 1800 | 130/150 (5.1/5.9) |
| 16V 2000 M61 | 800 | 1800 | 130/150 (5.1/5.9) |
| 8V 2000 M61 | 400 | 1800 | 130/150 (5.1/5.9) |
| 10V 2000 M86 | 1015 | 2450 | 135/156 (5.3/6.1) |
| 12V 2000 M86 | 1268 | 2450 | 135/156 (5.3/6.1) |
| 16V 2000 M86 | 1630 | 2450 | 135/156 (5.3/6.1) |
| 10V 2000 M96 | 1120 | 2450 | 135/156 (5.3/6.1) |
